Super Precision Angular Contact Ball Bearings 7016 ACD/P4ATBTB

Brand: TFL Bearing Interchangeable: SKF 7016 ACD/P4ATBTB 80 mm × 125 mm × 66 mm Metric Open
Part number: 7016 ACD/P4ATBTB
Super Precision Angular Contact Ball Bearings 7016 ACD/P4ATBTB
In Stock
US$533.48 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia80 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia125 mm
Outer Dia Tolerance-0.004mm to 0
Width66 mm
Width Tolerance-0.2mm to 0
Ball Dia14.288 mm
Performance
PreloadLight / Class B
Dynamic Radial Load30,375 lbf
Static Radial Load39,600 lbf
Temperature Range- 30°C to 110 °C
Max Speed28,000 rpm
Characteristics
Ball Qty20
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight2.56 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

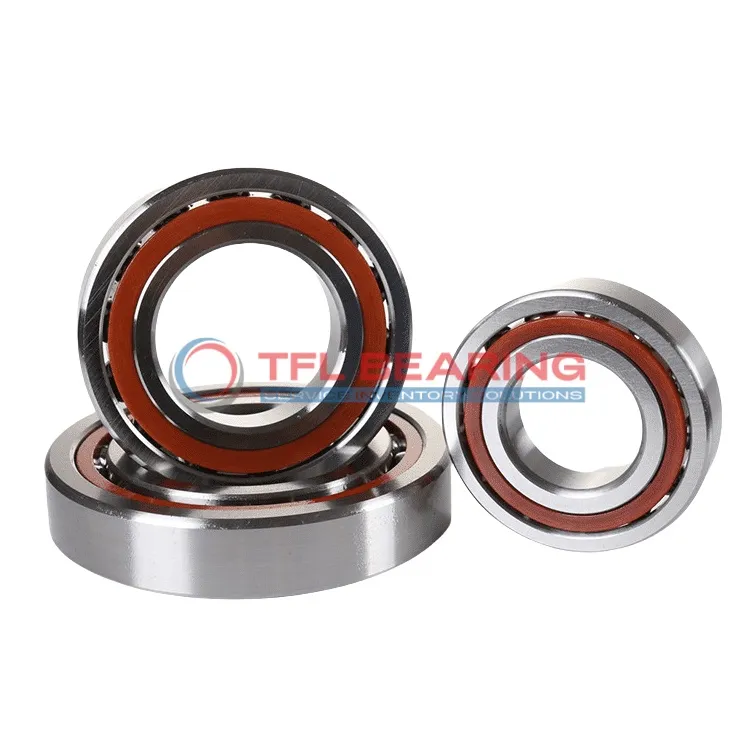

Dimension drawing · click to enlarge

Description

The 7016 ACD/P4ATBTB is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from durable chrome steel. Its 25° contact angle and light preload ensure smooth operation under radial loads up to 30375 lbf.

This set includes three matched bearings arranged in a TBT configuration, ideal for high-speed applications reaching 28000 RPM. The phenolic cage offers stability, while the open design allows for easy lubrication.

With a tight P4A tolerance class, it delivers reliable performance in temperatures from -30°C to 110°C. The 20 chrome steel balls, each 14.288mm in diameter, contribute to its precision.

Weighing 2.56kg, this bearing suits demanding machinery like spindles or CNC equipment where accuracy and speed are crucial. It’s interchangeable with SKF models for convenient replacements.

Features

How Does 7016 ACD/P4ATBTB Bearing Achieve Super Precision?

7016 ACD/P4ATBTB Bearing features a 25° contact angle, optimised for handling combined radial and axial loads with high precision.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

The matched arrangement of three bearings (TBT) enhances stability and load distribution in demanding applications.
With a maximum speed of 28,000 rpm, it delivers reliable performance in high-speed environments.

7016 ACD/P4ATBTB Bearing’s P4A tolerance class guarantees exceptional accuracy for precision machinery.
Its dynamic radial load capacity of 30,375 lbf ensures long-lasting performance under heavy loads.

Application

Industrial Uses of 7016 ACD/P4ATBTB Bearing
7016 ACD/P4ATBTB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate alignment under radial and axial loads. The matched set of three bearings provides stability in demanding industrial environments.

Where Is 7016 ACD/P4ATBTB Bearing Used?
In automotive applications, 7016 ACD/P4ATBTB Bearing supports high-speed components like wheel hubs and transmissions. Its phenolic cage and chrome steel construction offer durability and smooth operation even under heavy loads.

Optimized for Performance: 7016 ACD/P4ATBTB Bearing
For automation systems, 7016 ACD/P4ATBTB Bearing is ideal for robotic arms and CNC machines, thanks to its light preload and high-speed capabilities. The open design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where 7016 ACD/P4ATBTB Bearing Excels
In medical imaging equipment, 7016 ACD/P4ATBTB Bearing provides reliable performance with minimal vibration. Its precision engineering makes it suitable for sensitive applications where consistency is key.

Practical Applications of 7016 ACD/P4ATBTB Bearing
7016 ACD/P4ATBTB Bearing is often found in aerospace systems, where its high-speed tolerance and lightweight design are advantageous. The P4A tolerance class ensures it meets stringent industry standards.
