Super Precision Angular Contact Ball Bearings 7224 ACDGC/P4A

Brand: TFL Bearing Interchangeable: SKF 7224 ACDGC/P4A 120 mm × 215 mm × 40 mm Metric Open
Part number: 7224 ACDGC/P4A
Super Precision Angular Contact Ball Bearings 7224 ACDGC/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.004mm to 0
Width40 mm
Width Tolerance-0.2mm to 0
Ball Dia30.162 mm
Performance
PreloadModerate / Class C
Dynamic Radial Load42,750 lbf
Static Radial Load41,175 lbf
Temperature Range- 30°C to 110 °C
Max Speed10,000 rpm
Characteristics
Ball Qty15
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementAvailable
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight5.42 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

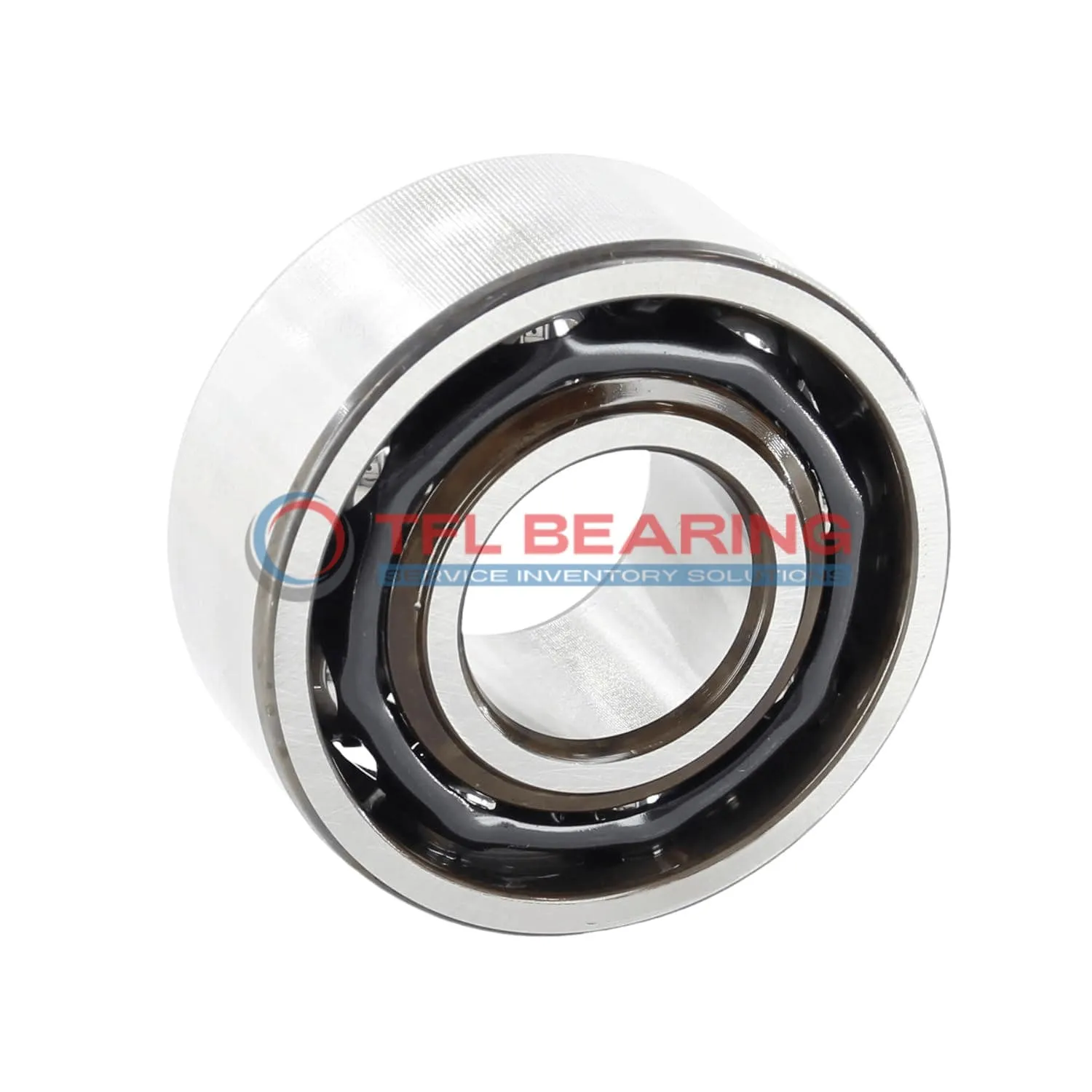

Dimension drawing · click to enlarge

Description

The 7224 ACDGC/P4A is a super precision angular contact ball bearing with a 120mm bore and 215mm outer diameter, crafted from high-quality chrome steel. It features a 25° contact angle and comes in a matched set of three for versatile mounting options.

This bearing handles radial loads up to 42750 lbf and operates smoothly at speeds up to 10000 RPM. Its phenolic cage ensures durability, while the open design allows for easy lubrication and maintenance.

With a moderate preload (Class C), it offers excellent stability for high-precision applications. The bearing works reliably in temperatures from -30°C to 110°C.

Ideal for machine tools, spindles, or other high-speed equipment requiring precise angular contact. Weighing 5.42kg, it’s robust yet manageable for its size. Interchangeable with SKF bearings for easy replacements.

The universal matching design supports back-to-back, face-to-face, or tandem arrangements, providing flexibility in complex setups. Compliant with P4A tolerance standards for consistent performance.

Features

How Does 7224 ACDGC/P4A Bearing Ensure Precision Performance?

7224 ACDGC/P4A Bearing features a 25° contact angle, optimised for high-precision angular contact applications.
Its chrome steel rings and balls provide excellent durability under dynamic radial loads up to 42750 lbf.

The phenolic cage maintains ball alignment, ensuring smooth operation at speeds up to 10,000 rpm.
With a P4A tolerance class, it delivers consistent performance in demanding conditions.

7224 ACDGC/P4A Bearing is available in matched sets, offering flexibility for various mounting configurations.
Its moderate preload (Class C) enhances stability without compromising efficiency.

Application

Industrial Uses of 7224 ACDGC/P4A Bearing
The 7224 ACDGC/P4A Bearing is commonly used in high-precision machine tools, where its moderate preload and 25° contact angle ensure accurate spindle performance. The open design and phenolic cage make it suitable for high-speed operations.

In aerospace applications, 7224 ACDGC/P4A Bearing handles angular loads in turbine systems, thanks to its chrome steel construction and P4A tolerance class. Its matched arrangement option allows for custom setups in critical flight components.

For robotics, 7224 ACDGC/P4A Bearing provides smooth motion in articulated arms, where its dynamic radial load capacity supports repetitive movements. The lubricated design reduces maintenance needs in automated production lines.

Automotive vs Aerospace: Applications of 7224 ACDGC/P4A Bearing
In automotive systems, 7224 ACDGC/P4A Bearing is ideal for high-performance gearboxes, offering durability under angular loads. Its metric sizing ensures compatibility with European and Asian vehicle designs.

Aerospace applications benefit from 7224 ACDGC/P4A Bearing’s precision in landing gear mechanisms, where its temperature range and static radial load capacity are crucial. The universal matching option simplifies assembly in complex systems.

What Makes 7224 ACDGC/P4A Bearing a Preferred Choice?
The 7224 ACDGC/P4A Bearing stands out in medical imaging devices, where its phenolic cage reduces friction for quiet operation. Its chrome steel rings ensure long-term reliability in high-use environments.

For industrial pumps, 7224 ACDGC/P4A Bearing’s dynamic radial load rating makes it a reliable choice for handling fluid forces. The open seal type allows for easy lubrication adjustments in demanding conditions.
