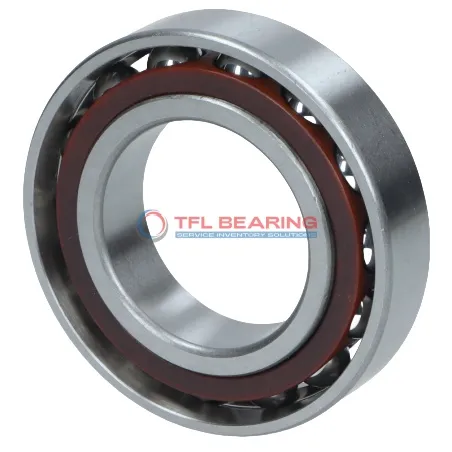

Super Precision Angular Contact Ball Bearings 7014 CE/HCP4ALDT

Super Precision Angular Contact Ball Bearings 7014 CE/HCP4ALDT

The 7014 CE/HCP4ALDT is a super precision angular contact ball bearing with a 70mm bore and 110mm outer diameter, crafted from chrome steel for durability. It features a 15° contact angle and comes in a matched set of two bearings for balanced performance.

This bearing handles radial loads up to 8775 lbf and spins smoothly at speeds up to 22,000 RPM, thanks to its ceramic balls and phenolic cage. Its open design allows for easy lubrication, ensuring long-lasting operation.

Preloaded for precision, this model is ideal for high-speed applications like machine tool spindles or robotics. It operates efficiently in temperatures from -30°C to 110°C.

Weighing 1.11kg, it’s a robust yet manageable choice for demanding setups. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7014 CE/HCP4ALDT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 40 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 25
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 8212 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 22000 rpm
  • Weight 1.11 kg
Super Precision Angular Contact Ball Bearings 7014 CE/HCP4ALDT dimension drawing
Download DWG Download PDF

Features

Performance Features of 7014 CE/HCP4ALDT Bearing

7014 CE/HCP4ALDT Bearing is designed with a 15° contact angle, optimising load distribution for precision applications.
Its chrome steel rings and ceramic balls enhance durability and reduce friction.

The phenolic cage ensures smooth operation, even at high speeds up to 22,000 rpm.
This bearing is preloaded and comes in a matched set of two for balanced performance.

With a dynamic radial load capacity of 8775 lbf, it handles demanding tasks reliably.
The open design allows for easy lubrication, maintaining efficiency over time.

7014 CE/HCP4ALDT Bearing operates in temperatures from -30°C to 110°C, suitable for various environments.
Its precision P4A tolerance class ensures consistent performance in critical applications.

Application

Industrial Uses of 7014 CE/HCP4ALDT Bearing
7014 CE/HCP4ALDT Bearing is commonly used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it ideal for prolonged operation.

What Makes 7014 CE/HCP4ALDT Bearing a Preferred Choice?
In automotive applications, 7014 CE/HCP4ALDT Bearing supports wheel hubs and transmissions, thanks to its robust chrome steel construction. The matched arrangement enhances stability under heavy loads.

Perfect Fit for Automation: 7014 CE/HCP4ALDT Bearing
For robotic arms and automated systems, 7014 CE/HCP4ALDT Bearing offers smooth movement with minimal vibration. Its phenolic cage provides durability in high-speed environments.

Medical vs Industrial: Where 7014 CE/HCP4ALDT Bearing Excels
In medical imaging devices, 7014 CE/HCP4ALDT Bearing’s precision ensures reliable performance. Meanwhile, industrial pumps benefit from its ability to handle radial and axial loads simultaneously.
