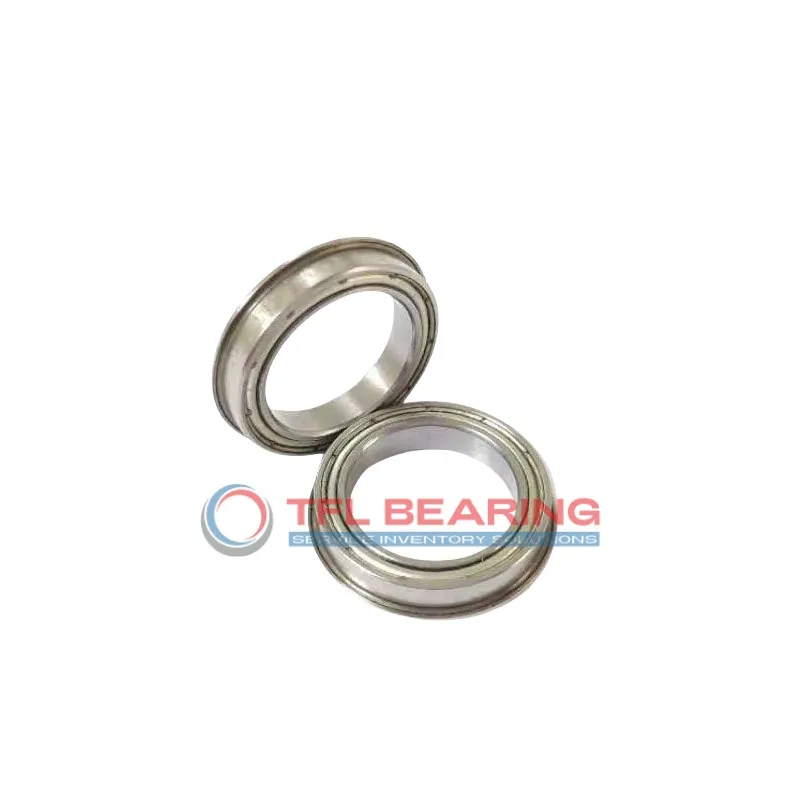

Standard Flanged Ball Bearings F6800ZZ

Standard Flanged Ball Bearings F6800ZZ

The F6800ZZ is a compact flanged ball bearing with a 10mm bore and 19mm outer diameter, measuring just 5mm in width. Made from chrome steel, it’s built to handle radial loads up to 387 lbf and spins smoothly at speeds up to 34,000 RPM.

Its shielded design keeps dust out while the stainless steel cage ensures durability. The flange adds stability, making it easier to mount in tight spaces.

This bearing requires lubrication and operates well in temperatures from -30°C to 110°C. Ideal for small motors or precision equipment where space is limited.

Weighing only 13g, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6800ZZ
  • Brand TFL
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 21 mm
  • Flange Thickness 1 mm
  • Ball Dia 2.381 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 387 lbf
  • Static Radial Load 189 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 34000 rpm
  • Weight 13 g
  • Price（$） 2.35
Standard Flanged Ball Bearings F6800ZZ dimension drawing
Download DWG Download PDF

Features

How Does F6800ZZ Bearing Reduce Friction?

F6800ZZ Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants, maintaining performance in various environments.

The stainless steel cage keeps the balls aligned, reducing wear and extending the bearing’s lifespan.
With a maximum speed of 34,000 rpm, it offers reliable performance for high-speed applications.

F6800ZZ Bearing’s compact size (10 mm×21 mm×5 mm) makes it ideal for space-constrained installations.
The flange outer dia of 21 mm provides added stability during operation.

Application

Common Applications of F6800ZZ Bearing
F6800ZZ Bearing is widely used in small electric motors, such as those found in cooling fans and household appliances. Its compact size and shielded design help keep dust out while maintaining smooth rotation.

In automation systems, F6800ZZ Bearing fits neatly into compact robotic joints and precision gear trains. The stainless steel cage ensures reliable performance even with frequent directional changes.

For DIY power tools like miniature drills, F6800ZZ Bearing offers good radial load support in tight spaces. The flange provides extra stability during high-speed operation, preventing misalignment.

Medical device manufacturers often choose F6800ZZ Bearing for portable diagnostic equipment due to its consistent performance. The ABEC-1 tolerance makes it suitable for applications requiring basic precision levels.
