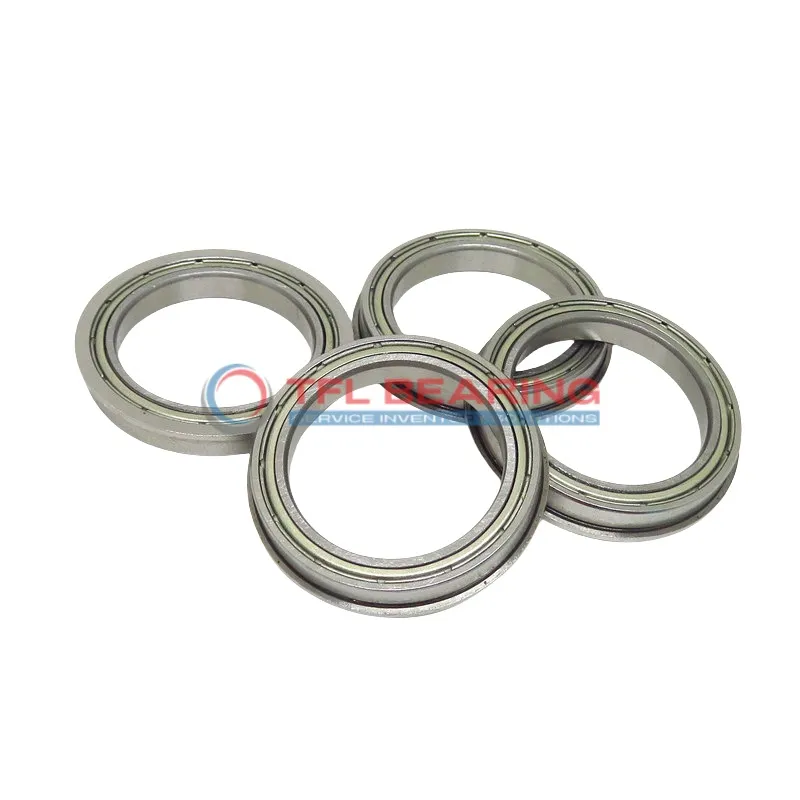

Standard Flanged Ball Bearings F63800ZZ

Standard Flanged Ball Bearings F63800ZZ

The F63800ZZ is a compact flanged ball bearing with a 10mm bore and 19mm outer diameter, measuring just 7mm in width. Its chrome steel construction offers durability, while the stainless steel cage ensures smooth operation.

The shielded design keeps dirt out and retains lubrication, making it suitable for speeds up to 34,000 RPM. It handles radial loads up to 387 lbf, ideal for small machinery or precision equipment.

The flange provides secure mounting, preventing slippage in tight spaces. With a temperature range of -30°C to 110°C, it works well in various environments.

This bearing is compliant with RoHS and REACH standards, ensuring safe use. Perfect for applications like small motors or conveyor systems where space is limited. Weighing only 7.80g, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F63800ZZ
  • Brand TFL
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 19 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 21 mm
  • Flange Thickness 1.5 mm
  • Ball Qty 10
  • Ball Dia 2.381 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 387 lbf
  • Static Radial Load 189 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 34000 rpm
  • Weight 7.80 g
  • Price（$） 2.35
Standard Flanged Ball Bearings F63800ZZ dimension drawing
Download DWG Download PDF

Features

Why Choose F63800ZZ Bearing for Precision Tasks?

F63800ZZ Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 387 lbf, F63800ZZ Bearing handles demanding tasks with ease.
The stainless steel cage and 10 precision balls provide stable performance at speeds up to 34,000 rpm.

F63800ZZ Bearing operates efficiently within a temperature range of -30° to 110°C.
Its compact size (10 mm×21 mm×7 mm) makes it ideal for space-constrained applications.

Application

Common Applications of F63800ZZ Bearing
F63800ZZ Bearing is widely used in small electric motors, such as those found in household appliances like blenders and fans. Its shielded design helps keep dust out while maintaining smooth rotation.

In automation systems, F63800ZZ Bearing fits neatly into compact robotic arms and conveyor guides, thanks to its flanged outer ring for easy mounting. The chrome steel construction ensures reliable performance in continuous operation.

For office equipment like printers and scanners, F63800ZZ Bearing’s low-noise operation and small footprint make it a sensible choice. The ABEC-1 tolerance provides sufficient precision for everyday use without unnecessary cost.

DIY enthusiasts often pick F63800ZZ Bearing for hobby projects involving miniature machinery due to its accessible sizing and straightforward lubrication needs. The stainless steel cage adds durability for intermittent use cases.
