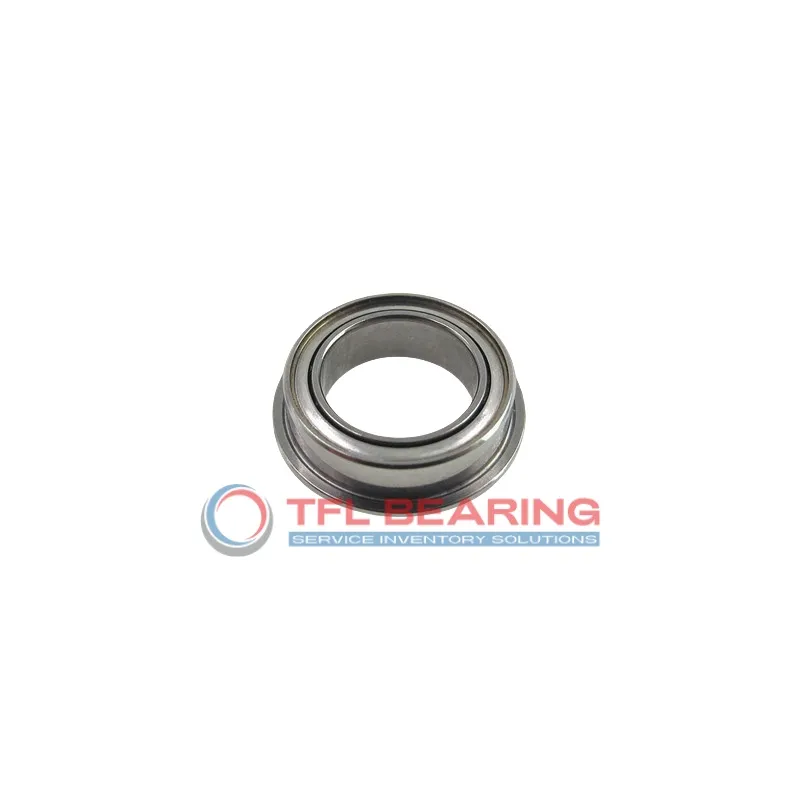

Standard Flanged Ball Bearings F6801ZZ

Standard Flanged Ball Bearings F6801ZZ

The F6801ZZ is a compact flanged ball bearing with a 12mm bore and 21mm outer diameter, measuring just 5mm in width. Made from chrome steel, it offers reliable radial load handling up to 432 lbf.

Its shielded design keeps dirt out while allowing smooth rotation at speeds up to 30,000 RPM. The stainless steel cage and flange provide extra stability in tight spaces.

This bearing requires lubrication and operates in temperatures from -30°C to 110°C. With ABEC-1 precision and C0 clearance, it suits small machinery where space is limited.

Weighing only 6.3g, it’s ideal for applications like small motors or precision instruments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number F6801ZZ
  • Brand TFL
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 21 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 23 mm
  • Flange Thickness 1.1 mm
  • Ball Qty 12
  • Ball Dia 2.381 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 432 lbf
  • Static Radial Load 234 lbf
  • Lubrication Required
  • Temperature Range -30° to 110°C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 30000 rpm
  • Weight 6.30 g
  • Price（$） 2.55
Standard Flanged Ball Bearings F6801ZZ dimension drawing
Download DWG Download PDF

Features

How Does F6801ZZ Bearing Reduce Friction?

F6801ZZ Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The shielded design protects against contaminants while maintaining low resistance during rotation.
With a dynamic radial load capacity of 432 lbf, it handles moderate loads efficiently.
Its compact size (12 mm×23 mm×5 mm) makes it ideal for space-constrained applications.

What Ensures Smooth Operation in F6801ZZ Bearing?

F6801ZZ Bearing’s stainless steel cage keeps the 12 chrome steel balls perfectly aligned.
The precision ABEC-1 tolerance ensures consistent performance at speeds up to 30,000 rpm.
Its radial clearance (0.002mm to 0.013mm) contributes to quiet and vibration-free operation.
The flanged outer design (23 mm) provides secure mounting in various applications.

Why Choose F6801ZZ Bearing for Precision Tasks?

F6801ZZ Bearing offers reliable performance with its chrome steel construction and shielded seals.
The 300 series stainless steel shields protect against dust without adding significant friction.
Its lightweight design (6.30 g) and small footprint suit precision instruments perfectly.
Operating between -30° to 110°C, it maintains stable performance in varied environments.

Application

Common Applications of F6801ZZ Bearing
F6801ZZ Bearing is widely used in small electric motors, such as those found in cooling fans or power tools, thanks to its compact size and shielded design. The stainless steel shields help keep contaminants out, extending the bearing’s lifespan in dusty environments.

In automation systems, F6801ZZ Bearing fits well in compact robotic joints or linear guides, where its low-profile flange provides secure mounting. The ABEC-1 tolerance ensures smooth rotation for precise movements.

For consumer electronics like printers or small appliances, F6801ZZ Bearing offers quiet operation and reliable performance. Its chrome steel construction handles everyday wear while maintaining consistent speed.

Medical devices, such as dental handpieces, benefit from F6801ZZ Bearing’s balanced radial load capacity. The shielded design also helps maintain cleanliness in sensitive applications.

In light industrial equipment, F6801ZZ Bearing works well in conveyor belt rollers or small gearboxes. Its metric sizing makes it easy to integrate into European and Asian machinery designs.
