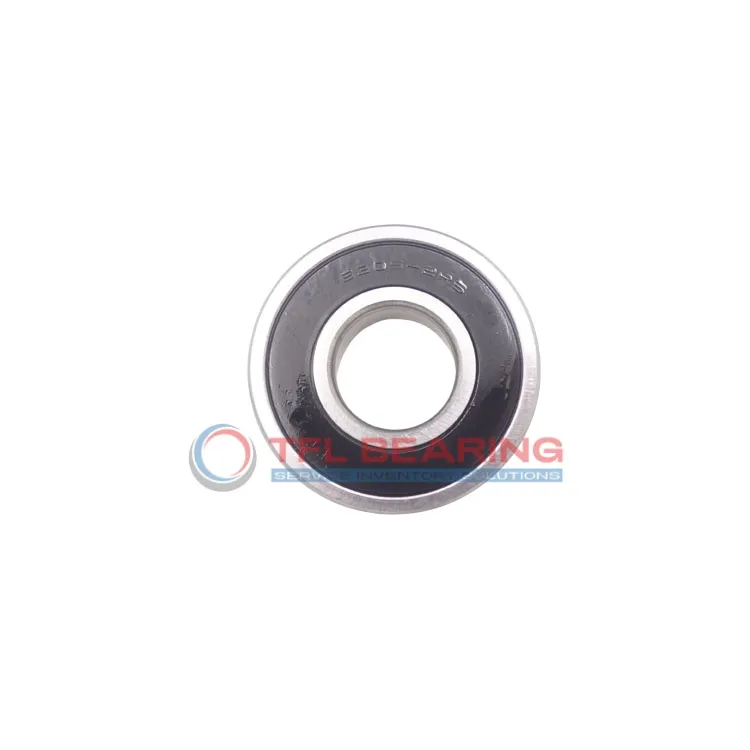

Stainless Steel Deep Groove Ball Bearings W 6305-2RS1/VT378

The W 6305-2RS1/VT378 is a stainless steel deep groove ball bearing measuring 25mm by 62mm by 17mm, designed for radial loads. It handles dynamic loads up to 4002 lbf and spins smoothly at speeds up to 17000 RPM.

The sealed design keeps dirt out and lubrication in, making it low-maintenance. Its stainless steel construction resists corrosion, ideal for damp or harsh environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for applications like food processing equipment or marine machinery where rust resistance is key.

Weighing 0.22kg, it balances durability with lightweight performance. Compliant with REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number W 6305-2RS1/VT378
Brand TFL
Interchangeable SKF
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 62 mm
Outer Dia Tolerance -0.013mm to 0
Width 17 mm
Width Tolerance -0.12mm to 0
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Chrome Steel
Dynamic Radial Load 4002 lbf
Static Radial Load 2518 lbf
Temperature Range -30°to 120 °C
REACH Compliant
Max Speed 17000 rpm
Weight 0.22 kg

Stainless Steel Deep Groove Ball Bearings W 6305-2RS1/VT378 dimension drawing

Download DWG Download PDF

Features

Why Choose W 6305-2RS1/VT378 Bearing for Precision Tasks?

W 6305-2RS1/VT378 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its sealed design ensures protection against dust and moisture, making it suitable for various environments.

The dynamic radial load capacity of 4002 lbf allows it to handle demanding radial loads with ease.
With a maximum speed of 17,000 rpm, it delivers smooth and efficient performance.

The chrome steel cage maintains ball alignment, reducing friction and extending operational life.
Its ABEC 1 tolerance ensures reliable precision for a wide range of applications.

Application

Common Applications of W 6305-2RS1/VT378 Bearing
W 6305-2RS1/VT378 Bearing is widely used in industrial equipment like pumps and compressors, where its sealed design protects against contaminants. The stainless steel construction ensures durability in humid or corrosive environments.

How Does W 6305-2RS1/VT378 Bearing Improve Performance?
In automotive applications, W 6305-2RS1/VT378 Bearing enhances reliability in electric motors and alternators. Its high-speed capability and radial load handling make it a dependable choice for long-term use.

Built for Heavy-Duty Use: W 6305-2RS1/VT378 Bearing
This bearing excels in automation systems, such as conveyor belts and packaging machines. The sealed design reduces maintenance needs, while the stainless steel material resists wear in demanding conditions.

Medical vs Industrial: Where W 6305-2RS1/VT378 Bearing Excels
W 6305-2RS1/VT378 Bearing is suitable for medical devices like dental drills, offering smooth operation and hygiene. In industrial settings, it performs well in food processing equipment due to its corrosion-resistant properties.
