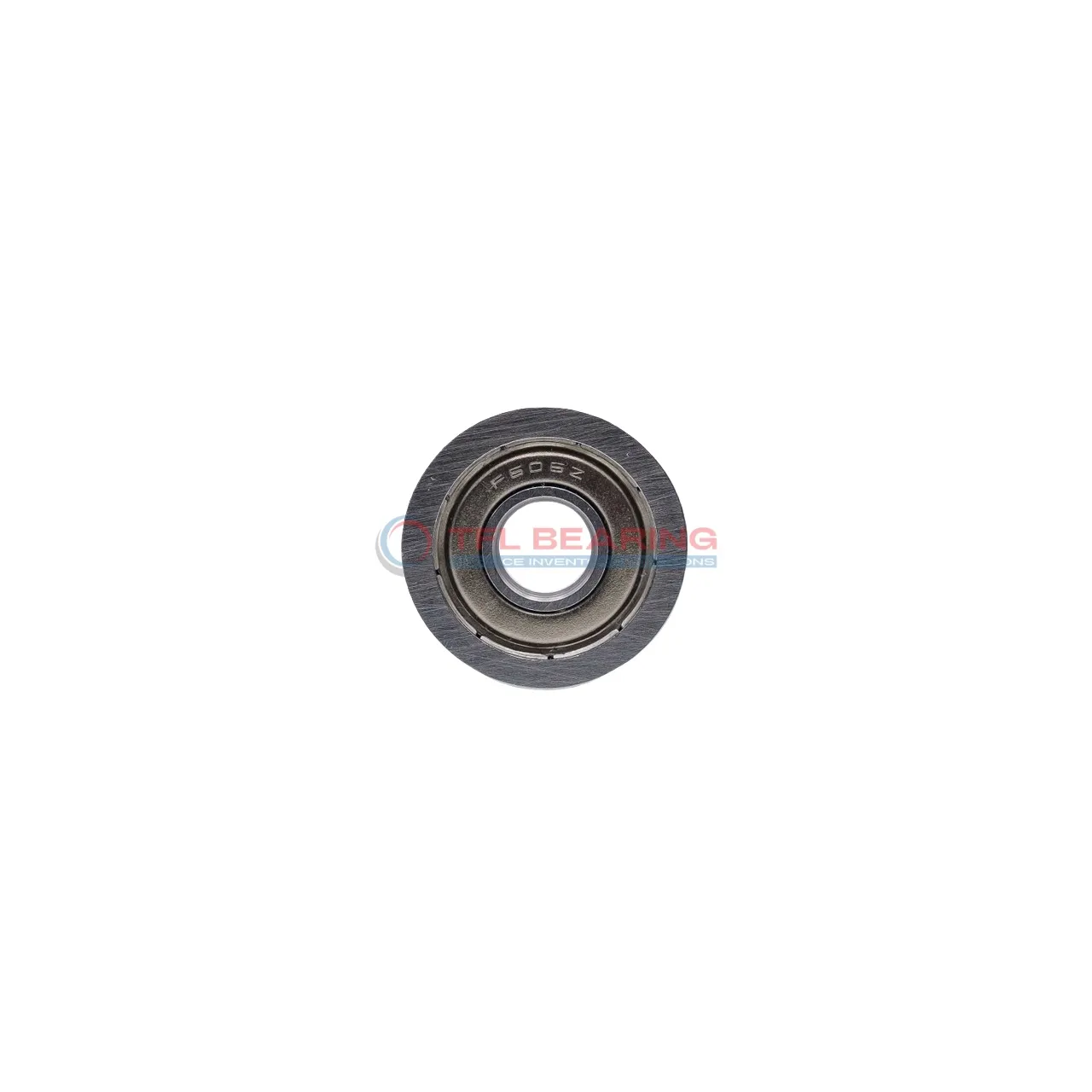

Metric Size Miniature Flanged Ball Bearings SF689zz

Metric Size Miniature Flanged Ball Bearings SF689zz

The SF689zz is a small, shielded ball bearing with a 9mm bore and 17mm outer diameter, crafted entirely from stainless steel for durability. It handles radial loads up to 228 lbf and spins smoothly at speeds up to 32,400 RPM.
Its shielded design keeps out dust while allowing easy lubrication, and the stainless steel cage ensures corrosion resistance. The bearing operates reliably in temperatures from -30°C to 110°C.
With a compact width of just 5mm and a lightweight 4.87g design, it fits neatly into tight spaces. Ideal for small motors, hobbyist projects, or precision instruments where space and speed matter.
Compliant with RoHS and REACH standards, it’s a safe and practical choice for everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF689zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 19 mm
  • Flange Thickness 1.1 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 11
  • Ball Dia 2.000 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 228 lbf
  • Static Radial Load 108 lbf
  • Max Speed 32400 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.87 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SF689zz dimension drawing
Download DWG Download PDF

Features

How Does SF689zz Bearing Reduce Friction?

SF689zz Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants while maintaining low resistance during rotation.
With a dynamic radial load capacity of 228 lbf, it delivers reliable performance in various applications.
The precision ABEC1 tolerance ensures consistent operation at speeds up to 32,400 rpm.

Application

Common Applications of SF689zz Bearing
SF689zz Bearing is widely used in small electric motors, such as those found in cooling fans and power tools, thanks to its compact size and shielded design. The stainless steel construction ensures durability even in humid or corrosive environments.

In automation systems, SF689zz Bearing provides smooth rotation for components like robotic arms and conveyor belts. Its high-speed capability makes it suitable for precision tasks where reliability is key.

For consumer electronics, SF689zz Bearing is a go-to choice for devices like printers and small appliances. The lightweight design and low noise operation enhance user experience in everyday gadgets.

Medical devices also benefit from SF689zz Bearing, particularly in portable equipment where space and weight are critical factors. The shielded design helps keep contaminants out, ensuring consistent performance.
