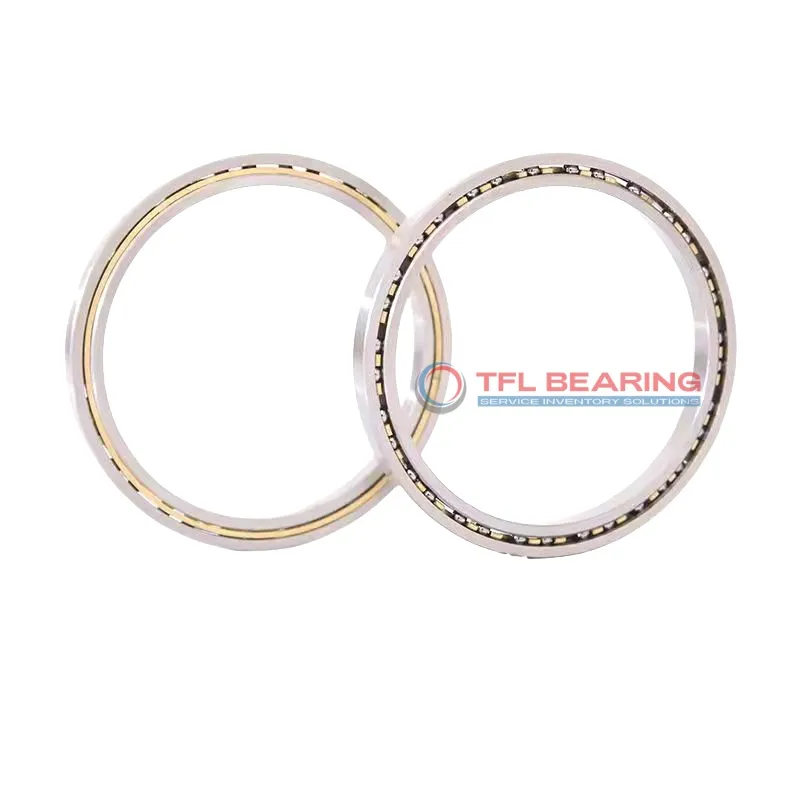

Constant Section (CS) Bearings NG120CP0

Constant Section (CS) Bearings NG120CP0

The NG120CP0 is a constant section bearing with a 12″ bore and 14″ outer diameter, featuring a slim 1″ width. Made from chrome steel with brass cage, it’s built for radial loads up to 10074 lbf.

Its thin-section design and chromium plating make it resistant to wear, while the open seal allows easy lubrication. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with KAYDON bearings, offering a reliable alternative. Ideal for applications requiring precise radial load handling, such as robotics or medical equipment.

Weighing 9.3 lbs, it’s lightweight yet sturdy. Compliant with RoHS standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NG120CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 12"
  • Bore Dia Tolerance -0.0014"– 0"
  • Outer Dia 14"
  • Outer Dia Tolerance -0.0014"– 0"
  • Width 1"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NG 1" x 1"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 12.742"
  • Internal Diameter On Outer Ring (Small Side Face) 13.258"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 10074 lbf
  • Static Radial Load 21340 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 14133 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 9.3 lbs
  • price（$） 350.28
Constant Section (CS) Bearings NG120CP0 dimension drawing
Download DWG Download PDF

Features

How Does NG120CP0 Bearing Ensure Smooth Radial Load Handling?

NG120CP0 Bearing features a single-row ball design with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 10,074 lbf makes it suitable for various industrial applications.

The brass cage maintains proper ball alignment, reducing friction and enhancing durability.
With a temperature range of -30°C to 110°C, it performs consistently in diverse environments.

NG120CP0 Bearing’s chromium plating provides added protection against wear and corrosion.
Its ABEC-1 tolerance class ensures dependable performance for precision tasks.

Application

Key Fields for NG120CP0 Bearing
NG120CP0 Bearing is commonly used in industrial machinery, especially where space is limited but radial load support is needed, like in robotic arms and conveyor systems. Its thin-section design makes it ideal for compact applications without sacrificing strength.

In automation setups, NG120CP0 Bearing ensures smooth movement in equipment like 3D printers and CNC machines. The chromium plating adds extra durability, perfect for high-use environments.

For medical imaging devices, NG120CP0 Bearing’s precise tolerances and brass cage provide reliable performance. Its chrome steel construction also resists wear, ensuring long-term operation in critical settings.

Around the home, NG120CP0 Bearing can be found in appliances like washing machines, where its radial load capacity handles daily use effortlessly. The open seal design allows for easy maintenance, extending its lifespan.
