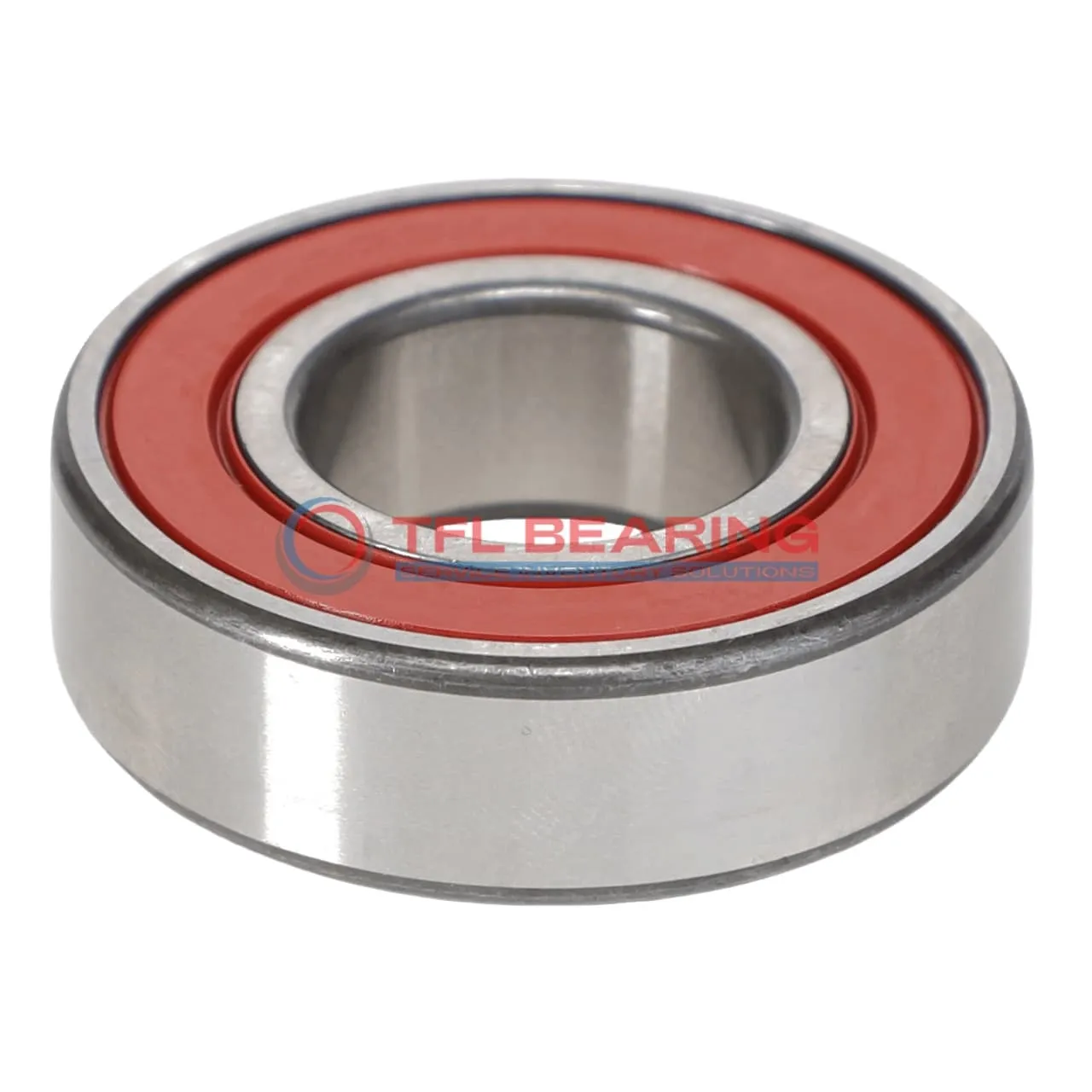

Single Row Deep Groove Ball Bearings 6214-2RS1/C3WT

Single Row Deep Groove Ball Bearings 6214-2RS1/C3WT

The 6214-2RS1/C3WT is a single-row deep groove ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13983 lbf and runs smoothly at speeds up to 5000 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The C3 radial clearance allows for slight thermal expansion, ideal for varying temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Perfect for electric motors or pumps where consistent radial load support is needed.

Weighing 1070g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6214-2RS1/C3WT
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 24 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13983 lbf
  • Static Radial Load 9914 lbf
  • Max Speed 5000 rpm
  • Weight 1070 g
Single Row Deep Groove Ball Bearings 6214-2RS1/C3WT dimension drawing
Download DWG Download PDF

Features

How Does 6214-2RS1/C3WT Bearing Reduce Friction?

6214-2RS1/C3WT Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads.
The bearing’s C3 radial clearance allows for thermal expansion, maintaining performance in varied temperatures.
With a dynamic radial load capacity of 13983 lbf, it offers reliable support for industrial applications.

Application

Industrial Uses of 6214-2RS1/C3WT Bearing
This bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The C3 clearance ensures reliable performance even under varying thermal conditions.

Where Is 6214-2RS1/C3WT Bearing Used?
You’ll often find this bearing in automotive applications such as alternators and wheel hubs, thanks to its radial load capacity. The chrome steel construction provides durability for long-term use in demanding environments.

Perfect Fit for Automation: 6214-2RS1/C3WT Bearing
In automated systems like conveyor belts, this bearing offers smooth operation with minimal maintenance. Its sealed design is particularly useful in dusty or wet conditions.

Medical vs Industrial: Where 6214-2RS1/C3WT Bearing Excels
While it’s robust enough for industrial gear, this bearing also works well in medical devices like centrifuges. The consistent performance and temperature range make it versatile for various settings.

How Does 6214-2RS1/C3WT Bearing Support High-Speed Operations?
With a max speed of 5000 rpm, this bearing is suitable for applications like small turbines. The deep groove design ensures stability even at higher rotational speeds.
