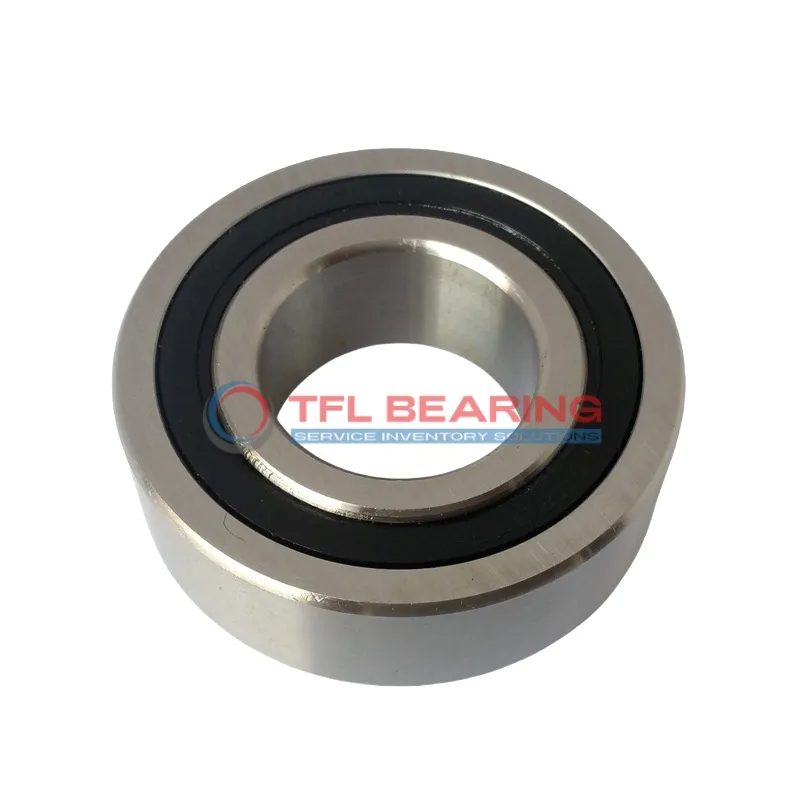

Self Aligning Ball Bearings 2200 E-2RS1TN9/W64F

Self Aligning Ball Bearings 2200 E-2RS1TN9/W64F

The 2200 E-2RS1TN9/W64F is a self-aligning ball bearing with a 10mm bore and 30mm outer diameter, compact at just 14mm wide. Made from chrome steel with a nylon cage, it handles radial loads up to 1244 lbf and spins smoothly at 17,000 RPM.

Its sealed design keeps lubrication in and dirt out, making it low-maintenance. The double-row construction helps it handle slight misalignments, ideal for uneven setups.

Pre-lubricated and ready to use, it works in temperatures from -30°C to 110°C. Weighing only 0.048kg, it’s lightweight yet durable.

Perfect for applications like conveyor systems or small electric motors where alignment flexibility is needed. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2200 E-2RS1TN9/W64F
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 30 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 14.6 mm
  • Internal Diameter On Outer Ring 24.72 mm
  • Chamfer Dimension 0.6 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8665 lbf
  • Static Radial Load 71890 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.048 kg
  • Price（$） 70.08
Self Aligning Ball Bearings 2200 E-2RS1TN9/W64F dimension drawing
Download DWG Download PDF

Features

Why Choose 2200 E-2RS1TN9/W64F Bearing for Precision Tasks?

2200 E-2RS1TN9/W64F Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 1244 lbf makes it suitable for high-precision applications.

The sealed construction and nylon cage provide smooth operation while keeping contaminants out.
With a maximum speed of 17,000 rpm, it balances speed and durability effortlessly.

2200 E-2RS1TN9/W64F Bearing operates efficiently within a temperature range of -30° to 110°C.
Its compact size of 10 mm×30 mm×14 mm makes it ideal for space-constrained installations.

The pre-lubricated design reduces maintenance needs, saving time and effort.
Its radial clearance of CN ensures consistent performance in various operating conditions.

Application

Common Applications of 2200 E-2RS1TN9/W64F Bearing
2200 E-2RS1TN9/W64F Bearing is widely used in industrial fans and blowers, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life in dusty environments.

In automotive applications, 2200 E-2RS1TN9/W64F Bearing is often found in alternators and water pumps, providing smooth rotation under radial loads. Its nylon cage reduces vibration, making it ideal for vehicle components that require quiet operation.

For small machinery like conveyor rollers, 2200 E-2RS1TN9/W64F Bearing’s compact size and double-row construction offer reliable performance. The chrome steel rings and balls ensure durability even in continuous operation.

In household appliances such as washing machines, 2200 E-2RS1TN9/W64F Bearing handles the dynamic loads of spinning drums. The lubricated design minimises maintenance, making it a hassle-free choice for daily use.

Medical devices like dental drills benefit from 2200 E-2RS1TN9/W64F Bearing’s precision and low noise levels. The sealed construction also prevents contamination, which is critical in sterile environments.
