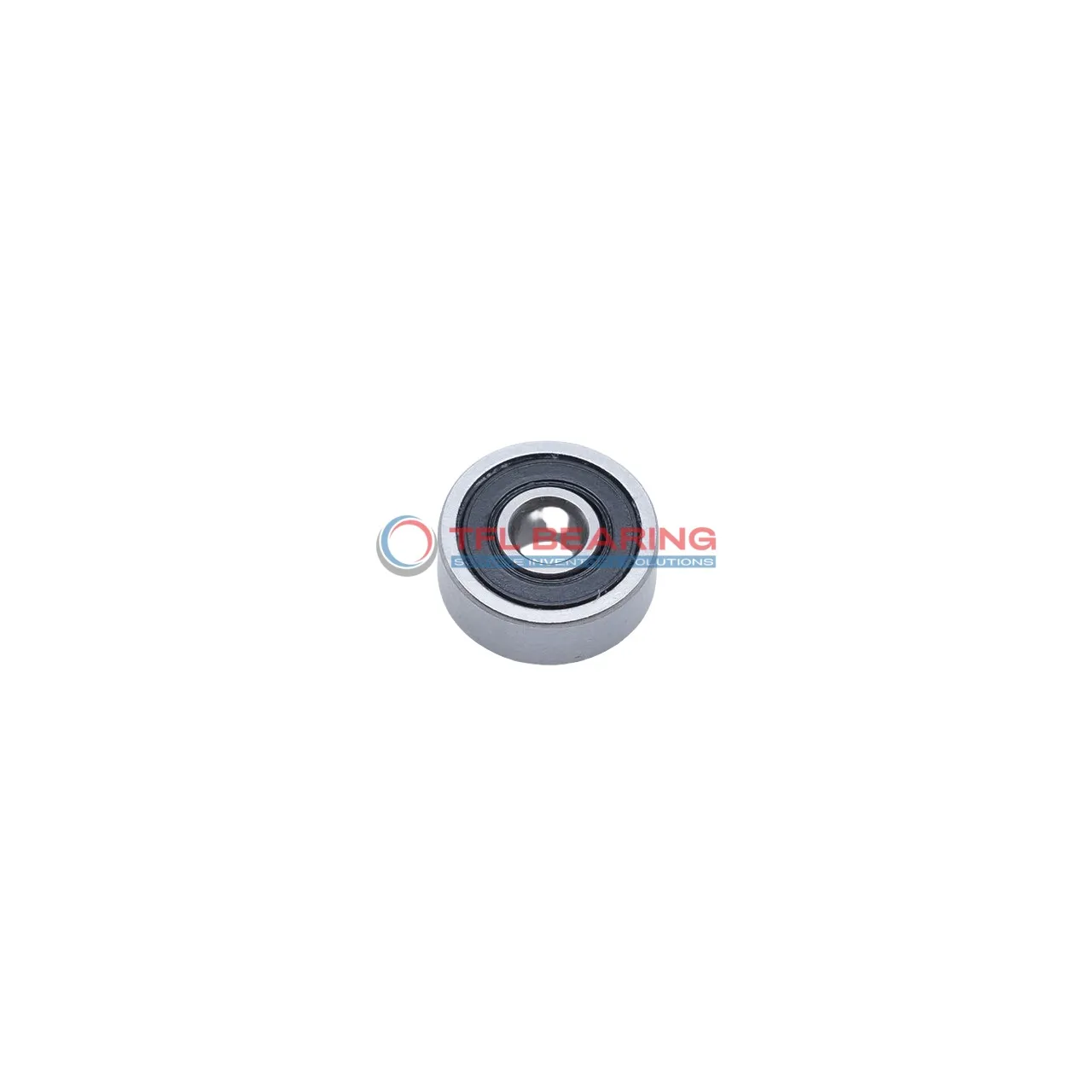

Stainless Steel Deep Groove Ball Bearings W 624-2RS1/VT378

Stainless Steel Deep Groove Ball Bearings W 624-2RS1/VT378

The W 624-2RS1/VT378 is a compact stainless steel deep groove ball bearing, measuring just 4mm by 13mm by 5mm. It’s designed for radial loads up to 167 lbf and can handle speeds up to 32,000 RPM, making it a versatile choice for small applications.

Its sealed design keeps out dust and moisture, while the stainless steel construction offers good corrosion resistance. The bearing operates smoothly in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, ensuring easy replacements. It’s ideal for small machinery, medical devices, or precision instruments where reliability is key.

Weighing only 0.0031kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe and practical option for various uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 624-2RS1/VT378
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 167 lbf
  • Static Radial Load 56 lbf
  • Temperature Range -30°to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 32000 rpm
  • Weight 0.0031 kg
Stainless Steel Deep Groove Ball Bearings W 624-2RS1/VT378 dimension drawing
Download DWG Download PDF

Features

Why Choose W 624-2RS1/VT378 Bearing for Precision Tasks?

W 624-2RS1/VT378 Bearing is crafted with stainless steel rings and balls, ensuring corrosion resistance and durability.
Its compact size of 4 mm×13 mm×5 mm makes it ideal for applications where space is limited.

The sealed design protects against dust and moisture, enhancing reliability in various environments.
With a maximum speed of 32,000 rpm, it delivers smooth and efficient performance for precision tasks.

The chrome steel cage maintains ball alignment, reducing friction and extending service life.
Its dynamic radial load capacity of 167 lbf ensures dependable operation under stress.

Application

Common Applications of W 624-2RS1/VT378 Bearing
W 624-2RS1/VT378 Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its compact size and sealed design make it ideal for protecting against dust and moisture.

In automation systems, W 624-2RS1/VT378 Bearing ensures smooth operation in robotic arms and precision equipment. The stainless steel construction offers good resistance to corrosion, which is useful in humid or washdown environments.

For medical devices, W 624-2RS1/VT378 Bearing provides reliable performance in handheld instruments and diagnostic tools. The low friction and quiet operation are particularly beneficial in sensitive applications.

You’ll also find W 624-2RS1/VT378 Bearing in consumer electronics, such as printers and small gadgets. Its lightweight design and durability make it a practical choice for everyday devices.
