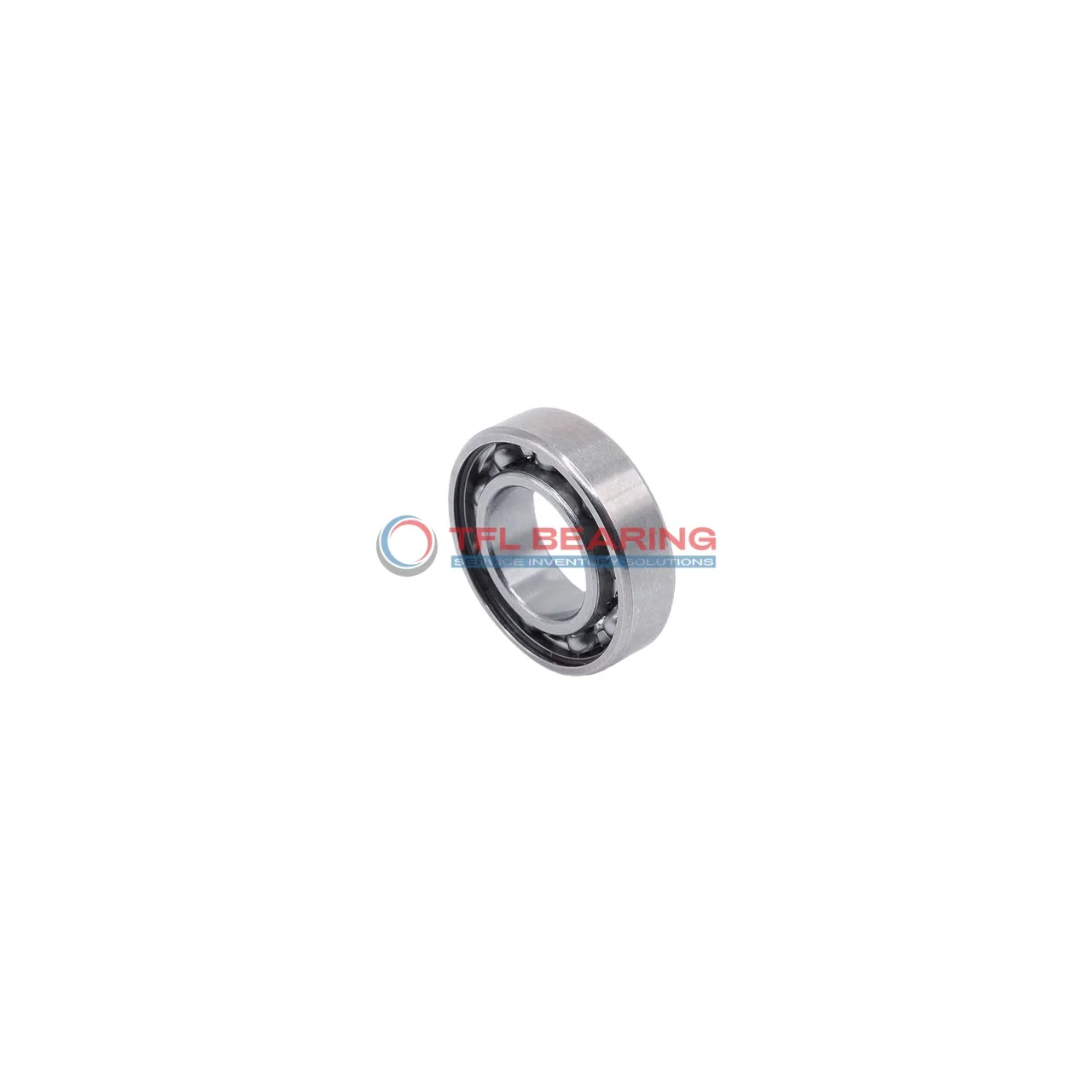

Thin Section Ball Bearings 6907

Thin Section Ball Bearings 6907

The 6907 is a thin-section ball bearing with a 35mm bore and 55mm outer diameter, designed for radial loads. Its compact 10mm width makes it ideal for space-sensitive applications.

Made from chrome steel with a stainless steel cage, it handles dynamic loads up to 2452 lbf and spins smoothly at 14,000 RPM. The open design allows easy lubrication while maintaining performance.

With ABEC-1 precision and C0 radial clearance, it offers reliable operation in temperatures from -30°C to 110°C. The lightweight 87g design doesn’t compromise on durability.

Suitable for machinery where slim profiles are needed, like robotics or medical devices. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6907
  • Brand TFL
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 55 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2452 lbf
  • Static Radial Load 1744 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 14000 rpm
  • Weight 87 g
  • Price（$） 2.8
Thin Section Ball Bearings 6907 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6907 Bearing

6907 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2452 lbf, ensuring reliable performance in various applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 14,000 rpm, it delivers efficient and smooth operation.

How Does 6907 Bearing Reduce Friction?

6907 Bearing’s chrome steel construction minimises friction, enhancing operational efficiency.
The precision-engineered single row design ensures even load distribution, reducing wear.
Its ABEC-1 tolerance class guarantees consistent performance in radial applications.
The open seal type allows for easy lubrication, further improving smoothness.

Built for Reliability: 6907 Bearing

6907 Bearing withstands temperatures from -30°C to 110°C, making it versatile in different environments.
Its C0 radial clearance range of 0.006mm to 0.020mm ensures optimal performance under varying conditions.
The lightweight design at just 87g doesn’t compromise its durability or load-bearing capacity.
This bearing is RoHS and REACH compliant, meeting stringent environmental standards.

Steel vs Ceramic Bearings: Strengths of 6907 Bearing

6907 Bearing’s chrome steel construction provides excellent durability and load capacity.
It offers a static radial load rating of 1744 lbf, suitable for steady applications.
The material choice ensures cost-effectiveness without sacrificing performance.
Its compatibility with standard lubrication methods simplifies maintenance.

Why Choose 6907 Bearing for Precision Tasks?

6907 Bearing’s ABEC-1 tolerance ensures precise operation in radial load applications.
The narrow width of 10mm makes it ideal for compact machinery designs.
Its consistent performance is backed by a radial clearance range optimised for smooth rotation.
The bearing’s compliance with RoHS and REACH reflects its high-quality standards.

Application

Industrial Uses of 6907 Bearing
6907 Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The open seal allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6907 Bearing fits well in electric motors and gearboxes due to its precise radial load handling. Its metric sizing ensures compatibility with a variety of vehicle designs.

For automation systems, 6907 Bearing works smoothly in robotic arms and conveyor belts, thanks to its reliable performance. The chrome steel construction ensures durability even with frequent use.

In consumer electronics, 6907 Bearing can be found in printers and small appliances, where its compact size is a key advantage. The stainless steel cage adds extra resistance to wear over time.

Medical devices like lab equipment benefit from 6907 Bearing’s consistent operation and low maintenance needs. Its temperature range makes it suitable for various clinical environments.
