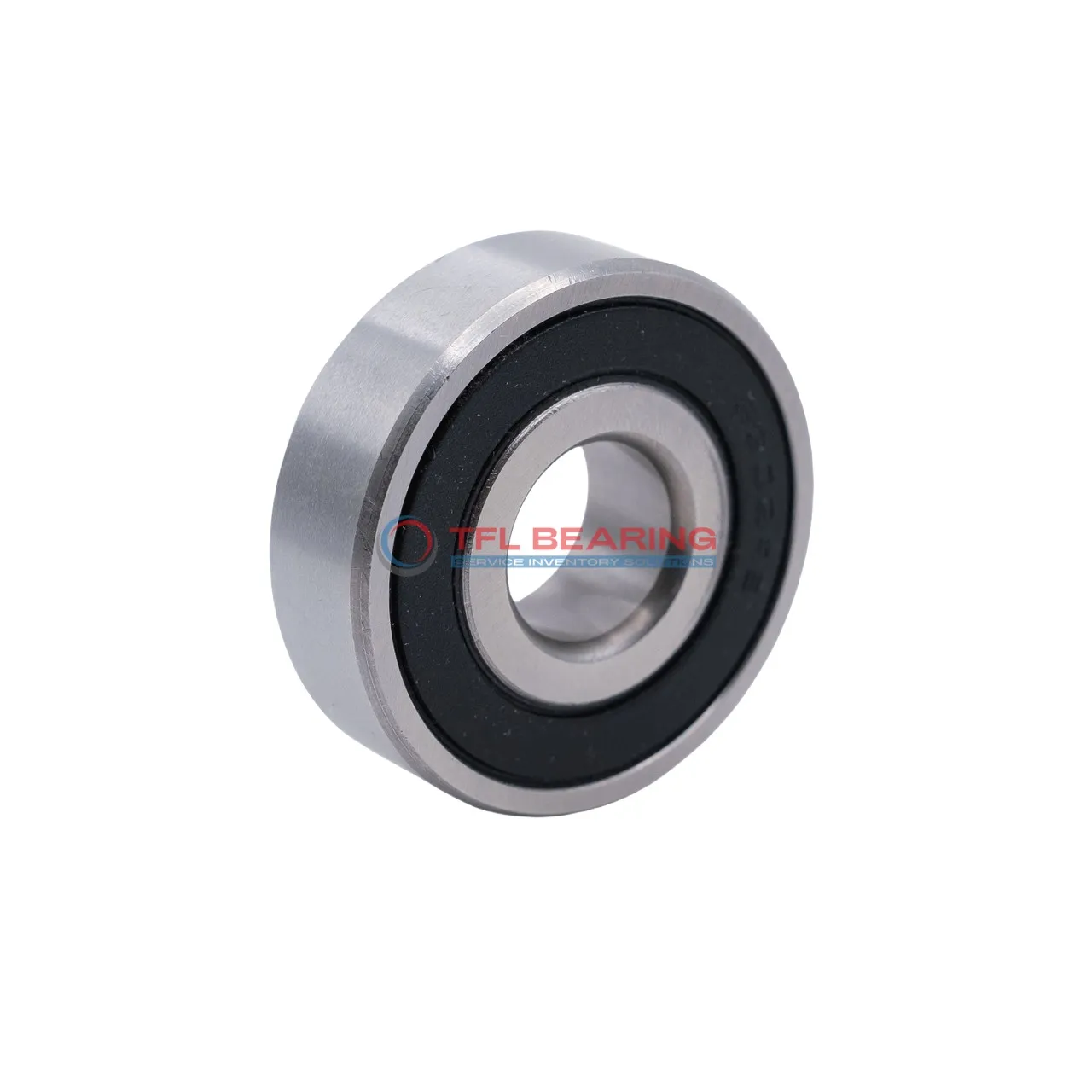

Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64J

Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64J

The W 6208-2RS1/W64J is a stainless steel deep groove ball bearing, measuring 40mm by 80mm by 18mm. It handles radial loads up to 5643 lbf and spins smoothly at speeds up to 12,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance. The stainless steel construction makes it resistant to corrosion, ideal for humid or wet environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for applications like food processing equipment or marine machinery where rust resistance is key.

Weighing 0.34kg, it’s sturdy yet manageable for its size. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6208-2RS1/W64J
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 5643 lbf
  • Static Radial Load 3957 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.34 kg
Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64J dimension drawing
Download DWG Download PDF

Features

Why Choose W 6208-2RS1/W64J Bearing for Precision Tasks?

W 6208-2RS1/W64J Bearing is crafted with stainless steel rings and balls, ensuring high precision and durability.
Its ABEC 1 tolerance class guarantees consistent performance in radial load applications.

The sealed design of W 6208-2RS1/W64J Bearing protects against contaminants, extending its service life.
Solid oil lubrication reduces friction, allowing smooth operation even at high speeds.

W 6208-2RS1/W64J Bearing handles dynamic radial loads up to 5643 lbf, making it reliable for demanding tasks.
With a maximum speed of 12,000 rpm, it balances efficiency and durability.

The chrome steel cage in W 6208-2RS1/W64J Bearing maintains ball alignment, reducing wear and noise.
Its temperature range of -30° to 120°C ensures performance in various environments.

Application

Industrial Uses of W 6208-2RS1/W64J Bearing
W 6208-2RS1/W64J Bearing is commonly used in industrial machinery like pumps and compressors, where its sealed design helps keep contaminants out. The stainless steel construction ensures it performs well in wet or corrosive environments.

In automotive applications, W 6208-2RS1/W64J Bearing fits well in electric motors and wheel hubs, providing reliable radial load support. Its solid oil lubrication reduces maintenance needs, making it a handy choice for long-term use.

For home appliances, W 6208-2RS1/W64J Bearing works smoothly in washing machines and fans, where quiet operation matters. The metric sizing makes it easy to replace in most European and Asian models.

Automation systems benefit from W 6208-2RS1/W64J Bearing in robotic arms and conveyor belts, thanks to its consistent performance. The ABEC 1 tolerance ensures it meets general precision needs without overcomplicating the design.
