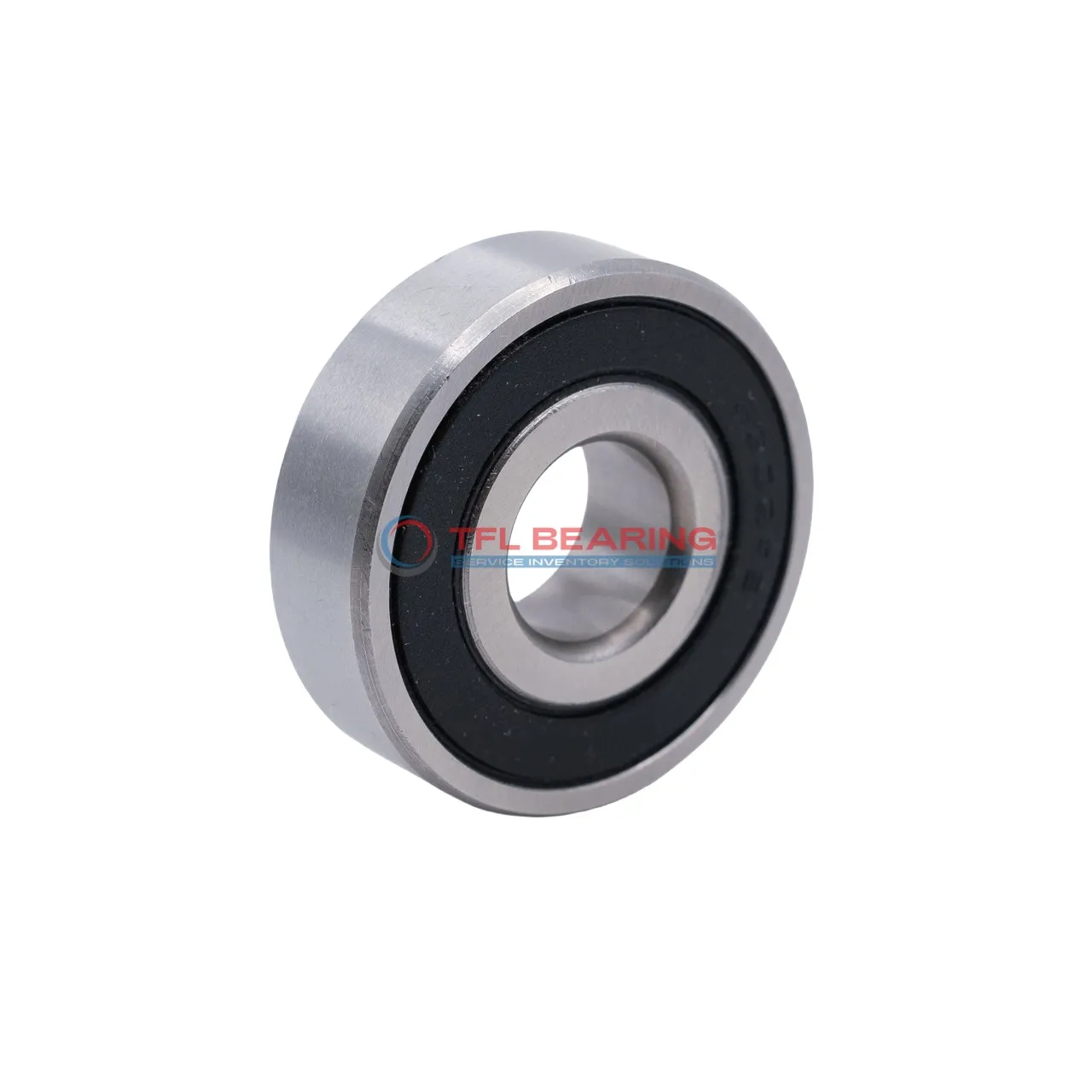

Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64

The W 6208-2RS1/W64 is a stainless steel deep groove ball bearing with a 40mm bore and 80mm outer diameter, measuring 18mm wide. Its sealed design keeps dirt out and solid oil lubrication ensures smooth operation.

This bearing handles radial loads up to 5643 lbf and spins at speeds up to 12,000 RPM. Made entirely of stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C.

The chrome steel cage adds durability, while the ABEC 1 precision rating makes it reliable for general use. It’s interchangeable with SKF bearings for easy replacement.

Ideal for food processing equipment or marine applications where moisture resistance matters. Weighing 0.34kg, it offers good load capacity for its compact size.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number W 6208-2RS1/W64
Brand TFL
Interchangeable SKF
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 80 mm
Outer Dia Tolerance -0.013mm to 0
Width 18 mm
Width Tolerance -0.12mm to 0
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Chrome Steel
Dynamic Radial Load 5643 lbf
Static Radial Load 3957 lbf
Temperature Range -30°to 120 °C
Lubrication Soild Oil
REACH Compliant
Max Speed 12000 rpm
Weight 0.34 kg
Price（$） 54.34

Stainless Steel Deep Groove Ball Bearings W 6208-2RS1/W64 dimension drawing

Download DWG Download PDF

Features

Why Choose W 6208-2RS1/W64 Bearing for Precision Tasks?

W 6208-2RS1/W64 Bearing is crafted with stainless steel rings and balls, ensuring high precision and durability.

Its sealed design protects against contaminants, making it ideal for clean or harsh environments.

The solid oil lubrication reduces maintenance needs while providing consistent performance.

With a maximum speed of 12,000 rpm, it delivers reliable operation for various applications.

Application

Industrial Uses of W 6208-2RS1/W64 Bearing
W 6208-2RS1/W64 Bearing is commonly used in industrial machinery, such as pumps and compressors, where its sealed design helps keep contaminants out. The stainless steel construction also makes it suitable for environments where corrosion resistance is important.

In automotive applications, W 6208-2RS1/W64 Bearing can be found in electric motors and alternators, providing reliable performance under radial loads. Its solid oil lubrication ensures smooth operation even at higher speeds.

For home appliances like washing machines, W 6208-2RS1/W64 Bearing offers quiet and efficient performance. The sealed design helps extend its lifespan by protecting against dust and moisture.

In automation systems, W 6208-2RS1/W64 Bearing supports robotic arms and conveyor belts, where precision and durability are key. The metric sizing makes it easy to integrate into various European and Asian equipment designs.

Medical devices such as dental drills benefit from W 6208-2RS1/W64 Bearing’s smooth operation and resistance to wear. The stainless steel materials also meet hygiene requirements in clinical settings.
