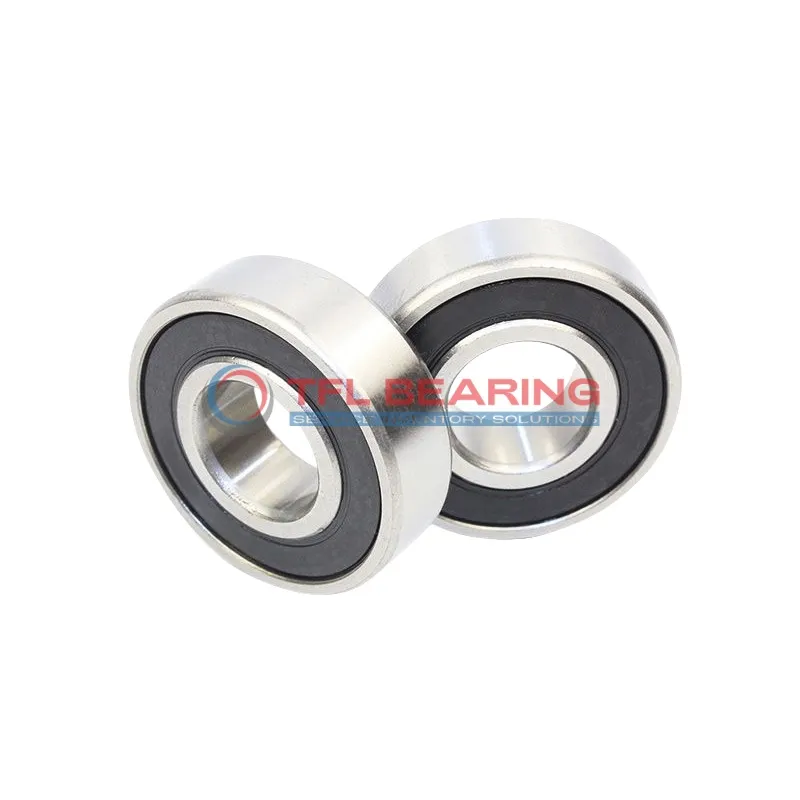

Single Row Deep Groove Ball Bearings 627-2RSL/C3LHT23

Single Row Deep Groove Ball Bearings 627-2RSL/C3LHT23

The 627-2RSL/C3LHT23 is a compact single-row deep groove ball bearing, measuring 7mm in bore and 22mm in outer diameter. Its sealed design keeps dirt out and lubrication in, making it low-maintenance.

Made from chrome steel, it handles radial loads up to 629 lbf and spins smoothly at speeds up to 30,000 RPM. The C3 clearance allows for slight thermal expansion, useful in varying temperatures.

This bearing works well in temperatures from -30°C to 120°C, suitable for small motors or appliances. Its lightweight design (12.7g) makes it easy to handle during installation.

Compliant with RoHS and REACH standards, it’s a safe choice for various applications. Interchangeable with SKF bearings, it’s a practical option for replacements or new builds.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 627-2RSL/C3LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 629 lbf
  • Static Radial Load 248 lbf
  • Max Speed 30000 rpm
  • Weight 12.7 g
  • price（$） 3.195
Single Row Deep Groove Ball Bearings 627-2RSL/C3LHT23 dimension drawing
Download DWG Download PDF

Features

Why Choose 627-2RSL/C3LHT23 Bearing for Precision Tasks?

627-2RSL/C3LHT23 Bearing features a sealed design, protecting it from dust and moisture for consistent performance.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 629 lbf, it handles demanding tasks with ease.
The bearing operates smoothly at speeds up to 30,000 rpm, making it suitable for high-speed applications.

627-2RSL/C3LHT23 Bearing’s C3 radial clearance provides optimal performance under varying temperatures.
Its compact size (7 mm×22 mm×7 mm) makes it ideal for space-constrained installations.

The bearing maintains reliability in temperatures ranging from -30°C to 120°C.
Its sealed design reduces maintenance needs, ensuring long service life.

Application

Common Applications of 627-2RSL/C3LHT23 Bearing
627-2RSL/C3LHT23 Bearing is widely used in small electric motors, such as those found in household appliances like fans and blenders. Its sealed design keeps out dust and moisture, ensuring long-lasting performance in everyday use.

In automotive applications, 627-2RSL/C3LHT23 Bearing fits well in components like alternators and water pumps, where its radial load capacity is essential. The C3 clearance allows for slight misalignments, making it adaptable to various engine conditions.

For automation equipment, 627-2RSL/C3LHT23 Bearing provides smooth operation in robotic arms and conveyor systems. Its compact size and sealed construction make it ideal for tight spaces and high-speed movements.

In consumer electronics, 627-2RSL/C3LHT23 Bearing is often found in printers and small power tools. The chrome steel construction ensures reliability, even with frequent use. The temperature range also makes it suitable for both indoor and outdoor applications.
