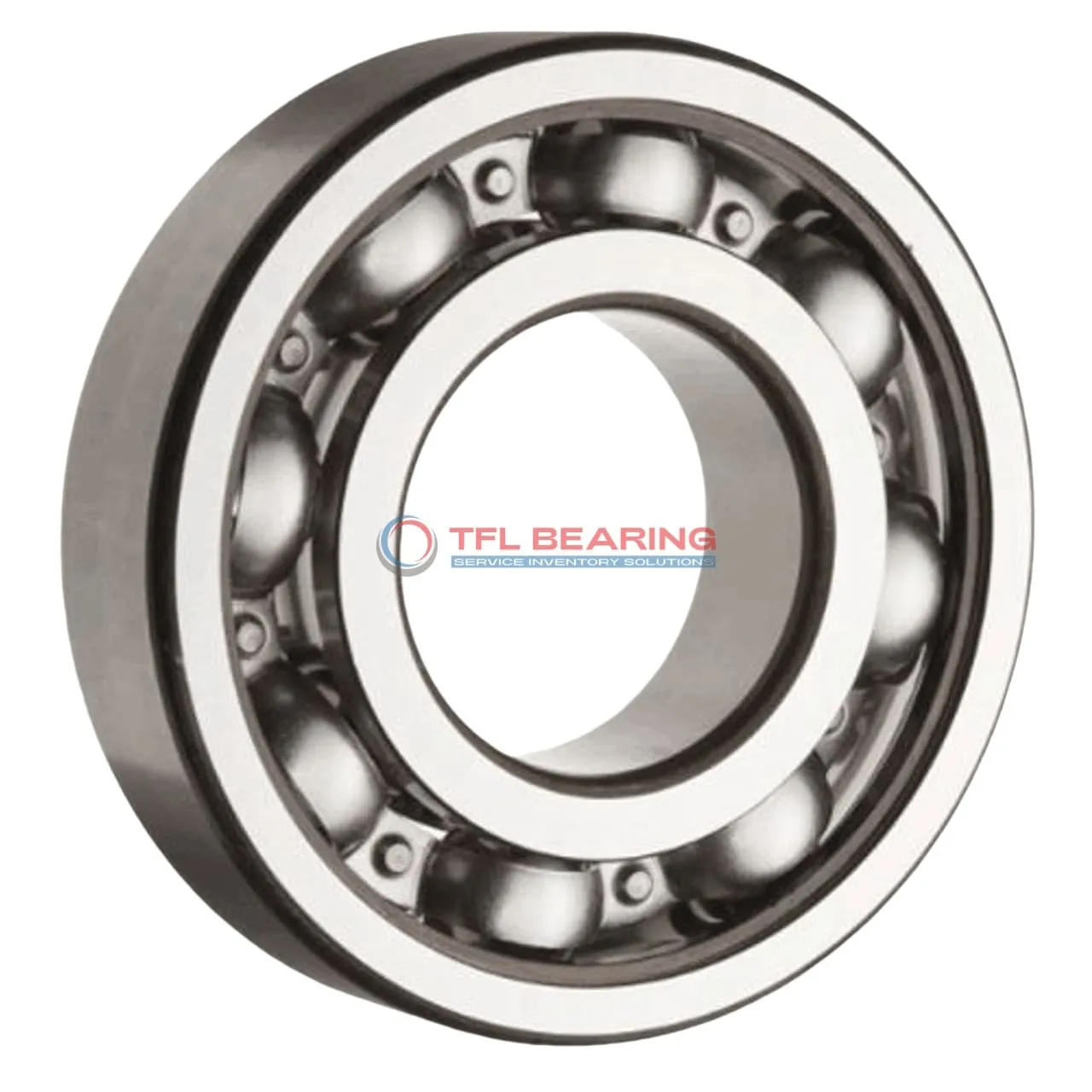

Single Row Deep Groove Ball Bearings 6084 M

Single Row Deep Groove Ball Bearings 6084 M

The 6084 M is a single-row deep groove ball bearing with a 420mm bore and 620mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 113978 lbf and operates at speeds up to 1600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 91.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6084 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 90 mm
  • Width Tolerance -0.45mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 113978 lbf
  • Static Radial Load 197832 lbf
  • Max Speed 1600 rpm
  • Weight 91500 g
Single Row Deep Groove Ball Bearings 6084 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6084 M Bearing

6084 M Bearing is built with chrome steel rings and balls, offering excellent radial load capacity.
Its dynamic radial load rating of 113,978 lbf ensures reliable performance in heavy-duty applications.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 1,600 rpm, it delivers consistent operation in various conditions.

How Is 6084 M Bearing Engineered for Reliability?

6084 M Bearing features a single-row deep groove design, optimised for radial load support.
The chrome steel construction provides durability, even in temperatures ranging from -30° to 120°C.
Its precision P6 tolerance class ensures smooth and accurate rotation.
The open seal design allows for easy lubrication and maintenance.

Built for Durability: 6084 M Bearing

6084 M Bearing’s robust design handles static radial loads up to 197,832 lbf.
The stainless steel cage enhances longevity by minimising wear between components.
Its wide temperature range makes it suitable for diverse industrial environments.
The metric sizing ensures compatibility with standard machinery.

Steel vs Ceramic Bearings: Strengths of 6084 M Bearing

6084 M Bearing uses chrome steel for both rings and balls, balancing strength and affordability.
This material choice provides excellent resistance to wear and fatigue.
The bearing’s large 420 mm bore accommodates substantial shaft sizes.
With a weight of 91.5 kg, it’s designed for stability in heavy applications.

Why Choose 6084 M Bearing for Precision Tasks?

6084 M Bearing’s P6 tolerance class ensures high precision in radial load applications.
The deep groove design allows for smooth rotation under substantial loads.
Its 620 mm outer diameter provides ample support for large-scale machinery.
The compliant REACH status confirms its adherence to environmental standards.

Application

Industrial Uses of 6084 M Bearing
The 6084 M Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. Its open seal type allows for easy lubrication, making maintenance straightforward in demanding environments.

In wind turbine systems, 6084 M Bearing plays a key role in supporting rotor shafts, ensuring smooth rotation even under varying wind conditions. The P6 tolerance class ensures precise alignment, which is vital for long-term reliability.

For railway applications, 6084 M Bearing is often found in axle boxes, where its chrome steel construction withstands constant vibration and heavy loads. The stainless steel cage adds durability, making it a dependable choice for transport infrastructure.

Automotive vs Aerospace: Applications of 6084 M Bearing
In automotive manufacturing, 6084 M Bearing is used in large gearboxes and drivetrains, where its high static radial load capacity is essential. The metric sizing ensures compatibility with a range of heavy vehicles.

For aerospace ground equipment, 6084 M Bearing supports components like cargo loaders and maintenance machinery. Its temperature range of -30° to 120°C makes it suitable for outdoor use in various climates.

Where Is 6084 M Bearing Used?
You’ll often spot 6084 M Bearing in mining equipment, such as conveyor systems, where its durability handles abrasive materials. The large bore size accommodates heavy shafts, making it a practical solution for harsh conditions.

In food processing machinery, 6084 M Bearing’s open design allows for easy cleaning, meeting hygiene standards. The chrome steel rings resist corrosion, ensuring longevity even in wet environments.

Built for Heavy-Duty Use: 6084 M Bearing
The 6084 M Bearing is ideal for construction equipment like cranes, where its high dynamic radial load capacity ensures reliable performance. The stainless steel cage prevents wear, even under continuous stress.

In marine applications, 6084 M Bearing is used in propeller shafts, thanks to its resistance to saltwater corrosion. The wide temperature range also makes it suitable for both cold and warm waters.
