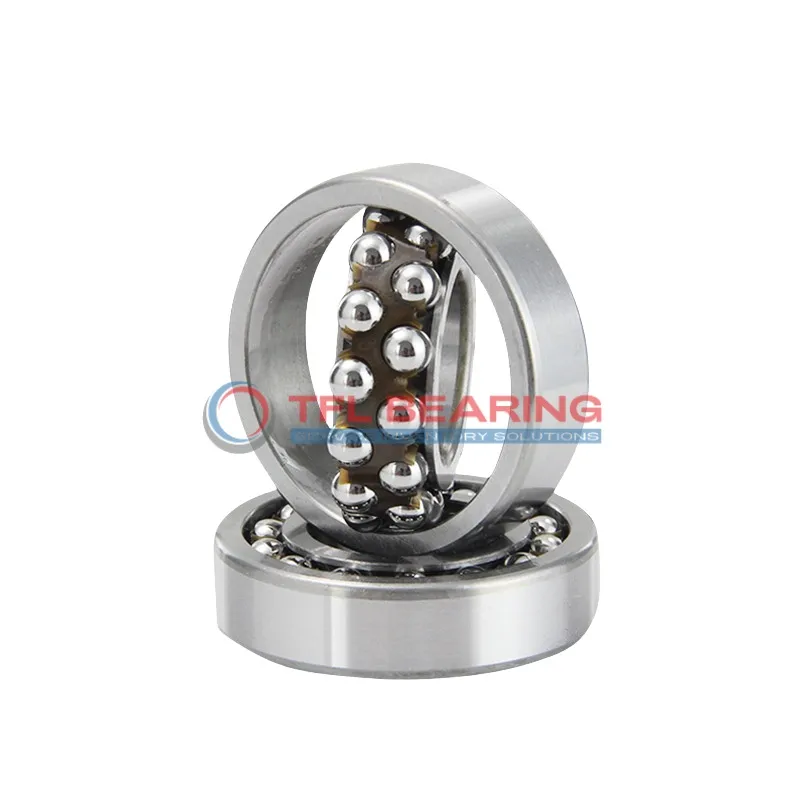

Self Aligning Ball Bearings 2308SKC3

Self Aligning Ball Bearings 2308SKC3

The 2308SKC3 is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 7605 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and sealed construction help maintain alignment and keep contaminants out, while the nylon cage reduces friction. The bearing is pre-lubricated for easy use and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.96kg, it’s a robust choice for heavy-duty tasks. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2308SKC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.4 mm
  • Internal Diameter On Outer Ring 81.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.96 kg
Self Aligning Ball Bearings 2308SKC3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2308SKC3 Bearing for Precision Tasks?

2308SKC3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 7605 lbf makes it suitable for demanding applications.

The nylon cage in 2308SKC3 Bearing helps reduce friction and noise, enhancing operational smoothness.
With a maximum speed of 4,800 rpm, it balances performance and durability.

2308SKC3 Bearing is sealed and pre-lubricated, reducing maintenance needs and extending service life.
Its C3 radial clearance allows for slight misalignment, making it versatile in various setups.

The temperature range of -30° to 110 °C ensures reliable performance in diverse environments.
2308SKC3 Bearing’s tapered bore design simplifies installation and improves fit accuracy.

Application

Industrial Uses of 2308SKC3 Bearing
2308SKC3 Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2308SKC3 Bearing supports radial loads in components like wheel hubs and transmissions. Its nylon cage reduces friction, making it suitable for high-speed operations.

For robotics, 2308SKC3 Bearing’s double-row construction provides stability in articulated joints. The chrome steel balls and rings offer reliable performance under continuous movement.

In household appliances like washing machines, 2308SKC3 Bearing handles unbalanced loads with ease. The lubricated design ensures quiet operation, enhancing user comfort.

Medical imaging devices benefit from 2308SKC3 Bearing’s precision and low maintenance. The C3 radial clearance allows for thermal expansion, crucial in sensitive equipment.
