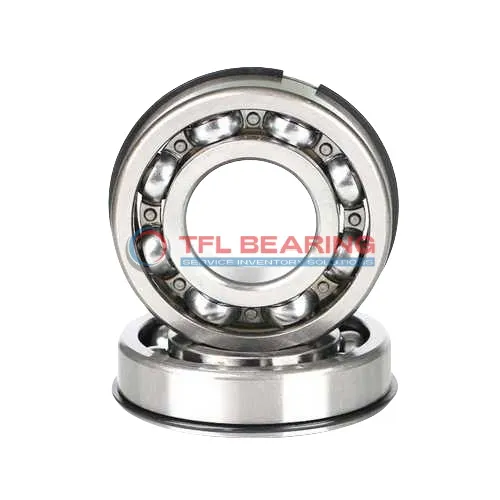

Snap Ring Groove Ball Bearings 310 NR/VK504

Snap Ring Groove Ball Bearings 310 NR/VK504

The 310 NR/VK504 is a snap ring groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14478 lbf and operates smoothly at speeds reaching 7000 RPM.

Its open design and snap ring feature on the outer ring ensure secure fitting, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery where radial loads and secure mounting are key, such as pumps or conveyors.

Weighing 1.15kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 310 NR/VK504
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 116.6 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 14478 lbf
  • Static Radial Load 11690 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 1.15 kg
Snap Ring Groove Ball Bearings 310 NR/VK504 dimension drawing
Download DWG Download PDF

Features

Why Choose 310 NR/VK504 Bearing for Precision Tasks?

310 NR/VK504 Bearing features a snap ring groove design, ensuring secure mounting and easy installation.
The chrome steel construction enhances durability, making it suitable for radial load applications.

With a dynamic radial load capacity of 14478 lbf, it handles demanding conditions reliably.
Its ABEC 1 tolerance class ensures consistent performance in precision tasks.

The open seal type allows for easy lubrication, reducing maintenance needs.
Operating smoothly up to 7,000 rpm, it balances speed and stability.

Designed for temperatures from -30°C to 120°C, it performs well in varied environments.
The snap ring outer ring provides added security, preventing misalignment during operation.

Application

Industrial Uses of 310 NR/VK504 Bearing
The 310 NR/VK504 Bearing is commonly used in industrial machinery, such as conveyor systems and pumps, where its snap ring groove ensures secure mounting. Its open design allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 310 NR/VK504 Bearing fits well in gearboxes and wheel hubs, providing reliable radial load support. The chrome steel construction ensures durability even under constant stress.

For automation equipment, 310 NR/VK504 Bearing’s precision and snap ring feature make it ideal for robotic arms and assembly lines. Its ABEC 1 tolerance ensures smooth performance in repetitive tasks.

Where Is 310 NR/VK504 Bearing Used?
You’ll often find 310 NR/VK504 Bearing in household appliances like washing machines, where its radial load capacity handles constant motion. The snap ring design simplifies installation and maintenance.

In medical devices, 310 NR/VK504 Bearing’s chrome steel balls and cage offer quiet operation for imaging equipment. Its ISO P0 tolerance ensures consistent performance in sensitive environments.
