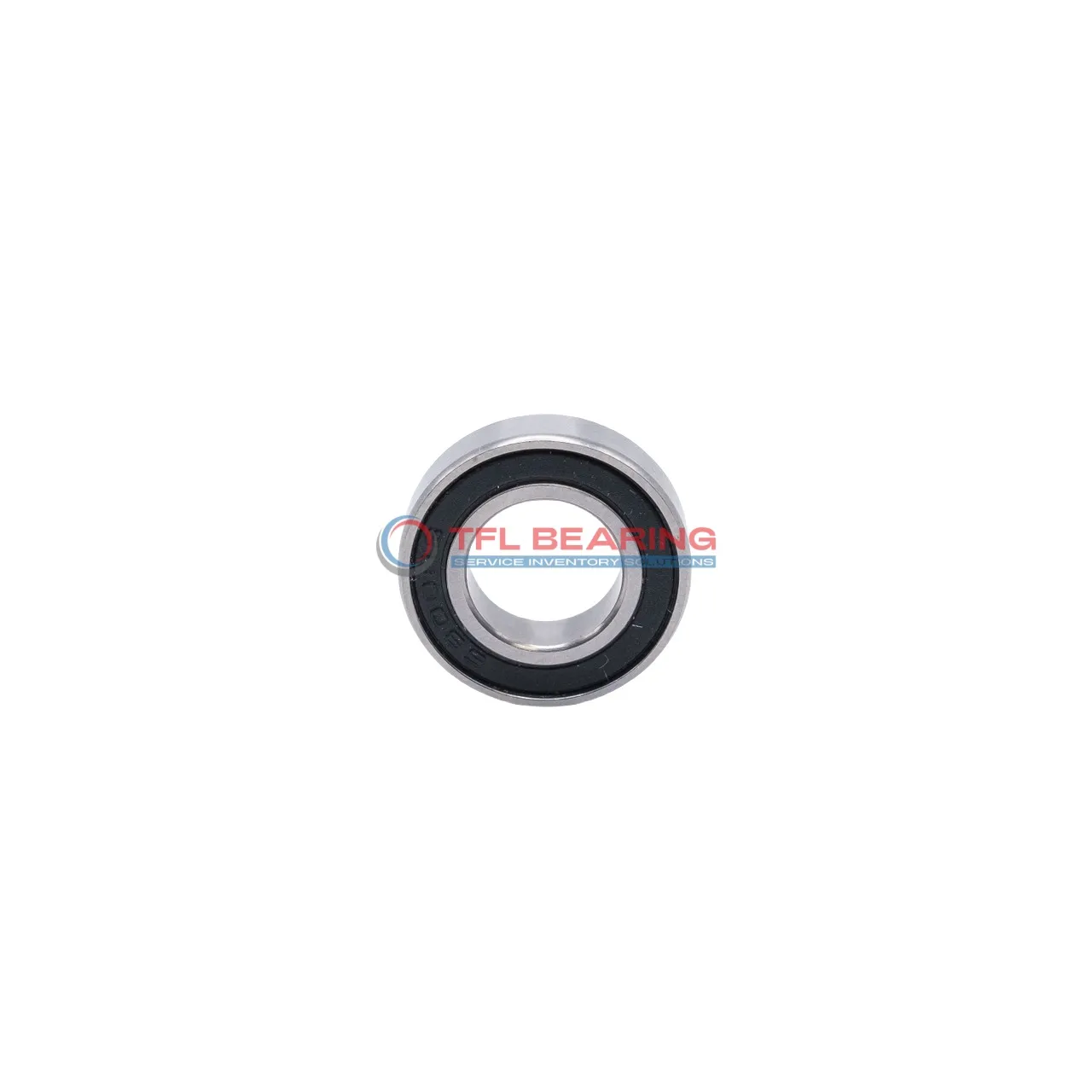

Stainless Steel Deep Groove Ball Bearings W 61807-2RS1

The W 61807-2RS1 is a compact stainless steel deep groove ball bearing, measuring 35mm by 47mm by 7mm. It handles radial loads up to 834 lbf and spins smoothly at speeds up to 8500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability.

This bearing works well in temperatures from -30°C to 120°C, suitable for damp or harsh environments. It’s interchangeable with SKF models for easy replacement.

Ideal for small machinery, food processing equipment, or applications where rust resistance is key. Weighing just 0.03kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number W 61807-2RS1
Brand TFL
Interchangeable SKF
Bore Dia 35 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 47 mm
Outer Dia Tolerance -0.011mm to 0
Width 7 mm
Width Tolerance -0.12mm to 0
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Tolerance Class P0
Radial Clearance Trade No CN
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Stainless Steel
Dynamic Radial Load 834 lbf
Static Radial Load 753 lbf
Temperature Range -30° to 120 °C
Lubrication Grease
RoHS Compliant
REACH Compliant
Max Speed 8500 rpm
Weight 0.03 kg
Price（$） 16.08

Stainless Steel Deep Groove Ball Bearings W 61807-2RS1 dimension drawing

Download DWG Download PDF

Features

Why Choose W 61807-2RS1 Bearing for Precision Tasks?

W 61807-2RS1 Bearing is crafted with stainless steel rings and balls, ensuring excellent corrosion resistance and durability.
Its sealed design keeps contaminants out, making it ideal for environments where cleanliness is crucial.
The bearing handles dynamic radial loads up to 834 lbf, providing reliable performance in precision applications.
With a maximum speed of 8,500 rpm, it offers smooth operation and long service life.

Application

Practical Applications of W 61807-2RS1 Bearing
W 61807-2RS1 Bearing works well in industrial settings, especially for small machinery like compact pumps or electric motors. Its sealed design keeps out dust and moisture, making it reliable in harsh conditions.

In automotive applications, W 61807-2RS1 Bearing fits nicely into components like alternators or small gearboxes. The stainless steel construction helps resist corrosion, which is handy in wet or salty environments.

For home appliances, W 61807-2RS1 Bearing is a quiet performer in items like blenders or power tools. The grease lubrication ensures smooth operation without needing frequent maintenance.

Medical devices benefit from W 61807-2RS1 Bearing’s precision, particularly in portable equipment where space is limited. The P0 tolerance class guarantees consistent performance for sensitive instruments.

Automation systems often use W 61807-2RS1 Bearing in compact robotic arms or conveyor guides. Its low-profile design and radial load capacity make it a versatile choice for tight spaces.
