Stainless Steel Deep Groove Ball Bearings W 6008-2Z

Stainless Steel Deep Groove Ball Bearings W 6008-2Z

The W 6008-2Z is a stainless steel deep groove ball bearing with a 40mm bore and 68mm outer diameter, designed for radial loads. It handles dynamic loads up to 3282 lbf and spins smoothly at speeds up to 11000 RPM.

Its shielded design keeps grease in and contaminants out, extending its lifespan. Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, making replacements straightforward. Ideal for food processing or marine applications where moisture resistance is key.

Weighing just 0.18kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6008-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 68 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3282 lbf
  • Static Radial Load 2563 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.18 kg
  • Price（$） 32.85

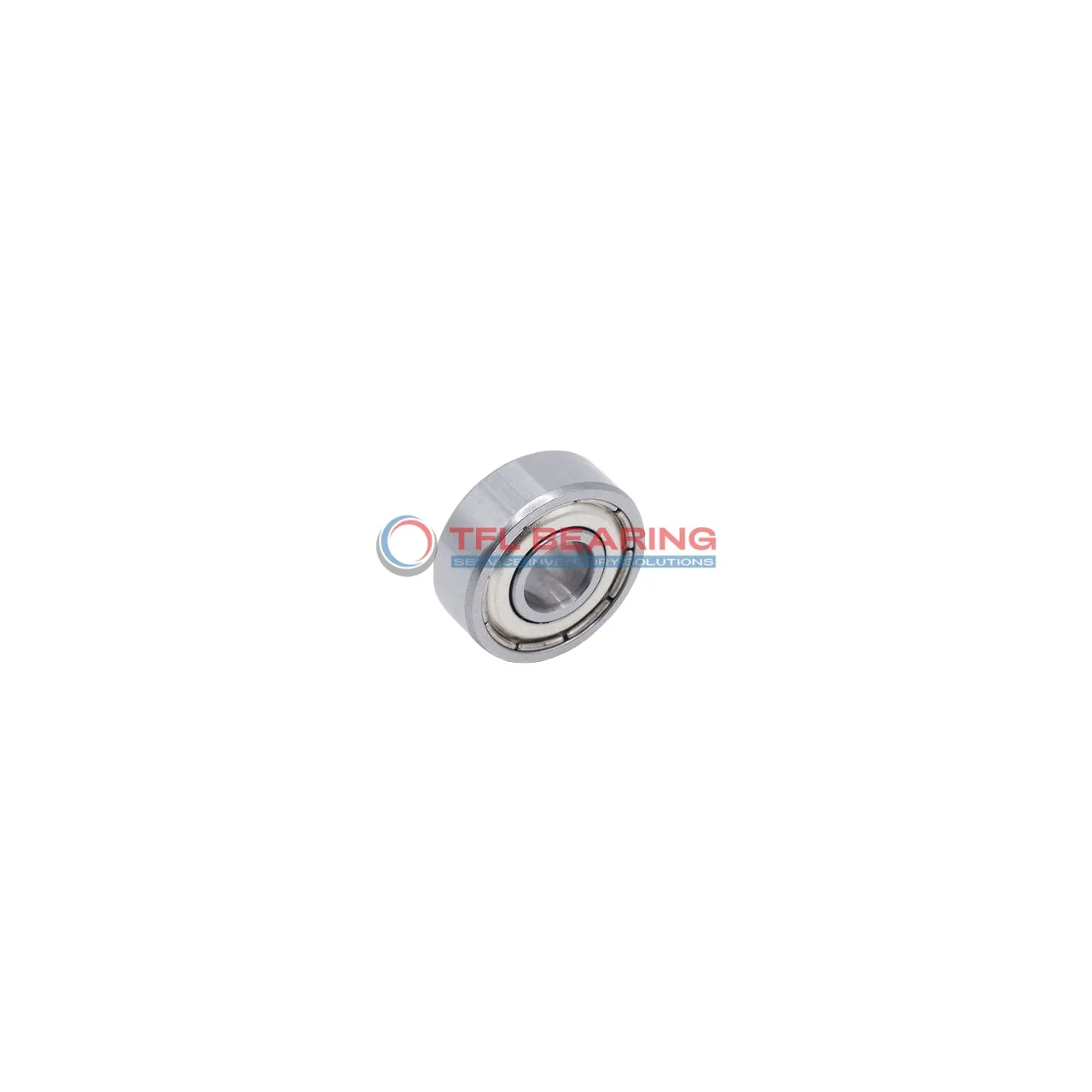

Stainless Steel Deep Groove Ball Bearings W 6008-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 6008-2Z Bearing for Precision Tasks?

W 6008-2Z Bearing features stainless steel construction, offering excellent resistance to corrosion and wear.
Its shielded design protects against contaminants, ensuring smooth operation in various environments.

The bearing’s dynamic radial load capacity of 3282 lbf makes it suitable for demanding radial applications.
With a maximum speed of 11,000 rpm, it delivers reliable performance without compromising efficiency.

W 6008-2Z Bearing’s single-row design and grease lubrication reduce maintenance needs.
Its P0 tolerance class ensures consistent precision, ideal for high-accuracy tasks.

Application

Common Applications of W 6008-2Z Bearing
W 6008-2Z Bearing is widely used in industrial equipment like pumps and electric motors, where its shielded design helps keep contaminants out. The stainless steel construction makes it suitable for environments where corrosion resistance is important.

In automotive applications, W 6008-2Z Bearing can be found in components like alternators and water pumps, providing reliable performance under radial loads. Its metric sizing ensures compatibility with various vehicle designs.

For food processing machinery, W 6008-2Z Bearing’s stainless steel material meets hygiene standards while maintaining durability. The grease lubrication ensures smooth operation even in high-speed scenarios.

In household appliances like washing machines, W 6008-2Z Bearing offers quiet and efficient performance. Its compact design fits well in space-constrained applications.
