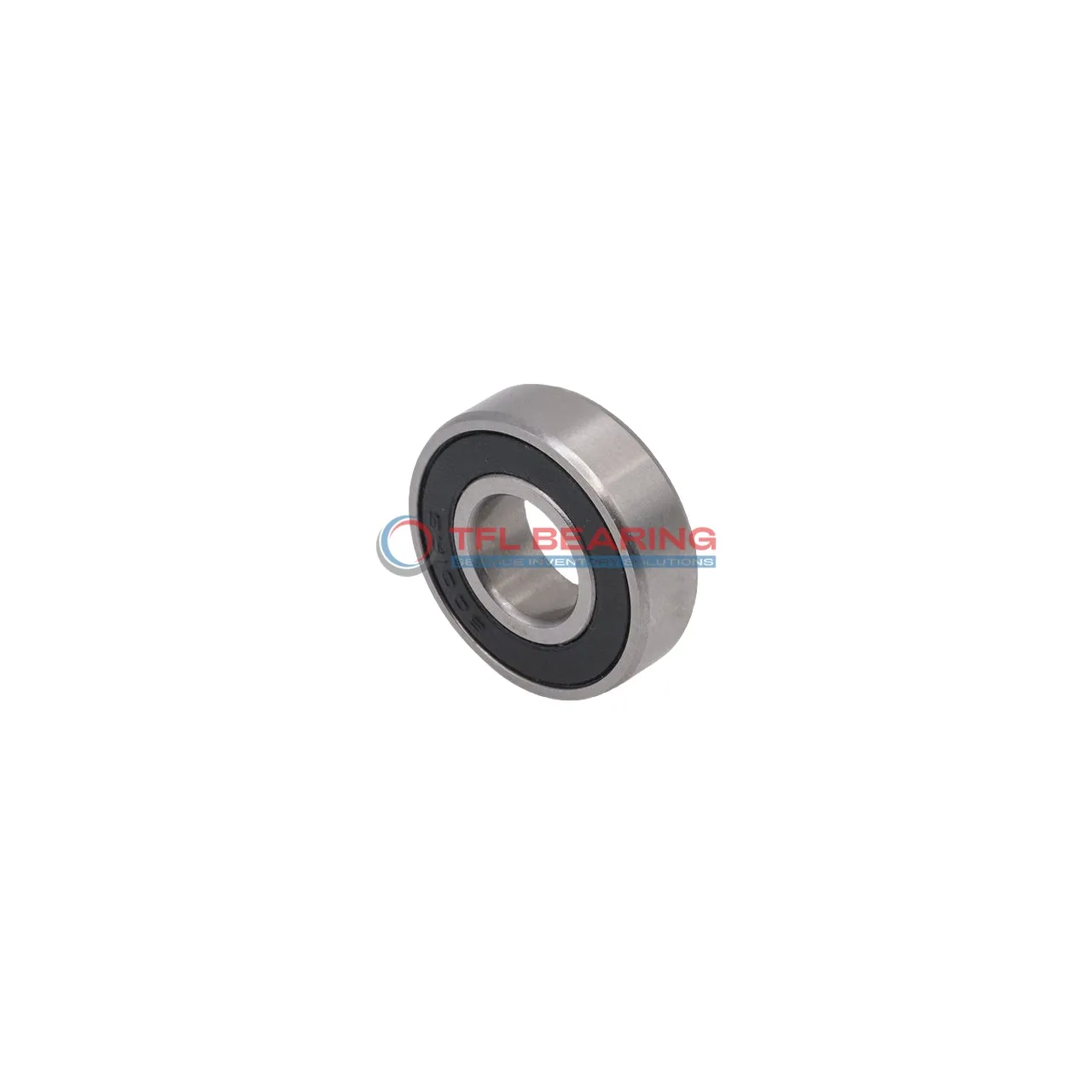

Stainless Steel Deep Groove Ball Bearings W 6000-2RS1/W64

Stainless Steel Deep Groove Ball Bearings W 6000-2RS1/W64

The W 6000-2RS1/W64 is a compact stainless steel deep groove ball bearing, measuring 10mm in bore and 26mm in outer diameter. Its sealed design keeps dirt out and solid oil lubrication ensures smooth operation.

With a dynamic radial load capacity of 892 lbf, it handles moderate loads while spinning at speeds up to 40,000 RPM. The stainless steel construction resists corrosion, making it suitable for damp environments.

This single-row bearing fits neatly in tight spaces with its 8mm width. It’s interchangeable with SKF models for easy replacement.

Ideal for small machinery, food processing equipment, or applications where rust resistance is needed. Works in temperatures from -30°C to 120°C and complies with REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6000-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 10 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 26 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 892 lbf
  • Static Radial Load 441 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 40000 rpm
  • Weight 0.017 kg
  • Price（$） 13.39
Stainless Steel Deep Groove Ball Bearings W 6000-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6000-2RS1/W64 Bearing for Precision Tasks?

W 6000-2RS1/W64 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.
Its sealed design keeps contaminants out, ensuring smooth operation in various environments.

The solid oil lubrication reduces maintenance needs while providing consistent performance.
With a maximum speed of 40,000 rpm, it delivers reliable efficiency for precision applications.

W 6000-2RS1/W64 Bearing’s ABEC 1 tolerance ensures consistent quality and performance.
Its dynamic radial load capacity of 892 lbf makes it suitable for demanding radial load tasks.

Application

Industrial Uses of W 6000-2RS1/W64 Bearing
W 6000-2RS1/W64 Bearing is commonly used in conveyor systems and small machinery, where its sealed design keeps contaminants out. The stainless steel construction ensures it handles moderate radial loads with ease.

What Makes W 6000-2RS1/W64 Bearing a Preferred Choice?
In automotive applications like electric window motors, W 6000-2RS1/W64 Bearing offers quiet and reliable performance. Its solid oil lubrication reduces maintenance needs, making it ideal for long-term use.

Perfect Fit for Automation: W 6000-2RS1/W64 Bearing
This bearing works well in robotic arms and 3D printers, thanks to its compact size and smooth operation. The ABEC 1 tolerance ensures consistent performance in precision tasks.

Medical vs Industrial: Where W 6000-2RS1/W64 Bearing Excels
While suitable for lab equipment like centrifuges, W 6000-2RS1/W64 Bearing also shines in food processing machinery. Its stainless steel material resists corrosion in both environments.

How Does W 6000-2RS1/W64 Bearing Support High-Speed Operations?
With a max speed of 40,000 rpm, W 6000-2RS1/W64 Bearing is great for small fans and power tools. The sealed design also helps maintain performance in dusty conditions.
