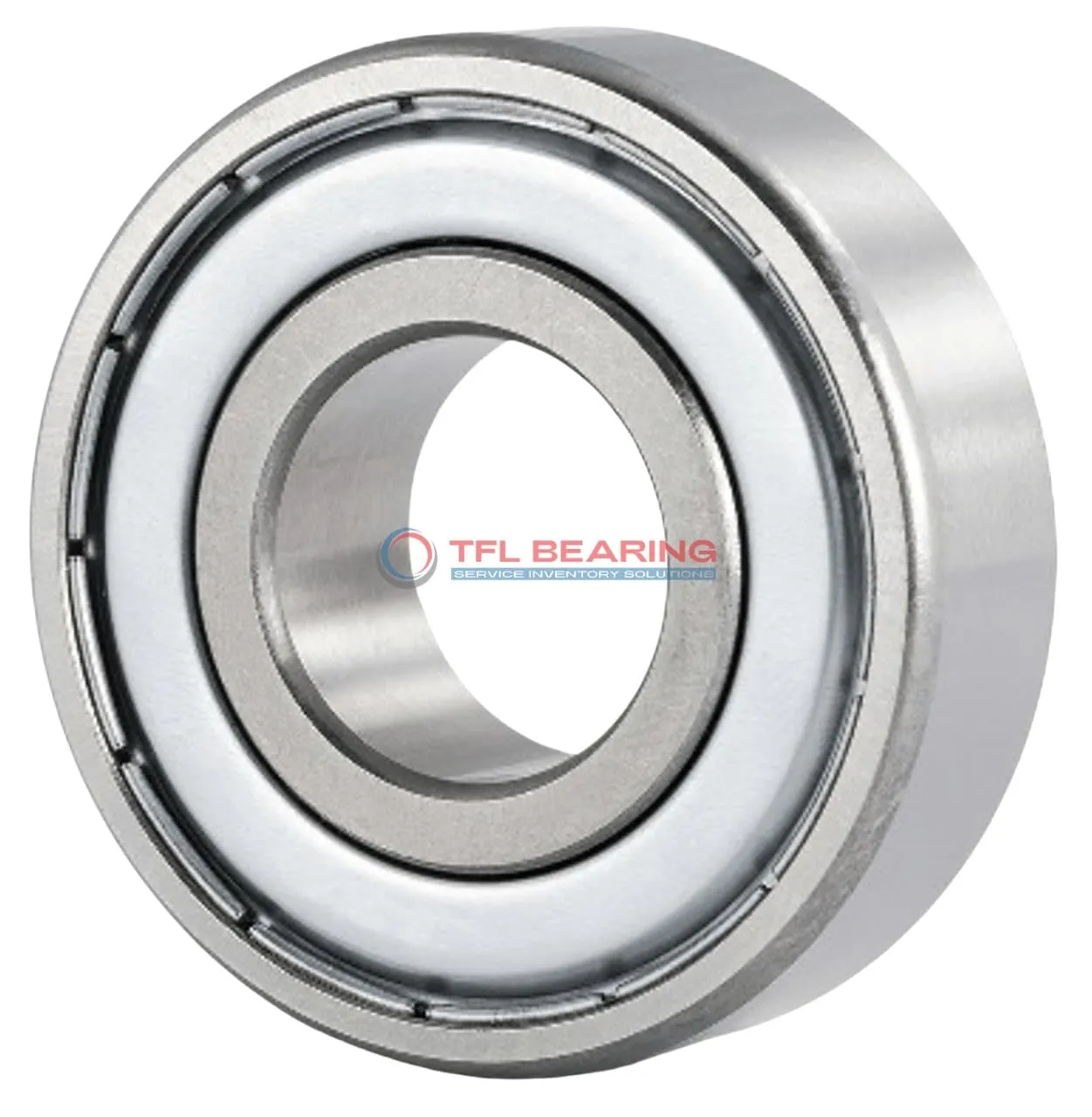

Single Row Deep Groove Ball Bearings 624-2Z/LHT23

Single Row Deep Groove Ball Bearings 624-2Z/LHT23

The 624-2Z/LHT23 is a compact single-row deep groove ball bearing, measuring just 4mm by 13mm by 5mm. Made from durable chrome steel, it handles radial loads up to 249 lbf and spins smoothly at speeds up to 40,000 RPM.

Its shielded design keeps out dust and debris, while the chrome steel cage ensures reliable performance. The bearing operates well in temperatures from -30°C to 120°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. Ideal for small machinery, electric motors, or appliances where space is limited.

Weighing only 3.1g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 624-2Z/LHT23
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 4 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 13 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 249 lbf
  • Static Radial Load 88 lbf
  • Max Speed 40000 rpm
  • Weight 3.1 g
  • price（$） 3.564
Single Row Deep Groove Ball Bearings 624-2Z/LHT23 dimension drawing
Download DWG Download PDF

Features

How Does 624-2Z/LHT23 Bearing Reduce Friction?

624-2Z/LHT23 Bearing features a single-row deep groove design, optimised for smooth radial load handling.
Its chrome steel construction ensures durability while reducing friction during operation.

The shielded design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 40,000 rpm, it offers reliable efficiency for precision applications.

624-2Z/LHT23 Bearing’s ABEC 1 tolerance class guarantees consistent performance under radial loads.
Its compact size (4 mm×13 mm×5 mm) makes it suitable for space-constrained installations.

Application

Where Is 624-2Z/LHT23 Bearing Used?
624-2Z/LHT23 Bearing is commonly used in small electric motors, such as those found in household appliances like fans and blenders. Its compact size and shielded design help keep dust and debris out, ensuring smooth operation.

In automotive applications, 624-2Z/LHT23 Bearing fits well in components like alternators and small gearboxes. The chrome steel construction provides good durability for everyday driving conditions.

For hobbyist projects like RC cars or drones, 624-2Z/LHT23 Bearing offers reliable performance at an affordable price. Its lightweight design doesn’t add unnecessary bulk to small-scale builds.

In office equipment like printers and scanners, 624-2Z/LHT23 Bearing helps reduce noise and vibration. The shielded seals also prevent paper dust from affecting its performance over time.
