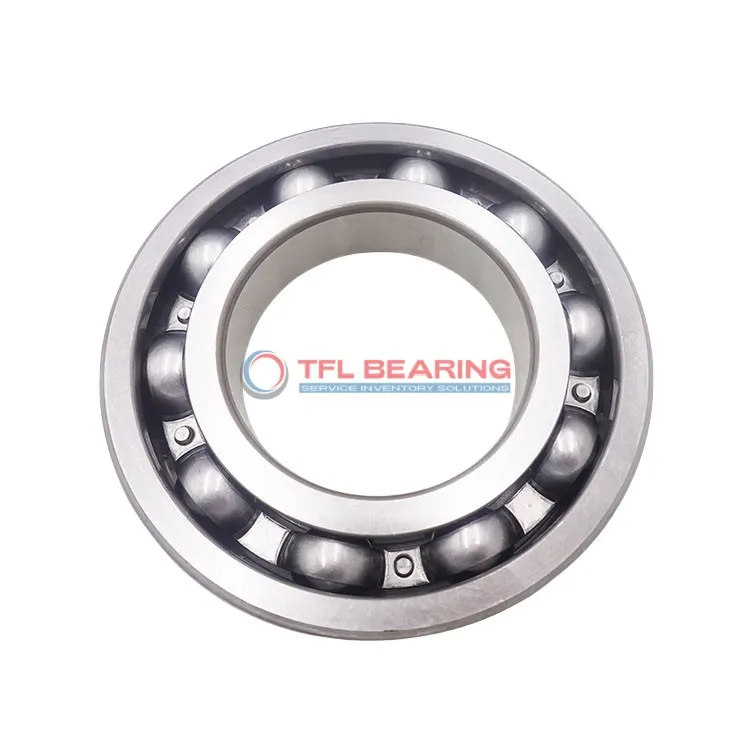

Single Row Deep Groove Ball Bearings RMS 11

Single Row Deep Groove Ball Bearings RMS 11

The RMS 11 is a single-row deep groove ball bearing with a 1.375-inch bore and 3.5-inch outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 9217 lbf and can spin at speeds up to 15,000 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 0.64kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RMS 11
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 1.375"
  • Bore Dia Tolerance -0.00031" to 0.00019"
  • Outer Dia 3.5"
  • Outer Dia Tolerance -0.00129" to -0.00078"
  • Width 0.875"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 9217 lbf
  • Static Radial Load 5395 lbf
  • Max Speed 15000 rpm
  • Weight 0.64 kg
  • price（$） 19.377
Single Row Deep Groove Ball Bearings RMS 11 dimension drawing
Download DWG Download PDF

Features

Performance Features of RMS 11 Bearing

RMS 11 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9217 lbf, ensuring reliable performance in various applications.

The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 15,000 rpm, it delivers both durability and efficiency.

RMS 11 Bearing operates smoothly in temperatures ranging from -30° to 120°C.
Its open design allows for easy lubrication and maintenance, making it a practical choice.

The P6 tolerance class ensures high precision, suitable for demanding tasks.
This bearing is interchangeable with SKF models, providing flexibility for replacements.

Application

Common Applications of RMS 11 Bearing
RMS 11 Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its single-row design ensures efficient radial load handling. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, RMS 11 Bearing fits well in wheel hubs and transmissions, providing reliable performance under varying loads. Its inch sizing makes it a preferred choice for American and British vehicle models.

For automation systems, RMS 11 Bearing’s chrome steel construction ensures durability in robotic arms and assembly lines. The stainless steel cage adds to its longevity, even in continuous operation.

In household appliances like washing machines, RMS 11 Bearing offers smooth and quiet operation. Its compact size and robust design make it ideal for space-constrained applications.

Medical devices such as dental drills benefit from RMS 11 Bearing’s precision and low friction. The P6 tolerance class ensures consistent performance in critical healthcare equipment.
