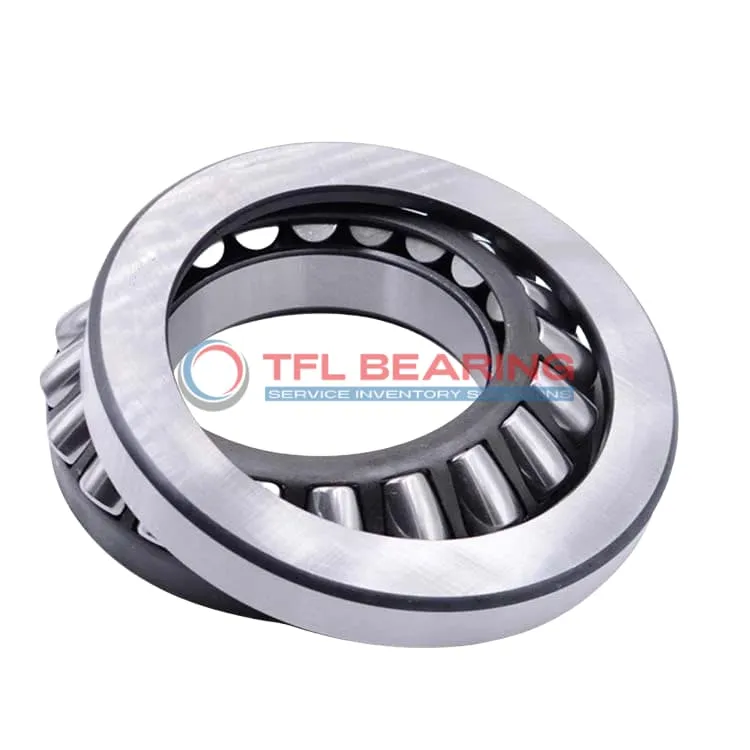

Spherical Roller Thrust Bearings 29268

Spherical Roller Thrust Bearings 29268

The 29268 is a spherical roller thrust bearing with a large 340mm bore and 460mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 254034 lbf and operates smoothly at speeds up to 1300 RPM.

Made from sturdy steel, this single-row bearing features a robust cage design for reliable performance. Its spherical rollers help manage misalignment, making it suitable for demanding environments.

With a temperature range of -30°C to 100°C, it works well in various industrial settings. Regular lubrication is needed to maintain its efficiency over time.

Weighing 33.5kg, this bearing is ideal for heavy machinery like mining equipment or large gearboxes. It’s interchangeable with SKF models and complies with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29268
  • Brand TFL
  • Interchangeable SKF
  • Size 340 mm x 460 mm x 73 mm
  • Bore Dia 340 mm
  • Bore Dia Tolerance -0.04 to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045 to 0
  • Width 73 mm
  • Outside Diameter(d1) 445 mm
  • Shoulder Diameter Outer Ring (D1) 395 mm
  • Height Shaft Washer Cage(B1) 69 mm
  • Height Housing Washer(C) 37.5 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 183 mm
  • Chamfer Dimension Shaft Washer(r1,2) 3 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 254034 lbf
  • Static Thrust Load 1213968 lbf
  • Max Speed 1300 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 33.5 kg
  • Height Tolerance -0.125 to 0
  • Price（$） 1696.797

Features

Performance Features of 29268 Bearing

29268 Bearing is built with steel rollers and cage, offering robust performance under combined loads.
Its dynamic thrust load capacity of 254034 lbf ensures reliability in heavy-duty applications.

The spherical roller design allows for smooth operation, even under misalignment conditions.
With a maximum speed of 1300 rpm, it balances efficiency and durability.

29268 Bearing operates effectively in temperatures ranging from -30 to 100 °C.
Its steel construction provides long-lasting performance with minimal maintenance required.

The precise dimensions and tolerances ensure easy installation and optimal fit.
Weighing 33.5 kg, it is designed for stability and strength in industrial settings.

Application

Industrial Uses of 29268 Bearing
The 29268 Bearing is commonly used in heavy machinery like mining equipment and large conveyor systems, where its spherical roller design handles combined loads efficiently. Its robust steel construction ensures durability even in demanding environments.

In automotive applications, 29268 Bearing supports large drivetrain components, such as heavy-duty truck transmissions. The high static thrust load capacity makes it reliable for prolonged use under stress.

For wind turbines, 29268 Bearing’s ability to manage misalignment and heavy loads is crucial for smooth operation. The metric sizing ensures compatibility with international turbine designs.

In industrial presses, 29268 Bearing’s high dynamic thrust load capacity helps maintain precision under repetitive stress. The steel cage enhances longevity, reducing maintenance needs.
