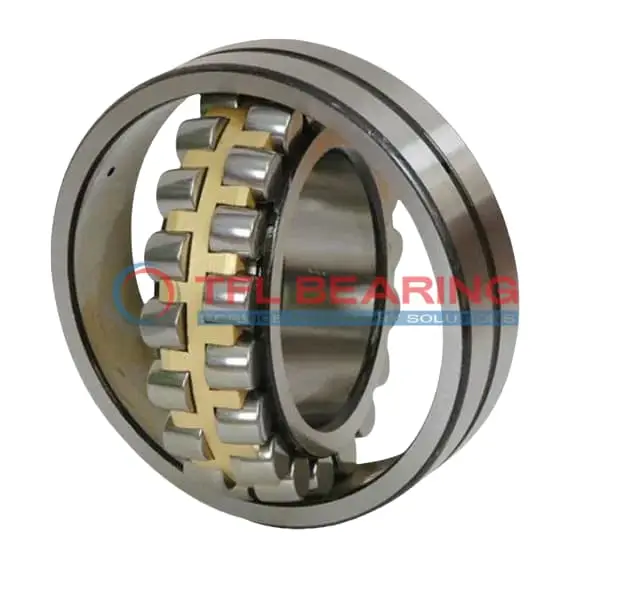

239/750 CAK/C08W507 Double Row Spherical Roller Bearing

239/750 CAK/C08W507 Double Row Spherical Roller Bearing

The 239/750 CAK/C08W507 is a double-row spherical roller bearing with a large 750mm bore and 1000mm outer diameter, built from tough chrome steel. It handles combined loads up to 1,379,877 lbf and runs smoothly at speeds up to 560 RPM.

Its brass cage and open design ensure durability and easy lubrication, while the tapered bore provides a secure fit. The bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 410kg, it’s a robust choice for demanding settings. Compliant with RoHS and REACH standards for safety and environmental responsibility.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 239/750 CAK/C08W507
  • Brand TFL
  • Interchangeable SKF
  • Size 750 x 1000 x 185 mm
  • Bore Dia 750 mm
  • Bore Dia Tolerance +0.08mm to 0
  • Outer Dia 1000 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 185 mm
  • Width Tolerance -0.75mm to 0
  • Shoulder Dia Of Inner Ring 838 mm
  • Shoulder/Recess Dia Of Outer Ring 930 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1379877 lbf
  • Static Radial Load 2967478 lbf
  • Max Speed 560 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 410 kg
  • Price （US$） US$15,552.68

Features

Performance Features of 239/750 CAK/C08W507 Bearing

239/750 CAK/C08W507 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 1,379,877 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 560 rpm, it delivers reliable performance under demanding conditions.

239/750 CAK/C08W507 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit and reducing maintenance efforts.

The open seal type allows for easy lubrication, extending the bearing’s service life.
Precision-engineered to P5 radial run-out standards, it ensures smooth and stable operation.

Application

Industrial Uses of 239/750 CAK/C08W507 Bearing
239/750 CAK/C08W507 Bearing is commonly used in heavy machinery like mining equipment and large conveyor systems, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbines, 239/750 CAK/C08W507 Bearing supports the main shaft, thanks to its high dynamic radial load capacity. The tapered bore design simplifies installation and maintenance in these critical applications.

For steel mills, 239/750 CAK/C08W507 Bearing’s chrome steel construction withstands extreme temperatures and heavy loads. Its open seal type allows for easy lubrication, extending service life in harsh environments.

What Makes 239/750 CAK/C08W507 Bearing a Preferred Choice?
239/750 CAK/C08W507 Bearing excels in paper manufacturing machinery, where its spherical roller design compensates for misalignment. The metric sizing ensures compatibility with European industrial standards.

In marine propulsion systems, 239/750 CAK/C08W507 Bearing’s high static radial load capacity provides reliable performance. The lubrication groove design helps maintain consistent operation in wet conditions.

Built for Heavy-Duty Use: 239/750 CAK/C08W507 Bearing
239/750 CAK/C08W507 Bearing is ideal for cement kilns, where its combined load handling and temperature resistance are crucial. The P5 radial run-out precision ensures minimal vibration during operation.

For railway applications, 239/750 CAK/C08W507 Bearing’s durability makes it suitable for axle boxes. The large bore diameter accommodates heavy shafts commonly found in rail transport.
