Snap Ring Groove Ball Bearings 6312-ZNRJEM

Snap Ring Groove Ball Bearings 6312-ZNRJEM

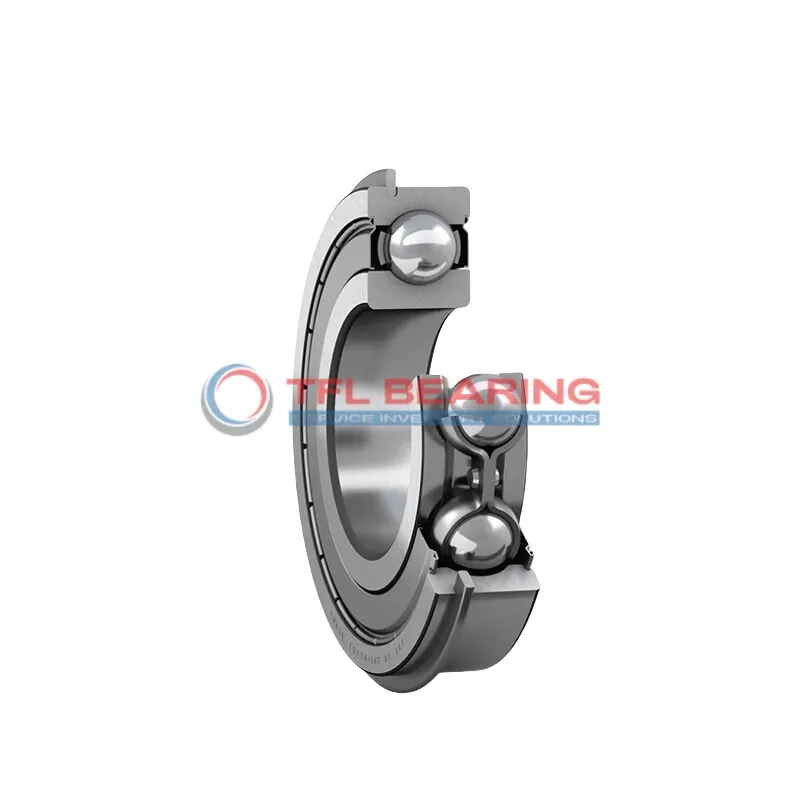

The 6312-ZNRJEM is a shielded snap ring groove ball bearing with a 60mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 18412 lbf and operates smoothly at speeds up to 5300 RPM.

Its snap ring design ensures secure fitting, while the shielded construction protects against contaminants. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for industrial machinery or automotive applications where radial loads and secure mounting are key.

Weighing 1699g, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312-ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 1699 g
  • Price（$） 44.6
Snap Ring Groove Ball Bearings 6312-ZNRJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6312-ZNRJEM Bearing for Precision Tasks?

6312-ZNRJEM Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The snap ring on the outer ring provides secure mounting, simplifying installation in various machinery.
With a dynamic radial load capacity of 18412 lbf, it handles demanding conditions reliably.

Operating at temperatures from -30°C to 120°C, 6312-ZNRJEM Bearing performs well in diverse environments.
Its ABEC 1 tolerance class ensures consistent precision for industrial applications.

Application

Industrial Uses of 6312-ZNRJEM Bearing
6312-ZNRJEM Bearing is commonly used in industrial machinery like pumps and gearboxes, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

Where Is 6312-ZNRJEM Bearing Used?
You’ll often find 6312-ZNRJEM Bearing in automotive applications such as wheel hubs and transmissions. Its chrome steel construction provides durability, while the ABEC 1 tolerance ensures reliable performance under radial loads.

Built for Heavy-Duty Use: 6312-ZNRJEM Bearing
6312-ZNRJEM Bearing handles heavy radial loads in construction equipment like conveyor systems. The snap ring groove simplifies installation, saving time during maintenance or replacements.

Automotive vs Industrial: Applications of 6312-ZNRJEM Bearing
In automotive settings, 6312-ZNRJEM Bearing supports smooth rotation in drivetrains. For industrial use, its shielded design and snap ring make it a go-to for machinery requiring long service life.
