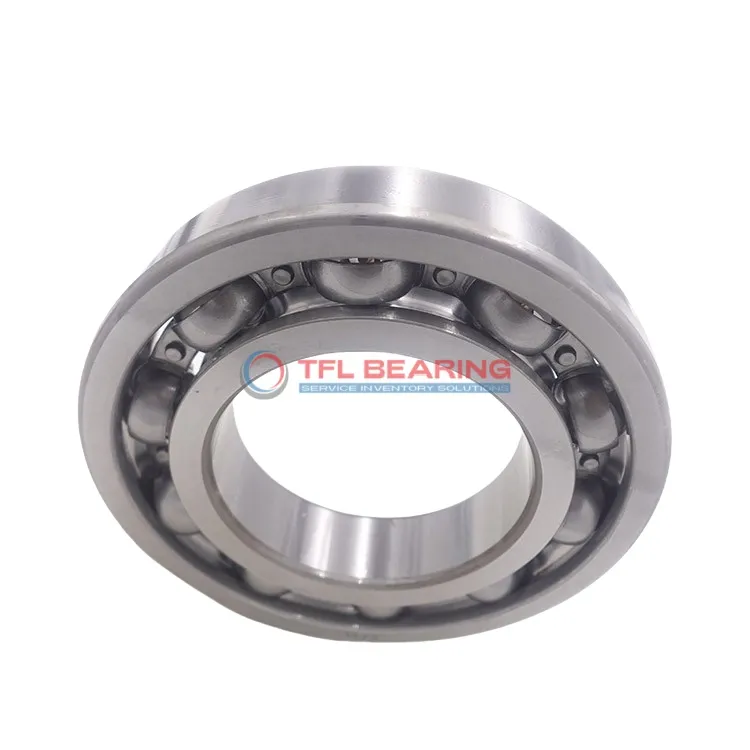

Single Row Deep Groove Ball Bearings 6328 M

Single Row Deep Groove Ball Bearings 6328 M

The 6328 M is a single-row deep groove ball bearing with a 140mm bore and 300mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 56427 lbf and operates smoothly at speeds up to 4300 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or pumps where radial loads are common.

Weighing 21.1kg, it’s built to last. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6328 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 62 mm
  • Width Tolerance -0.25mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 56427 lbf
  • Static Radial Load 55078 lbf
  • Max Speed 4300 rpm
  • Weight 21.1 kg
  • price（$） 390.105
Single Row Deep Groove Ball Bearings 6328 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6328 M Bearing

6328 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 56427 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, even at high speeds.

The single-row deep groove design of 6328 M Bearing provides reliable performance in various applications.
With a maximum speed of 4,300 rpm, it balances efficiency and durability.

6328 M Bearing operates in temperatures from -30° to 120°C, making it suitable for diverse environments.
Its P6 tolerance class ensures precise and consistent performance.

The open seal design of 6328 M Bearing allows for easy maintenance and inspection.
Its robust construction ensures long service life, reducing replacement costs.

Application

Industrial Uses of 6328 M Bearing
The 6328 M Bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its deep groove design handles radial loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 6328 M Bearing Used?
You’ll often find 6328 M Bearing in conveyor systems and agricultural equipment, thanks to its high load capacity and smooth operation. The open seal design makes it easy to maintain in dusty or humid conditions.

Built for Heavy-Duty Use: 6328 M Bearing
With a static radial load capacity of 55078 lbf, 6328 M Bearing is ideal for applications like gearboxes and large fans. Its P6 tolerance class ensures precision in high-performance settings.

Automotive vs Industrial: Applications of 6328 M Bearing
In automotive applications, 6328 M Bearing supports components like wheel hubs, while in industrial settings, it excels in machinery requiring robust radial load support. The metric sizing fits seamlessly into European and Asian designs.

Perfect Fit for Automation: 6328 M Bearing
The 6328 M Bearing works well in automated production lines and robotics, where its stainless steel cage reduces wear over time. Its temperature range of -30° to 120°C makes it versatile for various climates.
