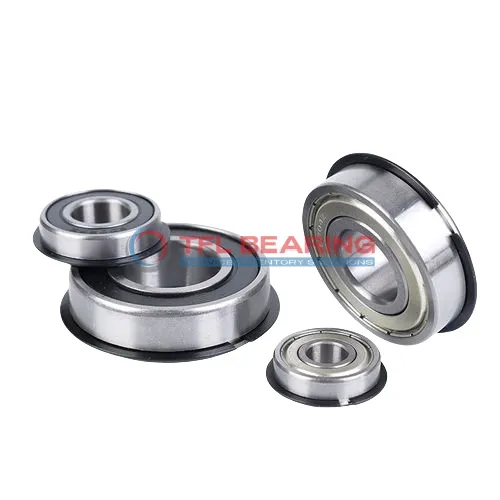

Snap Ring Groove Ball Bearings 6213-ZNR/C3VB464

Snap Ring Groove Ball Bearings 6213-ZNR/C3VB464

The 6213-ZNR/C3VB464 is a shielded snap ring groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 12859 lbf and operates smoothly at speeds up to 5300 RPM.

Its snap ring design ensures secure fitting, while the C3 radial clearance allows for thermal expansion in demanding conditions. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where secure mounting is essential.

Weighing 979g, it offers a robust build for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6213-ZNR/C3VB464
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 129.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 12859 lbf
  • Static Radial Load 9015 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 979 g
Snap Ring Groove Ball Bearings 6213-ZNR/C3VB464 dimension drawing
Download DWG Download PDF

Features

How Does 6213-ZNR/C3VB464 Bearing Reduce Friction?

6213-ZNR/C3VB464 Bearing features a shielded design, keeping contaminants out and reducing friction.
Its chrome steel construction ensures smooth operation, even under high radial loads.
The snap ring groove on the outer ring provides secure positioning, minimising movement and wear.
With a maximum speed of 5,300 rpm, it offers reliable performance in various applications.

Structural Advantages of 6213-ZNR/C3VB464 Bearing

6213-ZNR/C3VB464 Bearing is built with a single-row design, optimised for radial load handling.
The chrome steel cage and balls enhance durability, ensuring long service life.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.
The snap ring feature simplifies installation, saving time and effort.

Why Choose 6213-ZNR/C3VB464 Bearing for Precision Tasks?

6213-ZNR/C3VB464 Bearing’s shielded design protects against dust and debris, ensuring precise operation.
Its chrome steel components provide consistent performance under static radial loads up to 9015 lbf.
The ABEC 1 tolerance class guarantees reliable accuracy for standard applications.
With a temperature range of -30° to 120°C, it adapts to different working environments.

Application

Industrial Uses of 6213-ZNR/C3VB464 Bearing
6213-ZNR/C3VB464 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

What Makes 6213-ZNR/C3VB464 Bearing a Preferred Choice?
In automotive applications, 6213-ZNR/C3VB464 Bearing works well in alternators and transmission systems due to its radial load capacity. The C3 clearance allows for thermal expansion, ensuring reliable performance under varying temperatures.

Built for Heavy-Duty Use: 6213-ZNR/C3VB464 Bearing
For automation equipment, 6213-ZNR/C3VB464 Bearing supports smooth operation in robotic arms and conveyor belts. Its chrome steel construction provides durability, while the snap ring simplifies installation and maintenance.

Medical vs Industrial: Where 6213-ZNR/C3VB464 Bearing Excels
In medical devices, 6213-ZNR/C3VB464 Bearing offers precision in imaging equipment, thanks to its stable radial load handling. Industrial settings benefit from its robust design, especially in machinery requiring frequent maintenance.

Where Is 6213-ZNR/C3VB464 Bearing Used?
You’ll find 6213-ZNR/C3VB464 Bearing in household appliances like washing machines, where its shielded design protects against dust. The snap ring ensures it stays securely in place, even during high-speed cycles.
