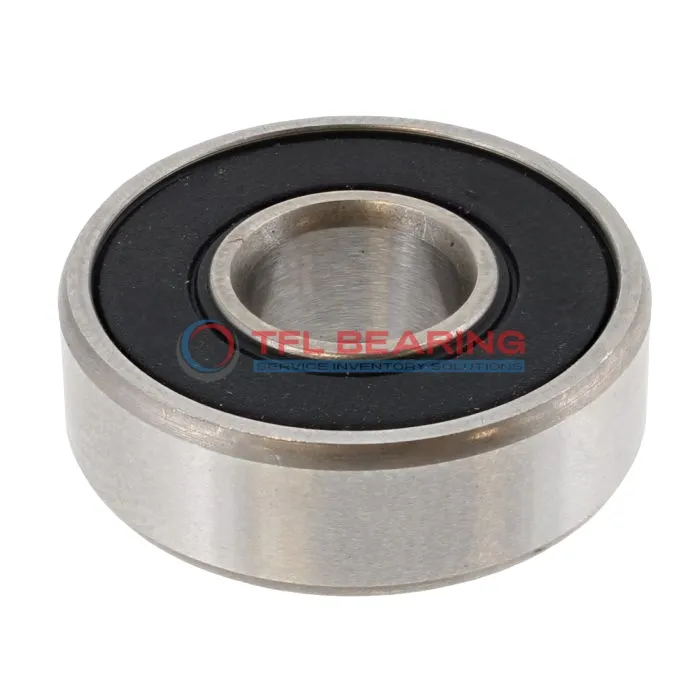

Single Row Deep Groove Ball Bearings 61812-2RS1/W64L

Single Row Deep Groove Ball Bearings 61812-2RS1/W64L

The 61812-2RS1/W64L is a compact single-row deep groove ball bearing, measuring 60mm in bore and 78mm in outer diameter, with a slim 10mm width. Made from chrome steel, it offers reliable performance for radial loads up to 2675 lbf.

Its sealed design keeps out dust and moisture, while the solid oil lubrication ensures smooth operation at speeds up to 11,000 RPM. The bearing works efficiently in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for small electric motors or appliances where space is limited but durability is key.

Weighing just 0.095kg, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61812-2RS1/W64L
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 78 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2675 lbf
  • Static Radial Load 2563 lbf
  • Max Speed 11000 rpm
  • Weight 0.095 kg
Single Row Deep Groove Ball Bearings 61812-2RS1/W64L dimension drawing
Download DWG Download PDF

Features

Why Choose 61812-2RS1/W64L Bearing for Precision Tasks?

61812-2RS1/W64L Bearing features a sealed design with solid oil lubrication, ensuring smooth operation in radial load applications.
Its chrome steel construction provides durability and resistance to wear, making it suitable for long-term use.

The bearing operates efficiently within a temperature range of -30°C to 120°C, adapting to various environmental conditions.
With a maximum speed of 11,000 rpm, it balances performance and reliability for precision tasks.

61812-2RS1/W64L Bearing’s ABEC 1 tolerance class ensures consistent accuracy in demanding applications.
Its dynamic radial load capacity of 2675 lbf makes it a dependable choice for industrial use.

Application

Common Applications of 61812-2RS1/W64L Bearing
61812-2RS1/W64L Bearing works well in industrial equipment like conveyor systems, where its sealed design keeps out dust and debris. The solid oil lubrication ensures long service life even in demanding environments.

In automotive applications, 61812-2RS1/W64L Bearing is often used in electric motors and small gearboxes. Its compact size and radial load capacity make it a reliable choice for tight spaces.

For home appliances, 61812-2RS1/W64L Bearing can be found in washing machines and fans. The sealed construction helps prevent grease leakage, keeping things clean and quiet during operation.

Automation systems benefit from 61812-2RS1/W64L Bearing in robotic arms and small actuators. The chrome steel construction provides smooth movement while handling moderate radial loads.

Medical devices like lab equipment often use 61812-2RS1/W64L Bearing for its consistent performance. The wide temperature range allows it to function reliably in various clinical environments.
