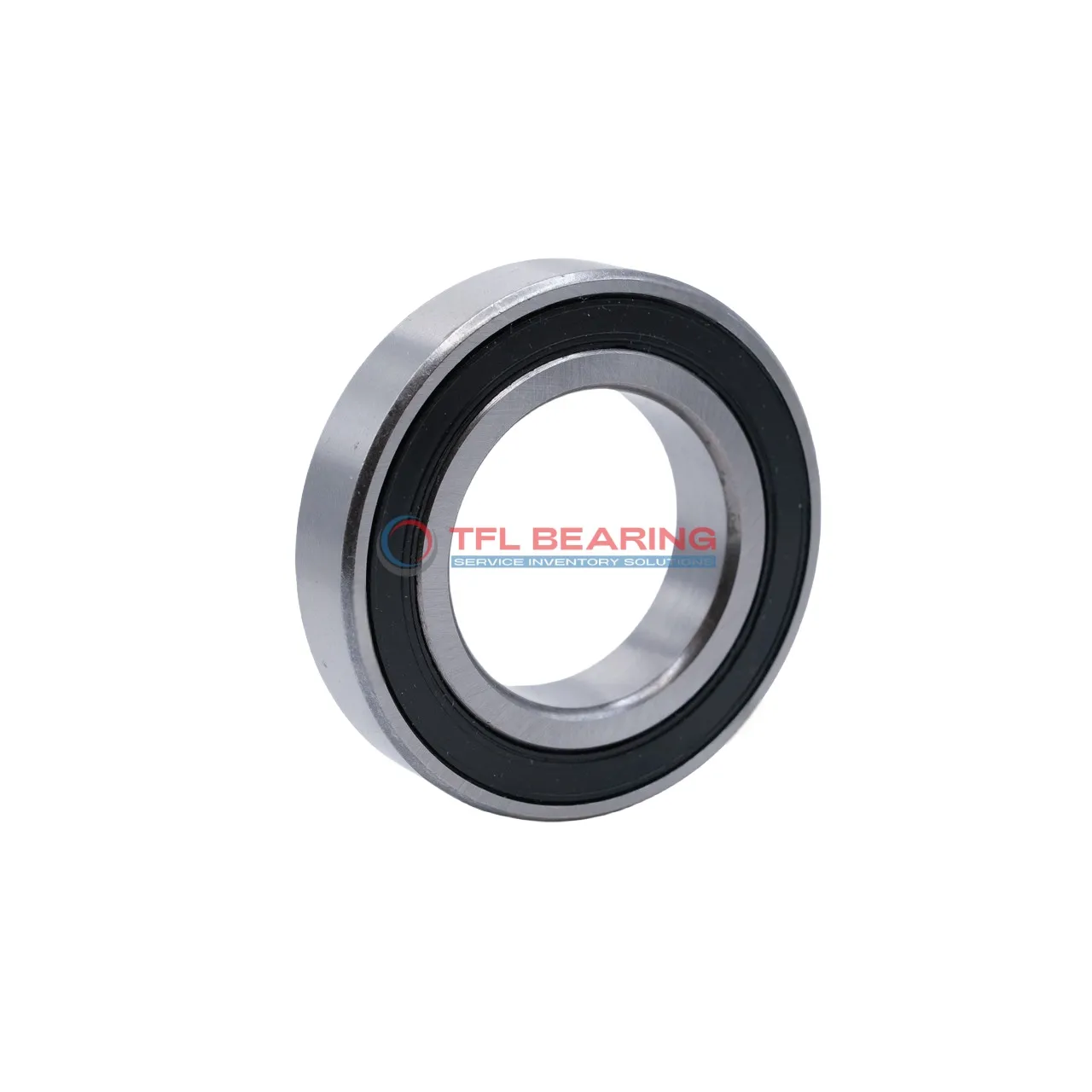

Single Row Deep Groove Ball Bearings 6208-2RS1/W64F

Single Row Deep Groove Ball Bearings 6208-2RS1/W64F

The 6208-2RS1/W64F is a single-row deep groove ball bearing with a 40mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6542 lbf and spins smoothly at speeds up to 8300 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance with minimal maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where reliable radial load support is needed.

Weighing 366g, it’s a robust yet compact option. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Max Speed 8300 rpm
  • Weight 366 g
Single Row Deep Groove Ball Bearings 6208-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

Performance Features of 6208-2RS1/W64F Bearing

6208-2RS1/W64F Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 6542 lbf.
Its sealed design and solid oil lubrication ensure consistent performance with minimal maintenance.
The bearing operates smoothly within a temperature range of -30°C to 120°C, making it versatile for various environments.
With a maximum speed of 8,300 rpm, it balances efficiency and durability in demanding applications.

Application

Common Applications of 6208-2RS1/W64F Bearing
In industrial settings, 6208-2RS1/W64F Bearing is widely used in electric motors and pumps due to its sealed design, which protects against dust and moisture. The solid oil lubrication ensures long service life even in demanding conditions.

Where Is 6208-2RS1/W64F Bearing Used?
You’ll often find 6208-2RS1/W64F Bearing in automotive applications like alternators and water pumps, where its radial load capacity and sealed construction are ideal. The chrome steel construction also handles high temperatures well.

Built for Heavy-Duty Use: 6208-2RS1/W64F Bearing
This bearing works perfectly in conveyor systems and gearboxes, thanks to its robust design and solid oil lubrication. The ABEC 1 tolerance ensures reliable performance without needing frequent adjustments.

Automotive vs Industrial: Applications of 6208-2RS1/W64F Bearing
In cars, 6208-2RS1/W64F Bearing supports smooth operation in wheel hubs and transmissions. For factories, it’s a go-to for machinery like compressors, where durability and low maintenance matter.
