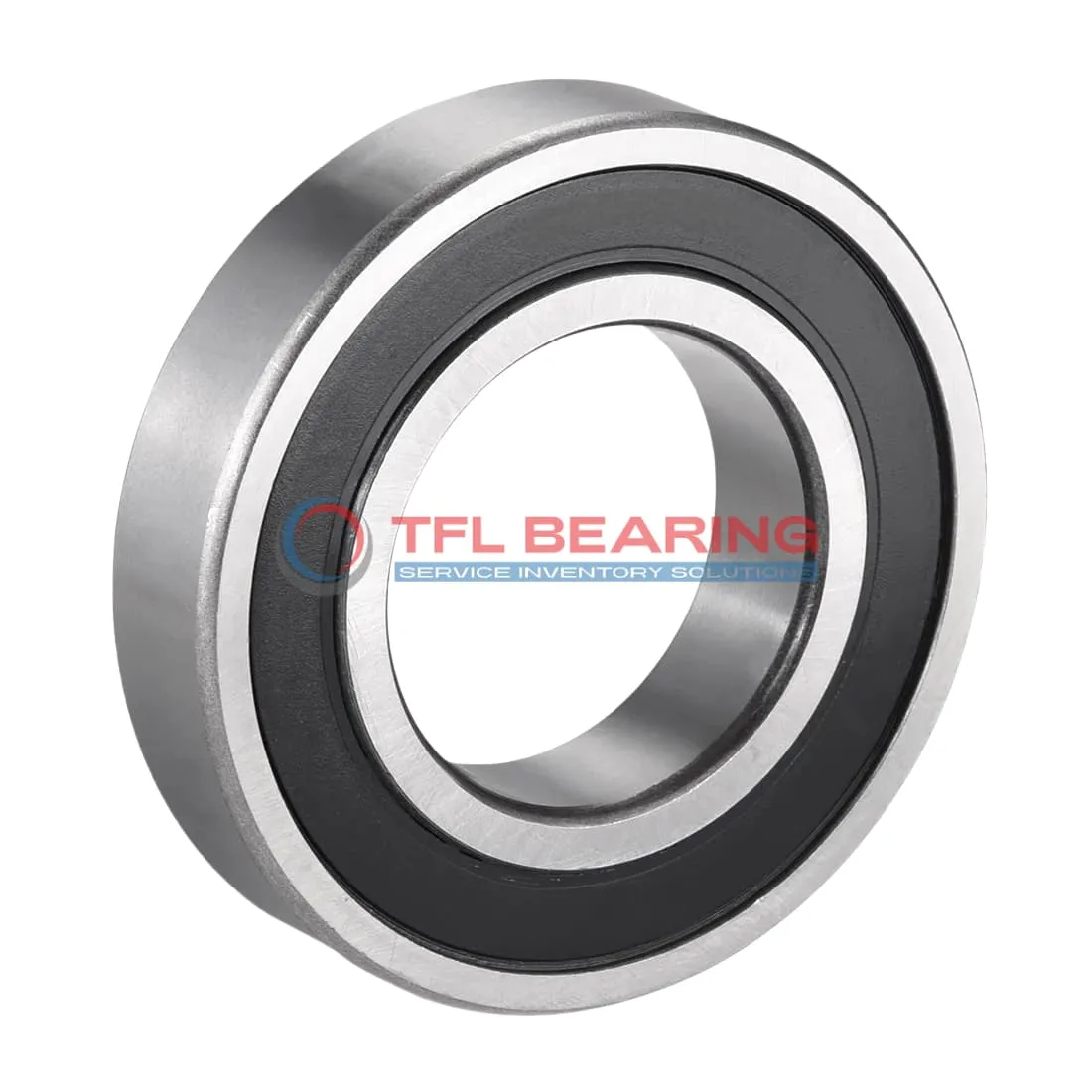

Single Row Deep Groove Ball Bearings 61820-2RS1/W64

Single Row Deep Groove Ball Bearings 61820-2RS1/W64

The 61820-2RS1/W64 is a single-row deep groove ball bearing with a 100mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4002 lbf and operates smoothly at speeds reaching 6300 RPM.

Sealed on both sides, it keeps dirt out and lubrication in, making it low-maintenance. The solid oil lubrication ensures consistent performance even in demanding conditions.

With a compact width of just 13mm, it fits neatly into tight spaces. It’s interchangeable with SKF bearings, offering a reliable alternative for replacements.

Ideal for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards, it’s safe for various industrial uses. Weighing 0.3kg, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61820-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4002 lbf
  • Static Radial Load 4114 lbf
  • Max Speed 6300 rpm
  • Weight 0.3 kg
Single Row Deep Groove Ball Bearings 61820-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does 61820-2RS1/W64 Bearing Reduce Friction?

61820-2RS1/W64 Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability, making it suitable for radial load applications.

With a dynamic radial load capacity of 4002 lbf, it performs reliably under various conditions.
Its maximum speed of 6,300 rpm and temperature range of -30° to 120°C ensure versatility in different environments.

The ABEC 1 tolerance class and ISO P0 standard guarantee consistent performance.
This bearing is ideal for applications requiring low maintenance and long service life.

Application

Industrial Uses of 61820-2RS1/W64 Bearing
61820-2RS1/W64 Bearing is commonly used in industrial machinery, especially in applications where radial load support is needed, like conveyor systems and electric motors. Its sealed design helps keep contaminants out, ensuring longer service life in dusty environments.

Where Is 61820-2RS1/W64 Bearing Used?
In automotive applications, 61820-2RS1/W64 Bearing fits well in components like alternators and water pumps, thanks to its solid oil lubrication. The chrome steel construction provides durability under continuous use.

Perfect Fit for Automation: 61820-2RS1/W64 Bearing
For automation equipment, 61820-2RS1/W64 Bearing offers reliable performance in robotic arms and assembly lines. The sealed design reduces maintenance needs, making it ideal for high-use settings.

Medical vs Industrial: Where 61820-2RS1/W64 Bearing Excels
In medical devices, 61820-2RS1/W64 Bearing ensures smooth operation in imaging equipment and lab instruments. Its temperature range and sealed construction make it suitable for sterile environments.

Key Fields for 61820-2RS1/W64 Bearing
In consumer electronics, 61820-2RS1/W64 Bearing is found in devices like printers and cooling fans. The compact size and radial load capacity make it a versatile choice for small appliances.
