Snap Ring Groove Ball Bearings 6210 NR

Snap Ring Groove Ball Bearings 6210 NR

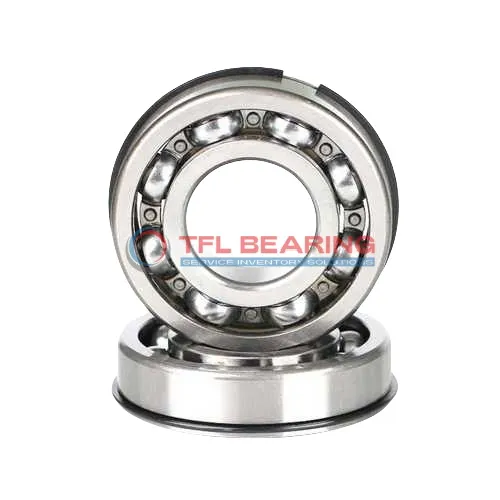

The 6210 NR is a snap ring groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8340 lbf and can spin at speeds up to 10,000 RPM.

The snap ring on the outer ring keeps it securely in place, making installation simpler. Its open design allows for easy lubrication and maintenance, while the stainless steel cage ensures durability.

This bearing is ideal for applications like electric motors or pumps where radial loads are common. It works well in temperatures from -30°C to 120°C and is interchangeable with SKF bearings.

Weighing 0.47kg, it’s a reliable choice for machinery requiring secure mounting and smooth operation. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6210 NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 96.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 8340 lbf
  • Static Radial Load 5216 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.47 kg
  • Price（$） 11.39

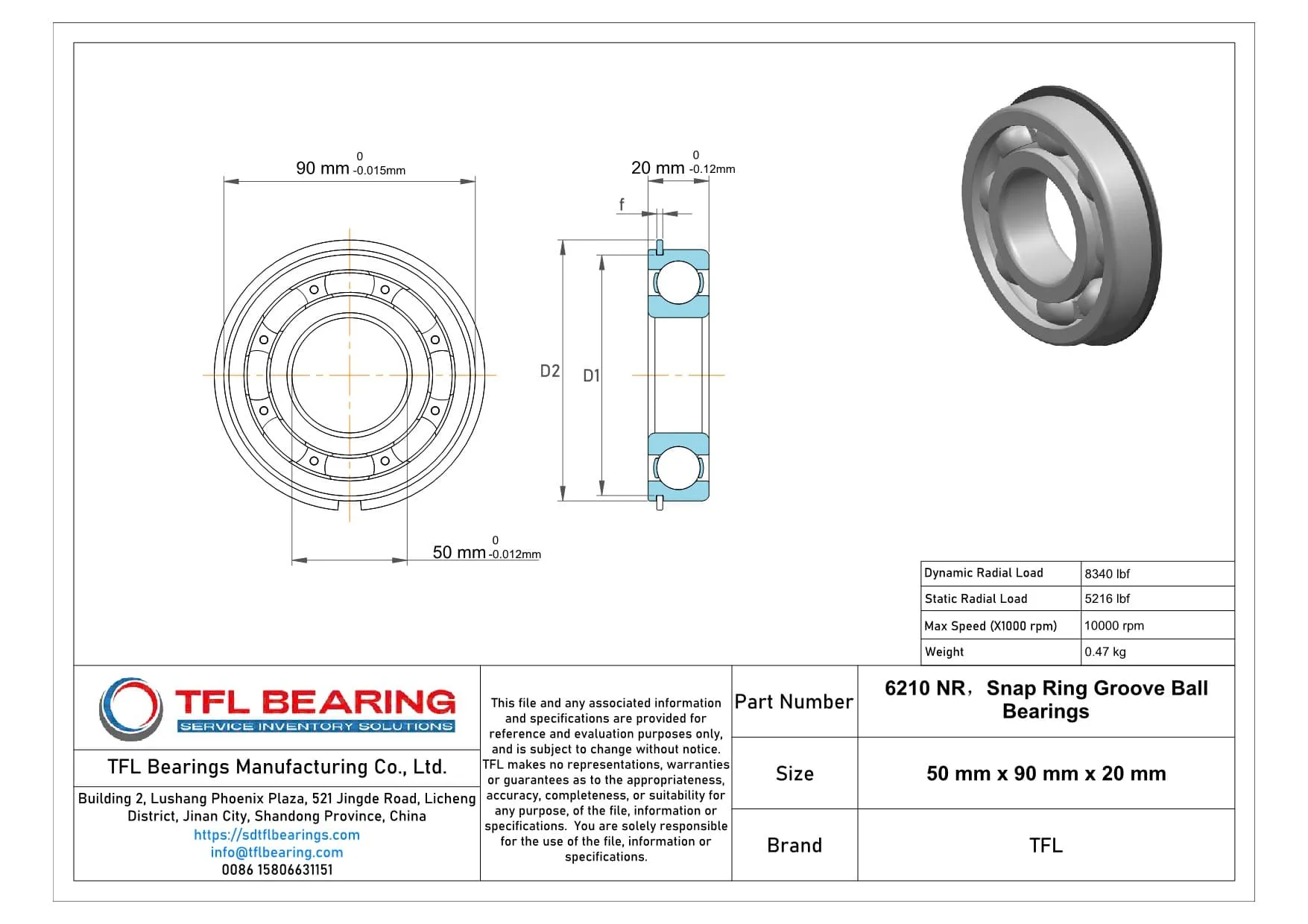

Snap Ring Groove Ball Bearings 6210 NR dimension drawing
Download DWG Download PDF

Features

How Does 6210 NR Bearing Resist Wear?

6210 NR Bearing features chrome steel rings and balls, enhancing its resistance to wear in radial load applications.
The stainless steel cage maintains ball alignment, ensuring smooth operation and reducing friction.

With a dynamic radial load capacity of 8340 lbf, it handles demanding conditions reliably.
Its snap ring design provides secure outer ring positioning, simplifying installation and maintenance.

The bearing operates efficiently at speeds up to 10,000 rpm, balancing performance and durability.
Its temperature range of -30° to 120°C ensures consistent performance in various environments.

Application

Industrial Uses of 6210 NR Bearing
The 6210 NR Bearing is commonly used in industrial machinery like pumps and gearboxes, where its snap ring design ensures secure outer ring positioning. Its open structure allows for easy lubrication, extending service life in demanding environments.

In automotive applications, 6210 NR Bearing supports components such as alternators and water pumps, handling radial loads efficiently. The chrome steel construction provides durability, making it suitable for long-term use in vehicles.

For automation systems, 6210 NR Bearing fits well in robotic arms and conveyor belts, offering reliable performance. The stainless steel cage adds resistance to wear, even in high-speed operations.

Where Is 6210 NR Bearing Used?
You’ll often find 6210 NR Bearing in household appliances like washing machines, where its snap ring feature simplifies installation. Its metric sizing ensures compatibility with a wide range of European-designed equipment.

In light industrial settings, 6210 NR Bearing works well in small electric motors and fans. The P0 tolerance class guarantees consistent performance, making it a dependable choice for everyday machinery.
