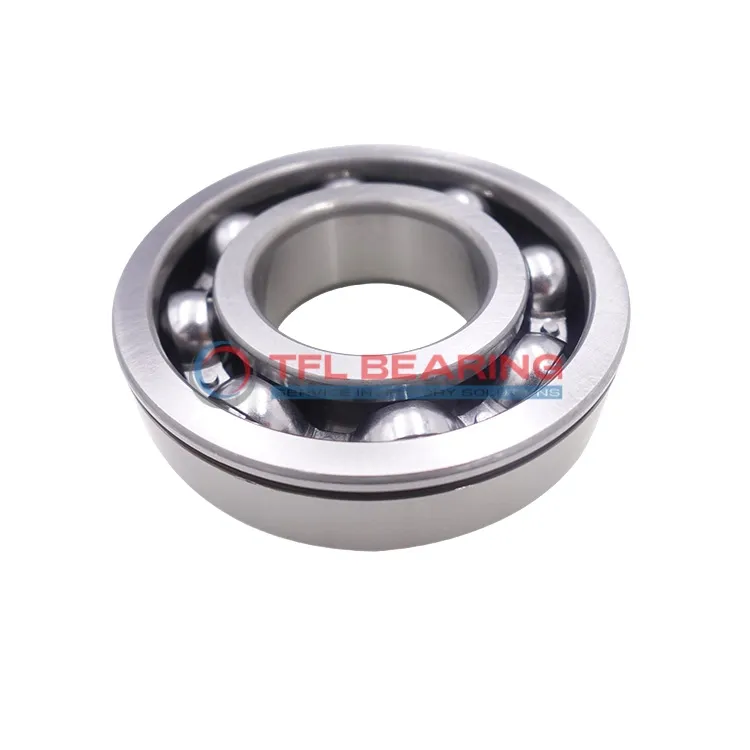

Snap Ring Groove Ball Bearings 6204 N

Snap Ring Groove Ball Bearings 6204 N

The 6204 N is a snap ring groove ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3035 lbf and can spin at speeds up to 20,000 RPM.

Its open design and stainless steel cage ensure durability, while the snap ring groove on the outer ring helps secure it in place. The bearing operates smoothly in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing just 0.11kg, it’s lightweight yet robust. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204 N
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 47 mm
  • Width Of Snap Ring 1.35 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3035 lbf
  • Static Radial Load 1472 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.11 kg
Snap Ring Groove Ball Bearings 6204 N dimension drawing
Download DWG Download PDF

Features

How Does 6204 N Bearing Reduce Friction?

6204 N Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

Its snap ring groove design provides secure positioning, reducing unnecessary movement and wear.

The stainless steel cage maintains ball alignment, enhancing efficiency and extending bearing life.

With a maximum speed of 20,000 rpm, it delivers reliable performance in high-speed applications.

Application

Common Applications of 6204 N Bearing
The 6204 N Bearing is widely used in industrial machinery, such as conveyor systems and electric motors, where its snap ring groove ensures secure mounting. Its open design allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6204 N Bearing is often found in gearboxes and wheel hubs, providing reliable radial load support. The chrome steel construction ensures durability even under demanding driving conditions.

For automation equipment, 6204 N Bearing is a popular choice in robotic arms and CNC machines, thanks to its precise P6 tolerance class. The stainless steel cage adds to its longevity in continuous operation.

Household appliances like washing machines and fans benefit from 6204 N Bearing’s smooth performance and low maintenance needs. Its metric sizing makes it compatible with a variety of consumer products.

Medical devices such as dental drills and lab equipment rely on 6204 N Bearing for its consistent performance and resistance to wear. The snap ring groove feature ensures easy installation in compact spaces.
