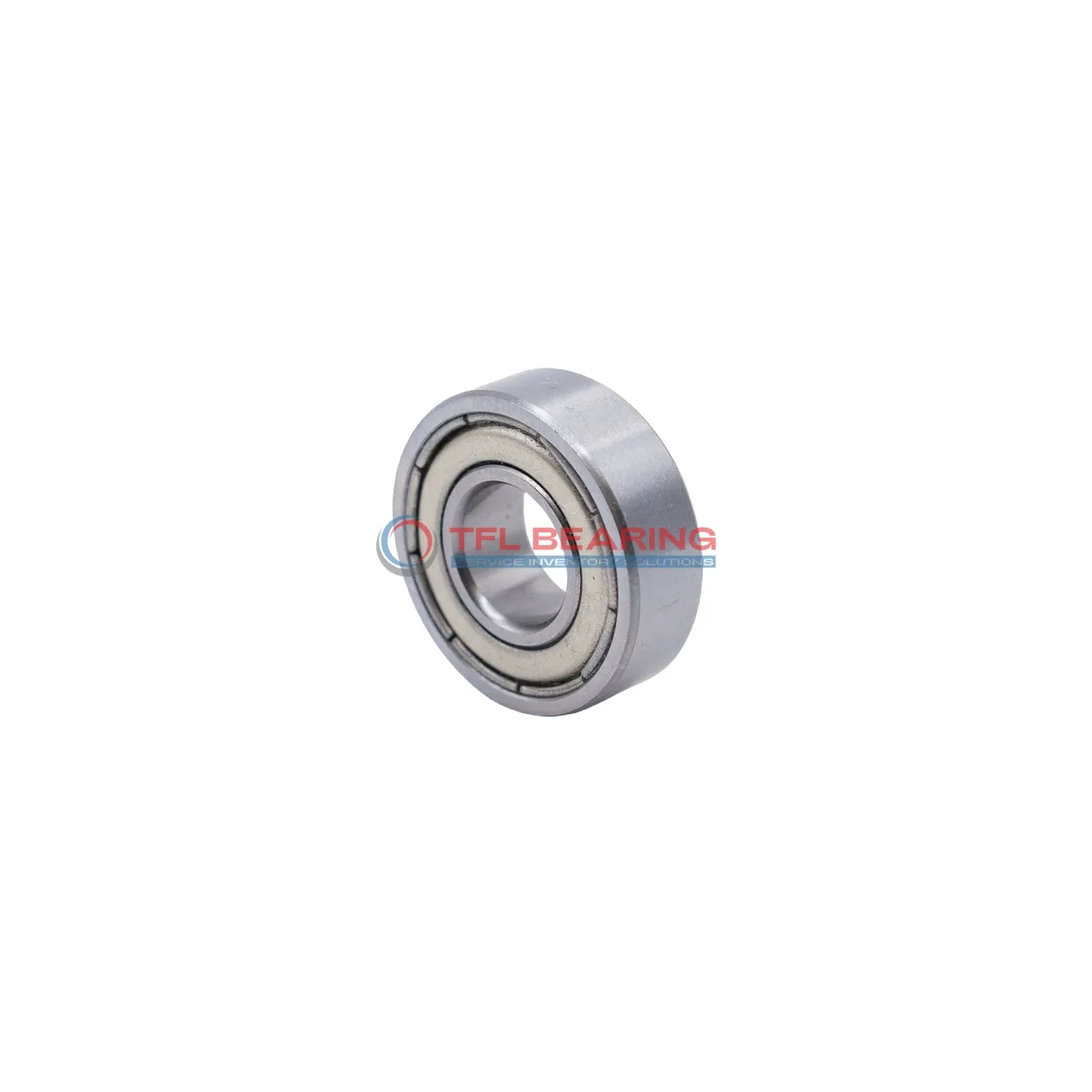

Single Row Deep Groove Ball Bearings 6005-ZJEM

The 6005-ZJEM is a single-row deep groove ball bearing with a 25mm bore and 47mm outer diameter, crafted from sturdy chrome steel. Its compact design, just 12mm wide, makes it suitable for tight spaces.

This shielded bearing handles radial loads up to 2271 lbf and spins smoothly at speeds up to 15,000 RPM. It operates reliably in temperatures ranging from -30°C to 120°C.

The chrome steel cage enhances durability, while the shielded design keeps contaminants out. It meets ABEC 1 and ISO P0 tolerance standards for consistent performance.

Ideal for applications like electric motors or small machinery where radial loads are common. Compliant with RoHS and REACH standards, it’s a practical choice for replacements, interchangeable with SKF bearings. Weighing only 80g, it’s lightweight yet robust.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6005-ZJEM
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Bore Dia 25 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 47 mm
Outer Dia Tolerance -0.011mm to 0
Width 12 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2271 lbf
Static Radial Load 1315 lbf
Max Speed 15000 rpm
Weight 80 g
price（$） 4.491

Single Row Deep Groove Ball Bearings 6005-ZJEM dimension drawing

Download DWG Download PDF

Features

How Does 6005-ZJEM Bearing Reduce Friction?

6005-ZJEM Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
Its chrome steel construction ensures durability while minimising friction during operation.

The shielded design protects against contaminants, maintaining performance in various environments.
With a maximum speed of 15,000 rpm, it delivers reliable efficiency for industrial applications.

6005-ZJEM Bearing operates within a temperature range of -30°C to 120°C, suitable for diverse conditions.
Its ABEC 1 tolerance class balances precision and cost-effectiveness for general-purpose use.

Application

Key Fields for 6005-ZJEM Bearing
6005-ZJEM Bearing is commonly used in industrial equipment like electric motors and pumps, where its shielded design helps keep contaminants out. The chrome steel construction ensures durability in continuous operation.

How Does 6005-ZJEM Bearing Improve Performance?
In automotive applications, 6005-ZJEM Bearing supports components such as alternators and water pumps, providing smooth rotation under radial loads. Its ABEC 1 tolerance offers reliable precision for everyday driving conditions.

Perfect Fit for Automation: 6005-ZJEM Bearing
6005-ZJEM Bearing works well in robotic arms and conveyor systems, thanks to its balanced load capacity and moderate speed rating. The shielded seals help maintain performance in dusty or humid environments.

Medical vs Industrial: Where 6005-ZJEM Bearing Excels
6005-ZJEM Bearing is suitable for medical devices like centrifuges, where consistent performance matters. In industrial settings, it handles radial loads in machinery like gearboxes and small fans.

Where to Use 6005-ZJEM Bearing
For household appliances such as washing machines, 6005-ZJEM Bearing provides quiet and efficient operation. Its compact size and shielded design make it ideal for space-constrained applications.
