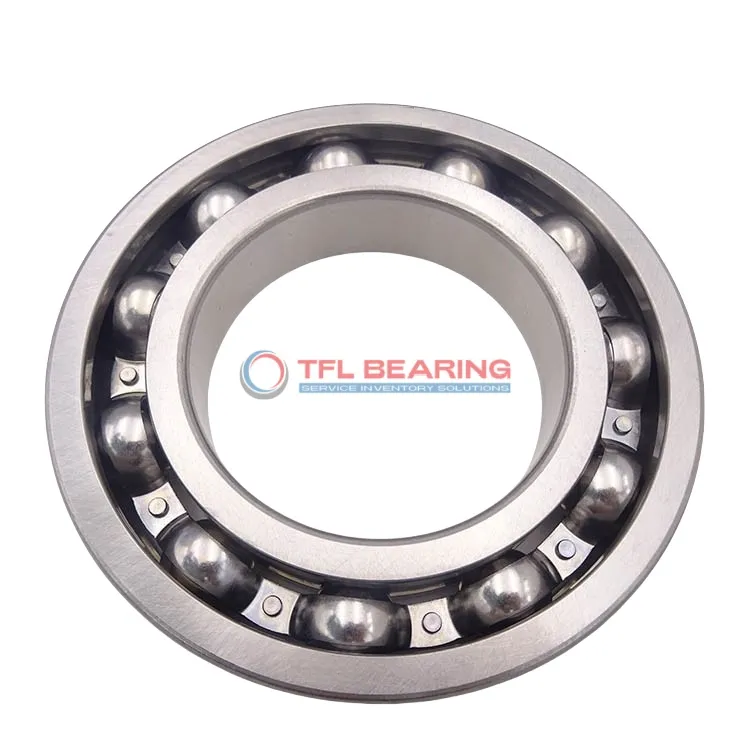

Single Row Deep Groove Ball Bearings 6320 M

Single Row Deep Groove Ball Bearings 6320 M

The 6320 M is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 39117 lbf and operates smoothly at speeds up to 6000 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery like pumps or electric motors where radial loads are common.

Weighing 8.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6320 M
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.020mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 39117 lbf
  • Static Radial Load 31473 lbf
  • Max Speed 6000 rpm
  • Weight 8.7 kg
Single Row Deep Groove Ball Bearings 6320 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 6320 M Bearing

6320 M Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 39117 lbf.
Its single-row deep groove design ensures smooth operation and efficient load distribution.
The stainless steel cage maintains ball alignment, reducing friction and wear.
With a maximum speed of 6,000 rpm, it delivers reliable performance in various applications.

How Does 6320 M Bearing Reduce Friction?

6320 M Bearing’s deep groove raceway design minimises friction, promoting smooth rotation under radial loads.
The precision-engineered chrome steel components further enhance its efficiency and durability.
Its open seal type allows for easy lubrication, ensuring consistent performance.
Operating within a temperature range of -30° to 120°C, it adapts well to different environments.

Engineered for Precision: 6320 M Bearing

6320 M Bearing meets P6 tolerance class standards, ensuring high precision in radial applications.
Its CN radial clearance provides optimal performance for various operational conditions.
The bearing’s robust construction handles static radial loads up to 31473 lbf with ease.
Weighing 8.7 kg, it balances strength and practicality for industrial use.

Steel vs Ceramic Bearings: Strengths of 6320 M Bearing

6320 M Bearing’s chrome steel construction offers excellent durability and load-bearing capacity.
Its material composition ensures resistance to wear, even under high radial loads.
The open design simplifies maintenance, while the stainless steel cage enhances longevity.
Compliant with RoHS and REACH standards, it meets stringent environmental and safety requirements.

Application

Industrial Uses of 6320 M Bearing
6320 M Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its deep groove design handles radial loads efficiently. The chrome steel construction ensures durability even in demanding environments.

What Makes 6320 M Bearing a Preferred Choice?
In automotive applications, 6320 M Bearing fits well in wheel hubs and transmissions due to its high load capacity and smooth operation. Its metric sizing makes it versatile for various vehicle designs.

Built for Heavy-Duty Use: 6320 M Bearing
For automation systems, 6320 M Bearing supports robotic arms and conveyor belts with reliable performance. The stainless steel cage adds longevity, reducing maintenance needs over time.

Medical vs Industrial: Where 6320 M Bearing Excels
While 6320 M Bearing is robust enough for industrial gear, it also meets precision needs in medical devices like MRI machines. The P6 tolerance class ensures consistent accuracy in critical applications.

Perfect Fit for Automation: 6320 M Bearing
In consumer electronics, 6320 M Bearing can be found in high-power tools and appliances, offering quiet and efficient operation. Its wide temperature range makes it suitable for diverse usage conditions.
