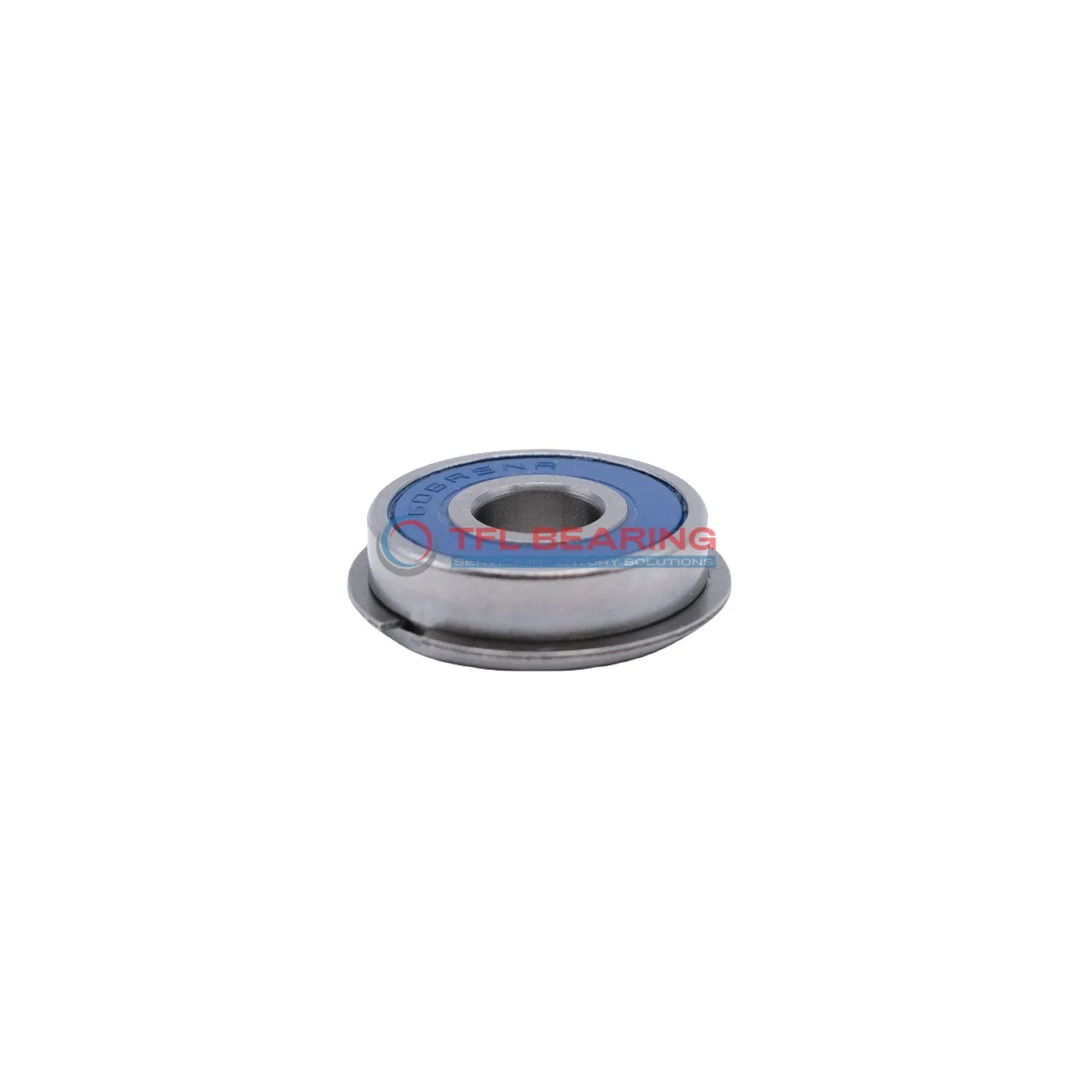

Snap Ring Groove Ball Bearings 6208-RSNR/C3

Snap Ring Groove Ball Bearings 6208-RSNR/C3

The 6208-RSNR/C3 is a sealed single-row ball bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6542 lbf and operates smoothly at speeds up to 8300 RPM.

Its snap ring groove on the outer ring ensures secure fitting, while the sealed design keeps dirt out for longer life. The bearing performs reliably in temperatures from -30°C to 120°C.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. Ideal for electric motors or pumps where secure mounting and contamination protection are key.

Weighing 366g, it’s a sturdy choice for industrial applications. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6208-RSNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 86.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6542 lbf
  • Static Radial Load 4002 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 8300 rpm
  • Weight 366 g
  • Price（$） 13.43
Snap Ring Groove Ball Bearings 6208-RSNR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6208-RSNR/C3 Bearing Reduce Friction?

6208-RSNR/C3 Bearing features a sealed design with chrome steel rings and balls, ensuring smooth operation and reduced friction.
Its dynamic radial load capacity of 6542 lbf makes it suitable for various radial load applications.
The snap ring groove on the outer ring provides secure fitting, enhancing stability during operation.
With a maximum speed of 8,300 rpm, it offers reliable performance in a wide temperature range from -30°C to 120°C.

Application

Industrial Uses of 6208-RSNR/C3 Bearing
The 6208-RSNR/C3 Bearing is commonly used in industrial machinery like pumps and gearboxes, where its sealed design helps keep contaminants out. Its snap ring feature ensures secure mounting, reducing the risk of misalignment during operation.

What Makes 6208-RSNR/C3 Bearing a Preferred Choice?
In automotive applications, 6208-RSNR/C3 Bearing supports components like alternators and fans, offering reliable performance under radial loads. The C3 clearance allows for slight thermal expansion, making it suitable for varying temperatures.

Perfect Fit for Automation: 6208-RSNR/C3 Bearing
This bearing works well in robotic arms and conveyor systems, where its sealed construction minimises maintenance needs. The chrome steel materials provide durability, even in high-speed operations.

Medical vs Industrial: Where 6208-RSNR/C3 Bearing Excels
While 6208-RSNR/C3 Bearing is robust enough for industrial equipment, its precision also suits medical devices like lab instruments. The snap ring ensures easy installation, saving time during assembly.

Light-Duty vs Heavy-Duty: Best Uses for 6208-RSNR/C3 Bearing
For light-duty tasks like small electric motors, 6208-RSNR/C3 Bearing offers smooth performance. In heavier applications, its dynamic load capacity ensures long-lasting reliability.
