Constant Section (CS) Bearings NA065XP0

Constant Section (CS) Bearings NA065XP0

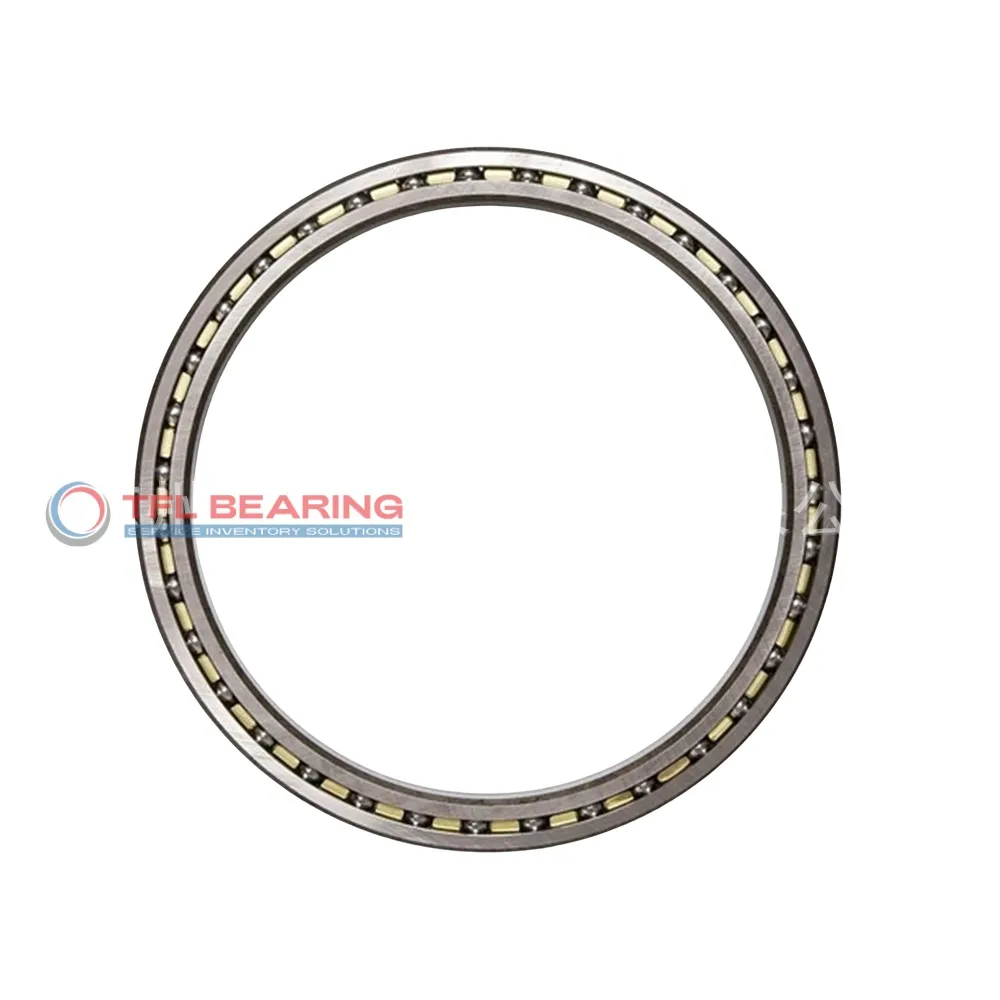

The NA065XP0 is a thin-section ball bearing with a 6.5″ bore and 7″ outer diameter, featuring a compact 0.25″ width. Its chrome steel construction and brass cage ensure durability and smooth operation.

This four-point contact bearing handles radial loads up to 1001 lbf and thrust loads up to 1650 lbf, making it versatile for various applications. It operates well in temperatures from -30°C to 110°C.

The open design and chromium plating provide easy maintenance and corrosion resistance. Its ABEC-1 tolerance ensures reliable performance without being overly precise.

Ideal for robotics or aerospace applications where space is limited but load capacity is crucial. Weighing just 0.3 lbs, it’s lightweight yet robust. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NA065XP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Four Point Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 6.5"
  • Bore Dia Tolerance -0.0010"– 0"
  • Outer Dia 7"
  • Outer Dia Tolerance -0.0010"– 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Endura-kote Plated Bearings
  • Series NA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 6.686"
  • Internal Diameter On Outer Ring (Small Side Face) 6.814"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1001 lbf
  • Static Radial Load 2050 lbf
  • Static Thrust Load 5120 lbf
  • Static Moment 6910 lbf
  • Temperature Range -30°C to 110 °C
  • Moment Load Rating 2 lbf
  • Dynamic Thrust Load 1650 lbf
  • Surface Chromium Plating
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.3 lbs
  • price（$） 144.14
Constant Section (CS) Bearings NA065XP0 dimension drawing
Download DWG Download PDF

Features

How Does NA065XP0 Bearing Handle Heavy Loads?

NA065XP0 Bearing features a four-point contact design, allowing it to manage both radial and thrust loads efficiently.

Its chrome steel construction ensures durability, while the brass cage maintains ball alignment for smooth operation.

With a static thrust load capacity of 5120 lbf, it performs reliably in demanding conditions.

The chromium plating adds an extra layer of protection against wear and corrosion.

Application

Industrial Uses of NA065XP0 Bearing
NA065XP0 Bearing is commonly used in robotics, especially in articulated arms where its thin section design saves space without compromising strength. The chromium plating adds extra protection against wear in dusty environments.

Where Is NA065XP0 Bearing Used?
You’ll often spot NA065XP0 Bearing in packaging machinery, where its four-point contact design handles both radial and thrust loads smoothly. The brass cage ensures quiet operation, ideal for noise-sensitive settings.

Built for Heavy-Duty Use: NA065XP0 Bearing
NA065XP0 Bearing shines in conveyor systems, thanks to its high static moment capacity. Its inch sizing makes it a go-to for North American industrial equipment.

Automotive vs Aerospace: Applications of NA065XP0 Bearing
In automotive turntables, NA065XP0 Bearing provides reliable rotation under heavy loads. For aerospace applications, its lightweight construction and precision tolerances are equally valuable.

Perfect Fit for Automation: NA065XP0 Bearing
NA065XP0 Bearing works well in CNC rotary tables, where its ABEC-1 tolerance balances accuracy and cost. The open design simplifies relubrication during maintenance cycles.
