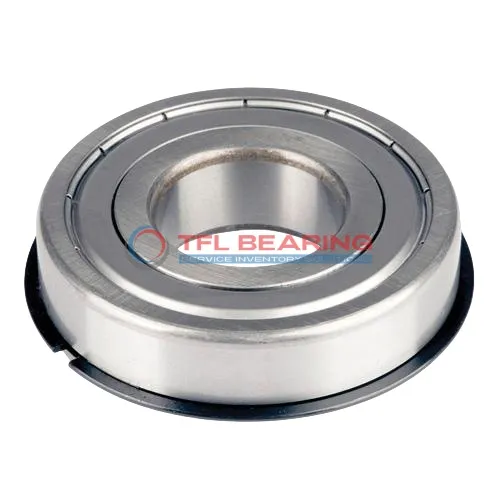

Snap Ring Groove Ball Bearings 6011-ZNR/C3

Snap Ring Groove Ball Bearings 6011-ZNR/C3

The 6011-ZNR/C3 is a shielded snap ring groove ball bearing with a 55mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6362 lbf and operates smoothly at speeds up to 7500 RPM.

Its snap ring design ensures secure fitting, while the shielded construction keeps dirt out for longer service life. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or conveyor systems where radial loads are common.

Weighing 373g, it offers a sturdy build for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6011-ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 96.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6362 lbf
  • Static Radial Load 4766 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 373 g
  • Price（$） 18.59
Snap Ring Groove Ball Bearings 6011-ZNR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6011-ZNR/C3 Bearing Reduce Friction?

6011-ZNR/C3 Bearing features a chrome steel construction, ensuring smooth operation with minimal friction.
The shielded design protects against contaminants, maintaining performance in various environments.

Its dynamic radial load capacity of 6362 lbf allows for reliable handling of heavy loads.
The snap ring groove on the outer ring provides secure mounting, reducing vibration and wear.

With a maximum speed of 7,500 rpm, it balances efficiency and durability.
The C3 radial clearance ensures optimal performance under varying temperature conditions.

Application

Industrial Uses of 6011-ZNR/C3 Bearing
You’ll often spot 6011-ZNR/C3 Bearing in conveyor systems and electric motors, where its shielded design keeps contaminants out while handling radial loads smoothly. The snap ring groove makes installation a breeze in tight spaces.

How Does 6011-ZNR/C3 Bearing Improve Performance?
In automotive alternators, 6011-ZNR/C3 Bearing’s C3 clearance accommodates thermal expansion during high-speed rotation. Its chrome steel construction maintains stability even when temperatures fluctuate.

Built for Versatility: 6011-ZNR/C3 Bearing
This model works equally well in industrial fans and agricultural machinery, thanks to its balanced load capacity. The metric sizing ensures easy replacement across various equipment brands.

Medical vs Industrial: Where 6011-ZNR/C3 Bearing Excels
While 6011-ZNR/C3 Bearing handles pumps and compressors reliably, its precision also suits medical centrifuges. The shielded design prevents lubricant contamination in sensitive environments.

Perfect Fit for Automation: 6011-ZNR/C3 Bearing
Robotic joint mechanisms benefit from 6011-ZNR/C3 Bearing’s consistent performance and easy mounting. The snap ring feature adds security in vibrating applications like packaging machinery.
