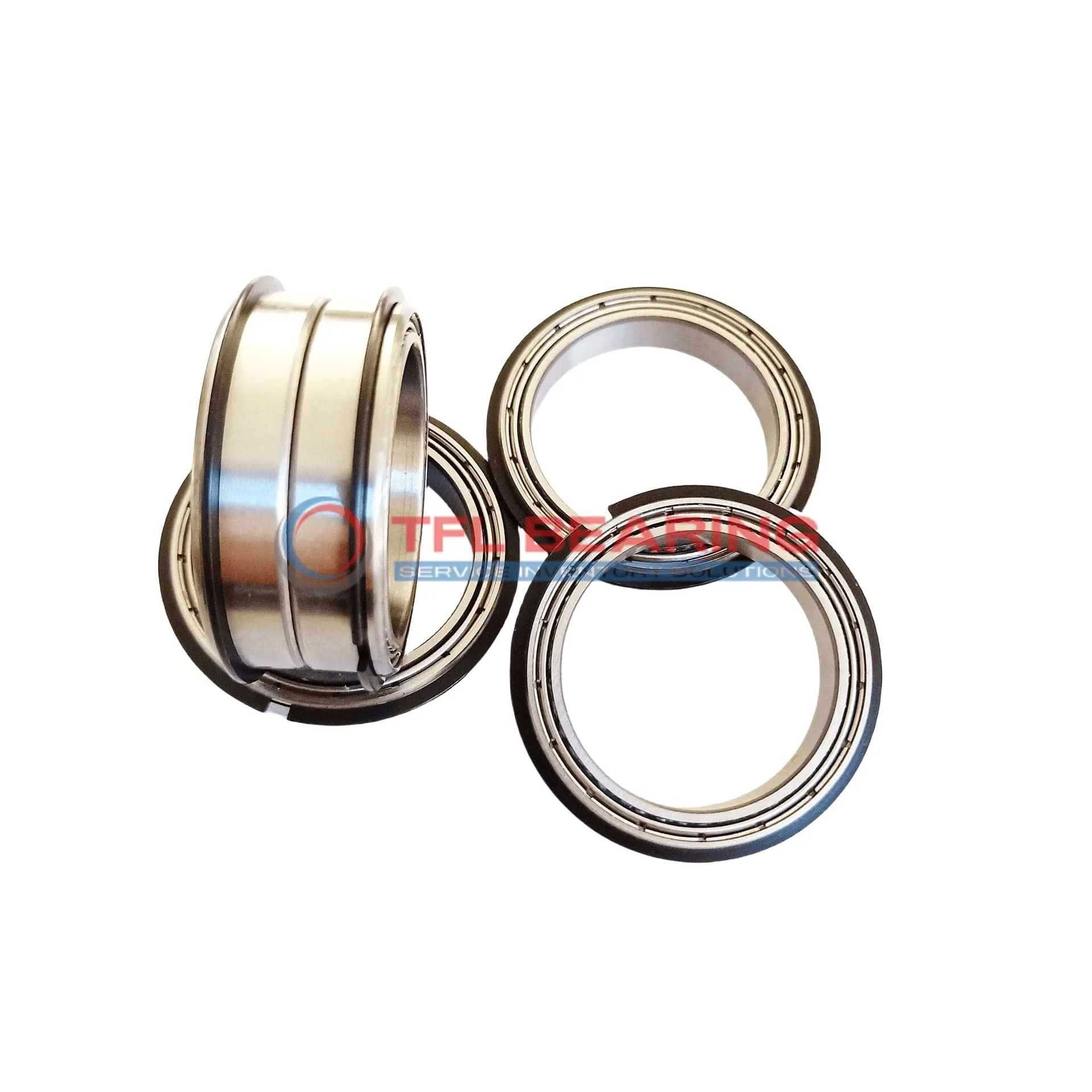

Snap Ring Groove Ball Bearings 6203-2ZNRJEM

Snap Ring Groove Ball Bearings 6203-2ZNRJEM

The 6203-2ZNRJEM is a compact snap ring groove ball bearing, measuring 17mm in bore and 40mm in outer diameter, with a width of 12mm. Made from durable chrome steel, it handles radial loads up to 2147 lbf and spins smoothly at speeds up to 17000 RPM.

Its shielded design keeps dirt out while the snap ring ensures a secure fit in housings. The bearing operates well in temperatures from -30°C to 120°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or small machinery where secure mounting is needed.

Weighing just 65g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6203-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 17 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 40 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 39.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2147 lbf
  • Static Radial Load 1079 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 65 g
  • Price（$） 2.73
Snap Ring Groove Ball Bearings 6203-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

Why Choose 6203-2ZNRJEM Bearing for Precision Tasks?

6203-2ZNRJEM Bearing features shielded seals and a snap ring groove, ensuring secure positioning in radial applications.
Its chrome steel construction provides durability and resistance to wear, even under dynamic radial loads up to 2147 lbf.
The bearing operates smoothly at speeds up to 17,000 rpm, making it suitable for high-performance machinery.
With a temperature range of -30°C to 120°C, it performs reliably in various environments.

Application

Industrial Uses of 6203-2ZNRJEM Bearing
6203-2ZNRJEM Bearing is commonly used in conveyor systems and small electric motors, where its shielded design helps keep out dust and debris. The snap ring feature ensures easy installation and secure positioning in compact spaces.

What Makes 6203-2ZNRJEM Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6203-2ZNRJEM Bearing offers reliable radial load support. Its chrome steel construction provides durability, while the ABEC 1 tolerance ensures smooth operation at high speeds.

Perfect Fit for Automation: 6203-2ZNRJEM Bearing
This bearing works well in robotic arms and 3D printers, where precise movement is essential. The shielded seals protect the internal components, extending the bearing’s lifespan in demanding environments.

Light-Duty vs Heavy-Duty: Best Uses for 6203-2ZNRJEM Bearing
For light-duty tasks like office printers or cooling fans, 6203-2ZNRJEM Bearing delivers quiet and efficient performance. In heavier applications like small machinery, its robust design handles moderate loads without issue.

Where Is 6203-2ZNRJEM Bearing Used?
You’ll often find 6203-2ZNRJEM Bearing in household appliances like washing machines, where its snap ring simplifies maintenance. The temperature range also makes it suitable for both indoor and outdoor use.
