Constant Section (CS) Bearings SA047CP0

Constant Section (CS) Bearings SA047CP0

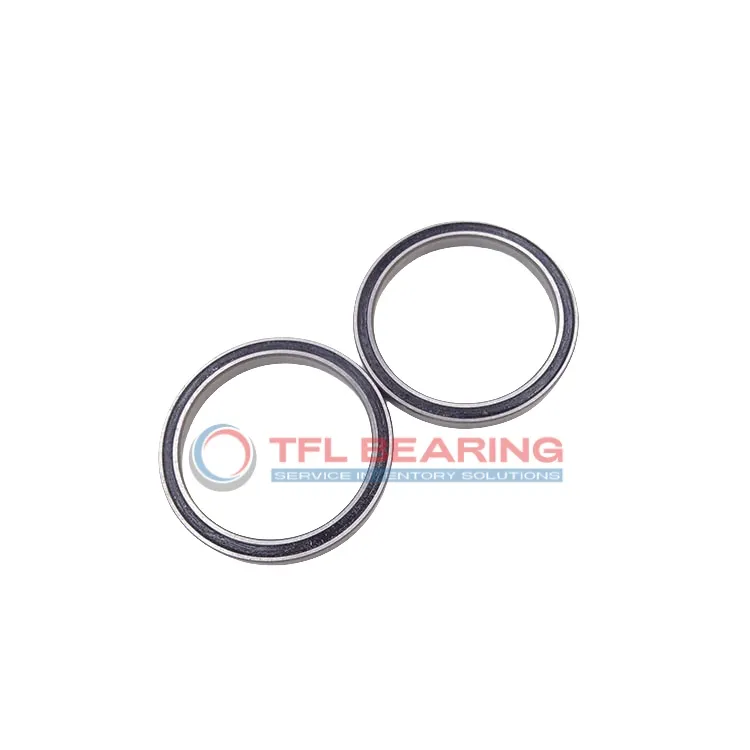

The SA047CP0 is a thin-section radial ball bearing with a 4.75″ bore and 5.25″ outer diameter, crafted from stainless steel for durability. It handles radial loads up to 629 lbf and fits snugly in compact spaces with its slim 0.25″ width.

Its open design and brass cage ensure smooth operation, while the ABEC-1 tolerance class offers reliable precision. The bearing works well in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with KAYDON bearings, ideal for applications requiring lightweight, low-friction performance. Suitable for robotics or precision instruments where space is limited.

Weighing just 0.23 lbs, it’s easy to handle and install. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SA047CP0
  • Brand TFL
  • Interchangeable KAYDON
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 4.75"
  • Bore Dia Tolerance -0.0010" – 0"
  • Outer Dia 5.25"
  • Outer Dia Tolerance -0.0008" – 0"
  • Width 0.25"
  • Width Tolerance +.000 –.005"
  • Thin Section Bearings Type Reali-Slim Stainless Steel Bearings
  • Series SA 1/4" x 1/4"
  • Tolerance Class ABEC-1
  • Radial Clearance 0.0000 – 0.0005"
  • External Diameter On Inner Ring 4.936"
  • Internal Diameter On Outer Ring (Small Side Face) 5.064"
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Brass
  • Dynamic Radial Load 629 lbf
  • Static Radial Load 1520 lbf
  • Temperature Range -30°C to 110 °C
  • ISO Radial 1369 lbf
  • Lubrication Lubricated
  • RoHS Compliant
  • Weight 0.23 lbs
  • price（$） 189.08
Constant Section (CS) Bearings SA047CP0 dimension drawing
Download DWG Download PDF

Features

Performance Features of SA047CP0 Bearing

SA047CP0 Bearing is crafted with stainless steel rings and balls, offering excellent resistance to corrosion and wear.
Its thin-section design ensures a compact fit, ideal for applications with limited space.

The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a dynamic radial load capacity of 629 lbf, it handles moderate loads reliably.

SA047CP0 Bearing operates efficiently within a temperature range of -30°C to 110°C.
Its ABEC-1 tolerance class ensures consistent performance for precision applications.

Application

Common Applications of SA047CP0 Bearing
SA047CP0 Bearing is widely used in industrial equipment like robotic arms and precision machinery, where its thin-section design saves space without compromising performance. The stainless steel construction ensures durability in demanding environments.

In automation systems, SA047CP0 Bearing provides smooth rotation for components like 3D printers and CNC machines. Its ABEC-1 tolerance class offers reliable accuracy for consistent operation.

For medical devices, SA047CP0 Bearing’s brass cage and stainless steel balls make it suitable for imaging equipment and lab instruments. The open seal design allows for easy cleaning and maintenance.

In consumer electronics, SA047CP0 Bearing is often found in high-end printers and small appliances. Its lightweight design and corrosion resistance make it a practical choice for everyday use.
