Single Row Deep Groove Ball Bearings 6206 ETN9/W64

Single Row Deep Groove Ball Bearings 6206 ETN9/W64

The 6206 ETN9/W64 is a single-row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 5261 lbf and spins smoothly at speeds up to 15000 RPM.

Its nylon cage and solid oil lubrication reduce friction, ensuring quiet operation and minimal maintenance. The bearing operates efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or small machinery where radial loads are common.

Weighing just 0.18kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206 ETN9/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5261 lbf
  • Static Radial Load 2900 lbf
  • Max Speed 15000 rpm
  • Weight 0.18 kg

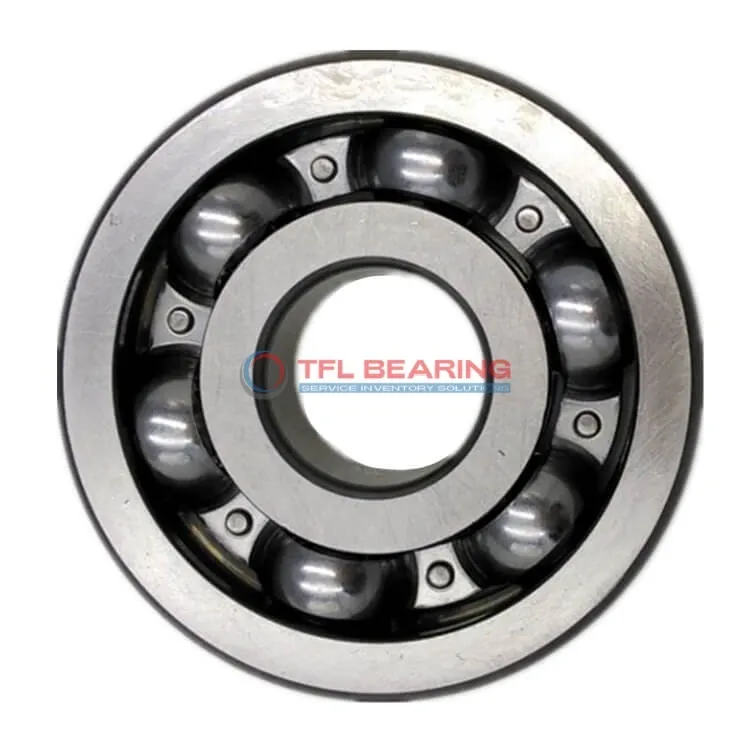

Single Row Deep Groove Ball Bearings 6206 ETN9/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6206 ETN9/W64 Bearing

6206 ETN9/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 5261 lbf, ensuring reliable performance in various applications.

The nylon cage keeps the balls aligned, reducing friction and extending service life.
With a maximum speed of 15,000 rpm, it balances durability and efficiency for high-speed operations.

Solid oil lubrication ensures consistent performance, even in temperatures ranging from -30°C to 120°C.
This makes 6206 ETN9/W64 Bearing suitable for diverse industrial environments.

Application

Common Applications of 6206 ETN9/W64 Bearing
In industrial settings, 6206 ETN9/W64 Bearing is commonly used in electric motors and pumps, where its radial load capacity ensures smooth operation. The solid oil lubrication reduces maintenance needs, making it ideal for continuous-duty environments.

Where Is 6206 ETN9/W64 Bearing Used?
You’ll often find 6206 ETN9/W64 Bearing in automotive applications like alternators and water pumps, thanks to its reliable performance under radial loads. Its nylon cage also helps reduce noise, which is great for passenger vehicles.

Optimized for Performance: 6206 ETN9/W64 Bearing
For automation equipment, 6206 ETN9/W64 Bearing works well in conveyor systems and robotic arms, where precision and durability are key. The chrome steel construction ensures long service life even in demanding conditions.

General Machinery vs Specialized Equipment: 6206 ETN9/W64 Bearing
In household appliances like washing machines, 6206 ETN9/W64 Bearing provides quiet and efficient operation. Its wide temperature range also makes it suitable for outdoor equipment exposed to varying weather conditions.
