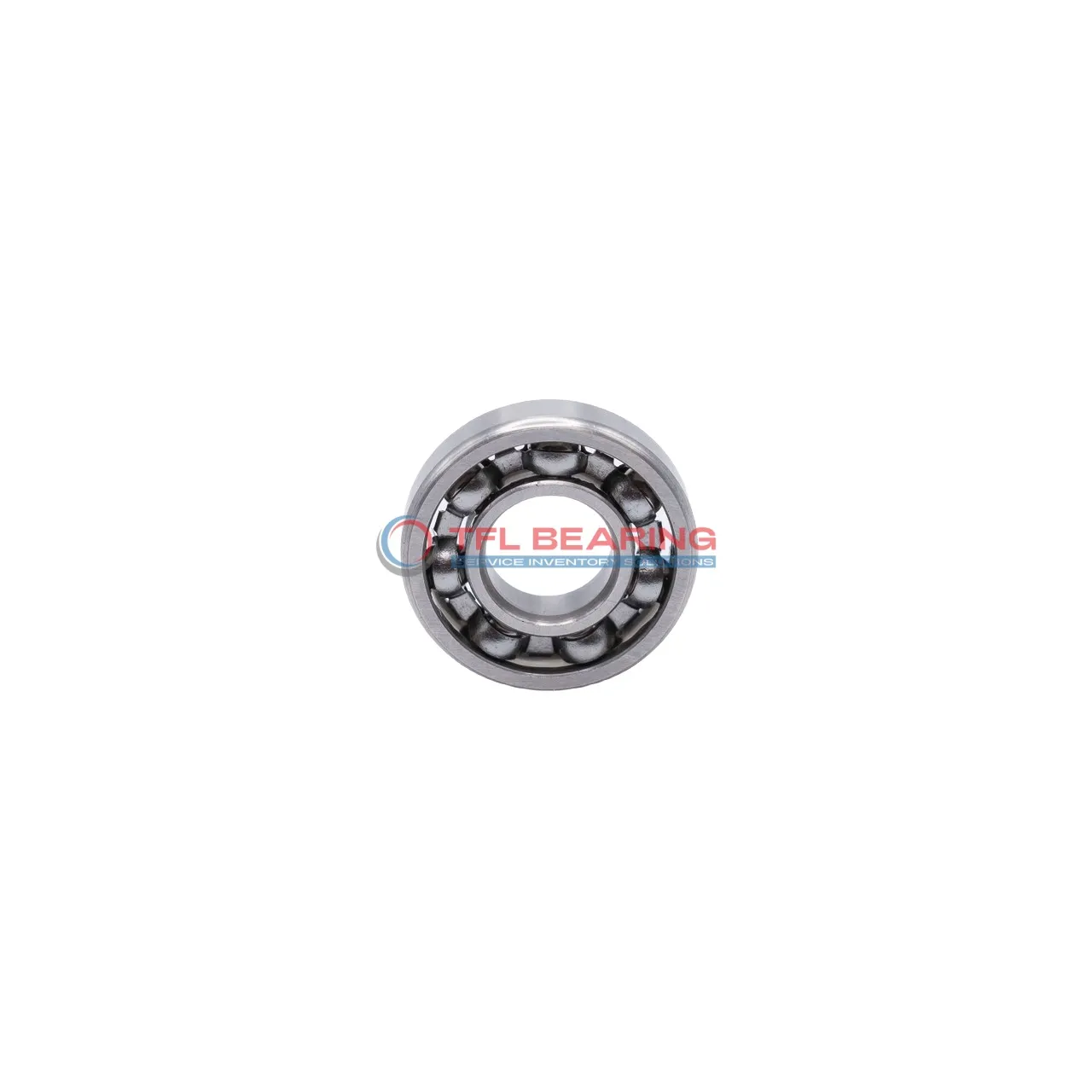

Stainless Steel Deep Groove Ball Bearings W 6009

Stainless Steel Deep Groove Ball Bearings W 6009

The W 6009 is a stainless steel deep groove ball bearing with a 45mm bore and 75mm outer diameter, designed for radial loads. It handles dynamic loads up to 4092 lbf and operates smoothly at speeds up to 12,000 RPM.

Its open design allows for easy lubrication, while the all-stainless steel construction ensures corrosion resistance. The bearing works well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like food processing or marine equipment where rust resistance is key.

Weighing 0.22kg, it offers a good balance of strength and lightness. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6009
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 75 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 4092 lbf
  • Static Radial Load 3372 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.22 kg
Stainless Steel Deep Groove Ball Bearings W 6009 dimension drawing
Download DWG Download PDF

Features

Performance Features of W 6009 Bearing

W 6009 Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.

Its single-row design ensures smooth radial load handling, with a dynamic load capacity of 4092 lbf.

The open seal type allows for easy lubrication, enhancing performance in various applications.

With a maximum speed of 12,000 rpm, it delivers reliable operation under demanding conditions.

Application

Industrial Uses of W 6009 Bearing
W 6009 Bearing is commonly used in industrial machinery like pumps and compressors, where its stainless steel construction resists corrosion in harsh environments. The open design allows for easy lubrication, extending service life in high-load conditions.

Where Is W 6009 Bearing Used?
In automotive applications, W 6009 Bearing fits well in electric motors and alternators, providing reliable radial load support. Its metric dimensions make it a versatile choice for various vehicle models.

Perfect Fit for Automation: W 6009 Bearing
For robotic arms and automated systems, W 6009 Bearing offers smooth rotation and low friction. The stainless steel materials ensure durability even in continuous operation.

Medical vs Industrial: Where W 6009 Bearing Excels
In medical devices like centrifuges, W 6009 Bearing’s precision and cleanliness are key. Meanwhile, in industrial settings, it handles heavy radial loads with ease.

Consumer Electronics and W 6009 Bearing
W 6009 Bearing can be found in household appliances like washing machines, where its quiet operation and durability are appreciated. The stainless steel build also resists rust in humid conditions.
