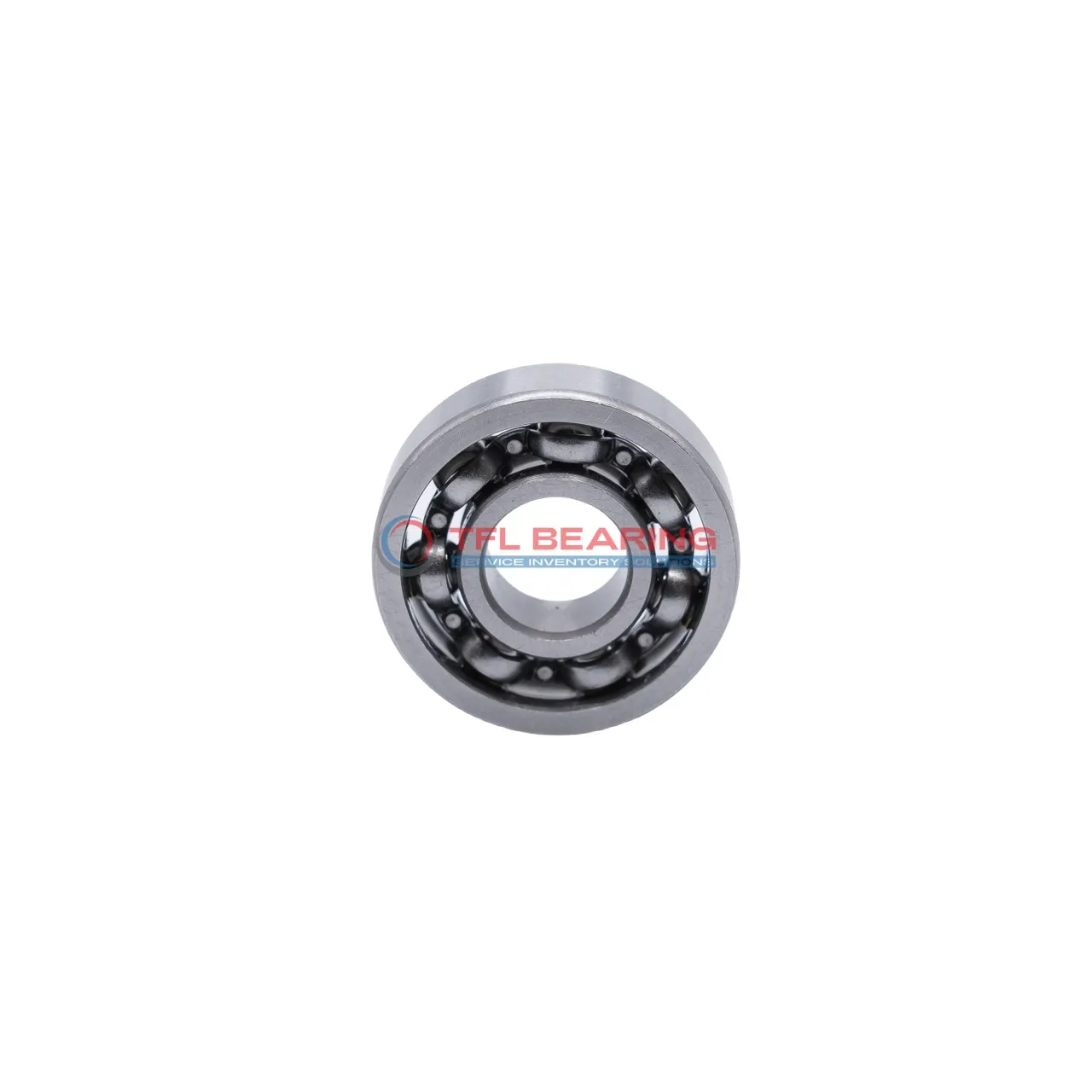

Stainless Steel Deep Groove Ball Bearings W 61707

Stainless Steel Deep Groove Ball Bearings W 61707

The W 61707 is a compact stainless steel deep groove ball bearing, measuring 35mm in bore and 44mm in outer diameter, with a slim 5mm width. Its all-stainless construction ensures good corrosion resistance and durability.

It handles radial loads up to 238 lbf and can spin at speeds up to 19,000 RPM, making it suitable for fast-moving applications. The open design allows for easy lubrication if needed.

With a standard P0 tolerance and CN radial clearance, this bearing offers reliable performance in various conditions. It works in temperatures from -30°C to 120°C.

Weighing just 14 grams, it’s ideal for lightweight machinery or equipment where space is limited. Compliant with RoHS and REACH standards, it’s a safe choice for many industries. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61707
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 44 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 238 lbf
  • Static Radial Load 206 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 19000 rpm
  • Weight 0.014 kg
Stainless Steel Deep Groove Ball Bearings W 61707 dimension drawing
Download DWG Download PDF

Features

What Makes W 61707 Bearing Suitable for High-Temperature Applications?

W 61707 Bearing is constructed entirely from stainless steel, making it resistant to high temperatures up to 120°C.
Its single-row deep groove design ensures smooth radial load handling, with a dynamic load capacity of 238 lbf.

The open seal type allows for easy lubrication, enhancing its performance in demanding conditions.
With a maximum speed of 19,000 rpm, it combines durability and efficiency for various applications.

Application

Industrial Uses of W 61707 Bearing
W 61707 Bearing is commonly used in small industrial machinery, such as compact pumps and light-duty gearboxes, where its stainless steel construction offers good corrosion resistance. The open design ensures easy lubrication access, extending service life in dusty environments.

Where Is W 61707 Bearing Used?
In automotive applications, W 61707 Bearing fits well in auxiliary systems like alternators and small electric motors, thanks to its precise radial load handling. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: W 61707 Bearing
For automation equipment, W 61707 Bearing works smoothly in robotic joints and conveyor guides, where low friction and reliability are key. The thin 5mm width saves space in tightly designed mechanisms.

Medical vs Industrial: Where W 61707 Bearing Excels
In medical devices, W 61707 Bearing’s stainless steel material ensures hygiene in equipment like dental handpieces. Meanwhile, its durability also suits food processing machinery where frequent washdowns occur.

Consumer Electronics Applications of W 61707 Bearing
W 61707 Bearing can be found in household gadgets like high-speed blenders, where its quiet operation and compact size are advantages. The corrosion-resistant materials prevent rust even in humid kitchen environments.
