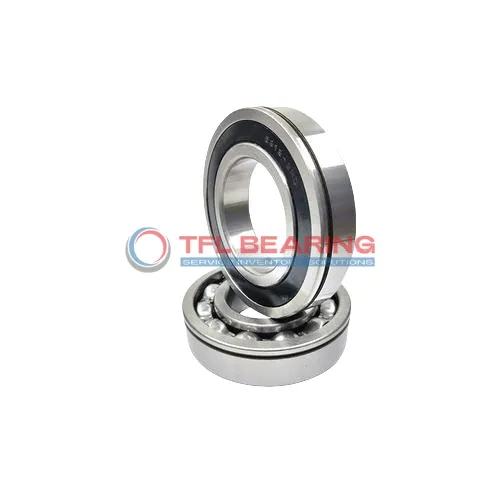

Snap Ring Groove Ball Bearings 6202-2ZN/C3 HT51

Snap Ring Groove Ball Bearings 6202-2ZN/C3 HT51

The 6202-2ZN/C3 HT51 is a compact snap ring groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and can spin at speeds up to 20,000 RPM.

Its shielded design keeps dirt out while the snap ring groove ensures a secure fit in housings. The C3 radial clearance allows for slight thermal expansion, making it reliable in varying temperatures.

This bearing is ideal for applications like electric motors or small machinery where space is limited. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it operates smoothly from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2ZN/C3 HT51
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 35 mm
  • Width Of Snap Ring 1.35 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 45 g
  • Price（$） 2.63
Snap Ring Groove Ball Bearings 6202-2ZN/C3 HT51 dimension drawing
Download DWG Download PDF

Features

How Does 6202-2ZN/C3 HT51 Bearing Reduce Friction?

6202-2ZN/C3 HT51 Bearing features shielded design and chrome steel construction, ensuring smooth operation with minimal friction.

The snap ring groove on the outer ring provides secure positioning, reducing unnecessary movement and wear.

With a dynamic radial load capacity of 1812 lbf, it handles demanding applications efficiently.

Its ABEC 1 tolerance and C3 radial clearance offer reliable performance in various conditions.

Application

Industrial Uses of 6202-2ZN/C3 HT51 Bearing
6202-2ZN/C3 HT51 Bearing is commonly used in conveyor systems, where its shielded design helps keep out dust and debris.
The snap ring groove feature makes installation and removal straightforward, saving time during maintenance.

Where Is 6202-2ZN/C3 HT51 Bearing Used?
You’ll often find 6202-2ZN/C3 HT51 Bearing in electric motors, thanks to its ability to handle high speeds smoothly.
Its chrome steel construction ensures durability, even in demanding industrial environments.

Built for Heavy-Duty Use: 6202-2ZN/C3 HT51 Bearing
6202-2ZN/C3 HT51 Bearing works well in agricultural machinery, where it handles radial loads reliably.
The C3 clearance allows for slight misalignment, making it adaptable to various setups.

Automotive vs Industrial: Applications of 6202-2ZN/C3 HT51 Bearing
In automotive applications, 6202-2ZN/C3 HT51 Bearing supports components like alternators and water pumps.
For industrial use, it’s a go-to choice for pumps and compressors due to its balanced performance.

Perfect Fit for Automation: 6202-2ZN/C3 HT51 Bearing
6202-2ZN/C3 HT51 Bearing is ideal for robotic arms, where precision and smooth operation are key.
The shielded seals help extend its lifespan by protecting against contaminants in automated environments.
