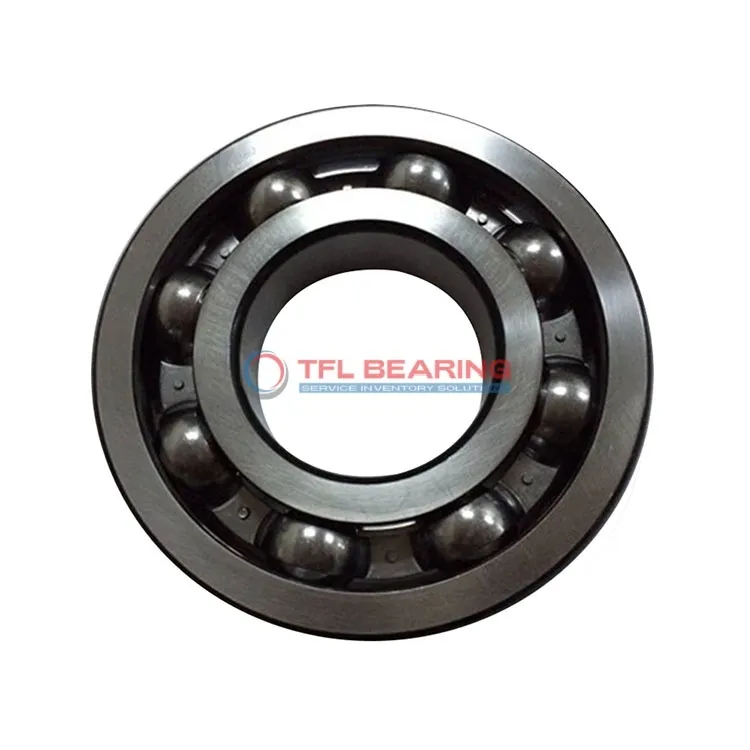

Single Row Deep Groove Ball Bearings 6207 TN9/C3

Single Row Deep Groove Ball Bearings 6207 TN9/C3

The 6207 TN9/C3 is a single-row deep groove ball bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel for reliable performance. It supports radial loads up to 5778 lbf and operates smoothly at speeds reaching 9200 RPM.

Its open design and nylon cage reduce friction, making it efficient for various applications. The bearing works well in temperatures from -30°C to 120°C, ensuring versatility in different environments.

With a C3 radial clearance, it accommodates slight misalignments and thermal expansion. This model is interchangeable with SKF bearings, offering a cost-effective replacement option.

Ideal for machinery like electric motors or pumps where radial load handling is key. Weighing 288g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207 TN9/C3
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Max Speed 9200 rpm
  • Weight 288 g
  • price（$） 4.581
Single Row Deep Groove Ball Bearings 6207 TN9/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6207 TN9/C3 Bearing

6207 TN9/C3 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 5778 lbf.
The nylon cage ensures smooth operation and reduces noise, making it suitable for various applications.

With a maximum speed of 9,200 rpm, it delivers reliable performance in demanding conditions.
Its C3 radial clearance allows for thermal expansion, ensuring consistent operation.

The open design simplifies maintenance, while the chrome steel construction resists wear.
Operating between -30°C to 120°C, it adapts well to different environments.

Application

Common Applications of 6207 TN9/C3 Bearing
6207 TN9/C3 Bearing is widely used in industrial machinery, such as electric motors and pumps, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6207 TN9/C3 Bearing fits well in alternators and wheel hubs, providing reliable performance under varying loads. Its chrome steel construction ensures durability even in demanding driving conditions.

For home appliances like washing machines, 6207 TN9/C3 Bearing offers smooth and quiet operation. The nylon cage reduces friction, enhancing the lifespan of the bearing in everyday use.

Where Is 6207 TN9/C3 Bearing Used?
You’ll often find 6207 TN9/C3 Bearing in conveyor systems, where its radial load capacity keeps things running smoothly. The C3 clearance also accommodates thermal expansion in continuous operations.

In robotics, 6207 TN9/C3 Bearing supports joints and moving parts, thanks to its balanced performance. The metric sizing ensures compatibility with a range of automated equipment.

Built for Heavy-Duty Use: 6207 TN9/C3 Bearing
6207 TN9/C3 Bearing excels in agricultural machinery, handling dust and heavy loads with ease. Its robust design makes it a go-to for tractors and harvesters.

In HVAC systems, 6207 TN9/C3 Bearing ensures reliable fan operation, even in extreme temperatures. The chrome steel rings resist wear, reducing maintenance needs.

Light-Duty vs Heavy-Duty: Best Uses for 6207 TN9/C3 Bearing
For light-duty tasks like office printers, 6207 TN9/C3 Bearing provides quiet and efficient performance. The nylon cage minimizes noise, ideal for quiet environments.

In heavy-duty scenarios like construction equipment, 6207 TN9/C3 Bearing withstands shocks and vibrations. Its high dynamic load rating ensures longevity in tough conditions.
