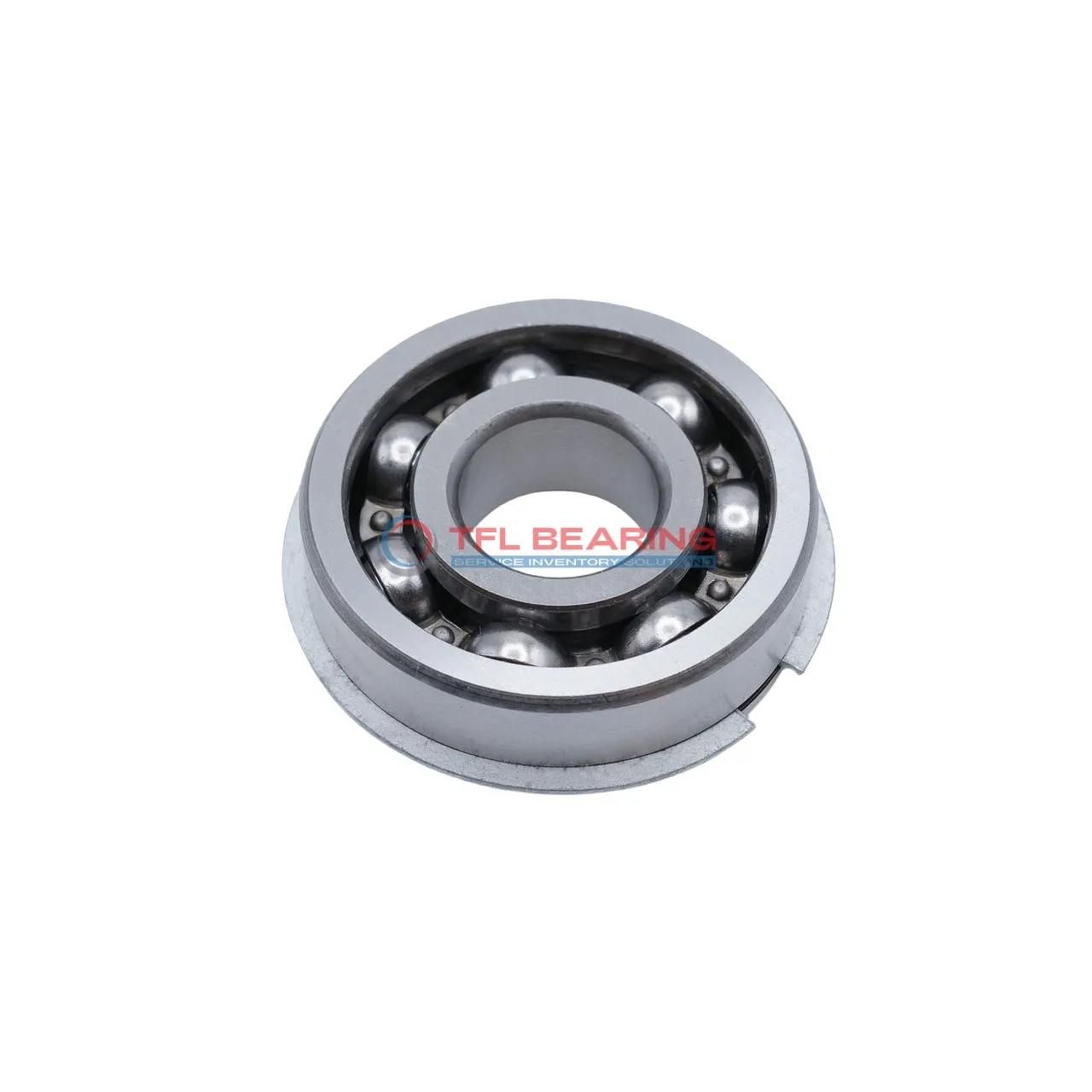

Snap Ring Groove Ball Bearings 6013NRJEM

Snap Ring Groove Ball Bearings 6013NRJEM

The 6013NRJEM is a snap ring groove ball bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6857 lbf and operates smoothly at speeds up to 6700 RPM.

Its single-row design and open seal make it easy to maintain, while the snap ring ensures secure fitting in housings. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads and secure mounting are key.

With a compact width of 18mm and snap ring diameter of 106.5mm, it’s a space-saving solution. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013NRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015 mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015 mm to 0
  • Width 18 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 106.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 5665 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Price（$） 21

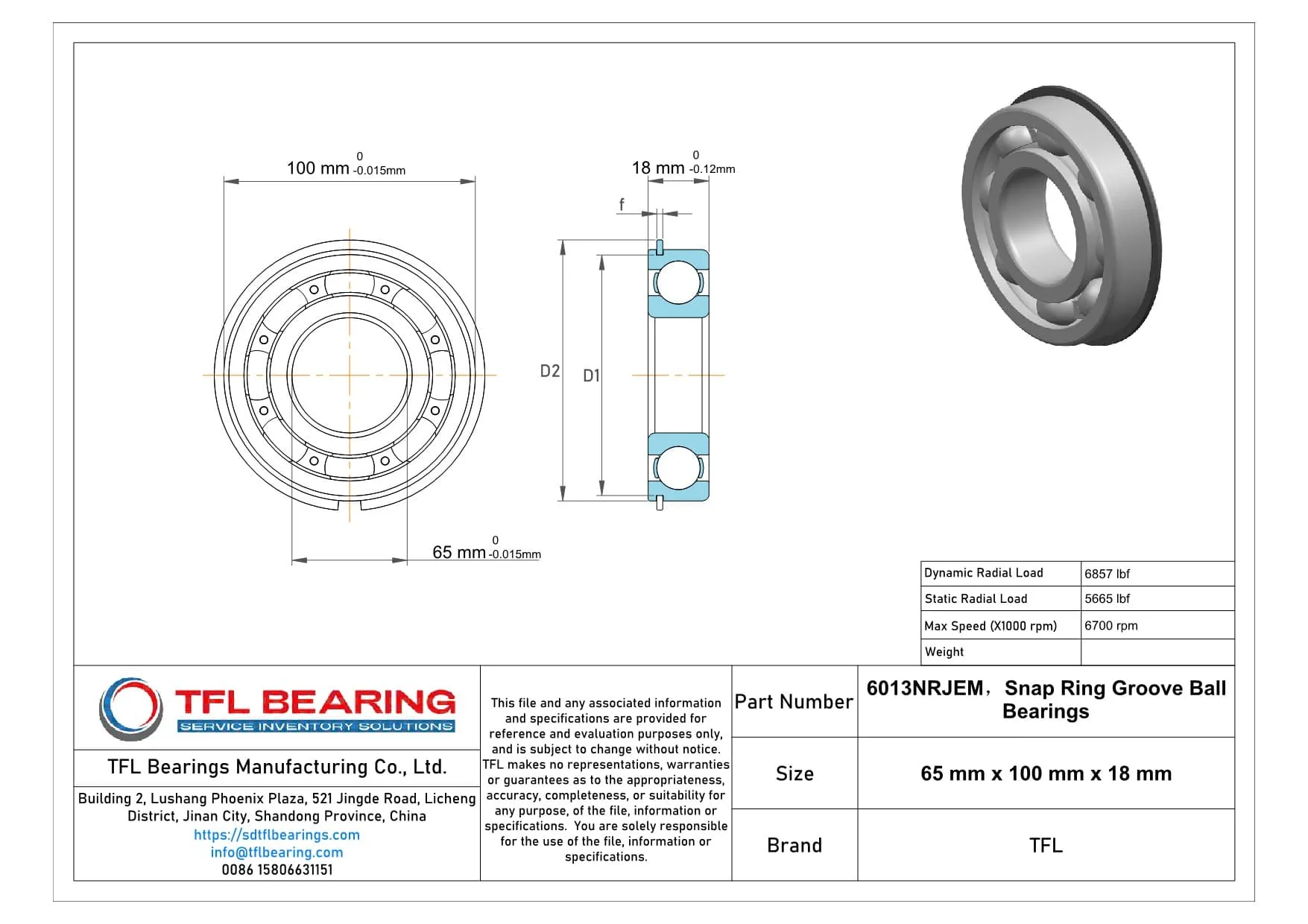

Snap Ring Groove Ball Bearings 6013NRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6013NRJEM Bearing Reduce Friction?

6013NRJEM Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The single-row design and snap ring groove provide stability, making it suitable for radial loads.

With a dynamic radial load capacity of 6857 lbf, it handles demanding applications efficiently.
Its ABEC 1 tolerance class ensures consistent performance and reliability.

The open seal type allows for easy lubrication, maintaining optimal performance.
6013NRJEM Bearing operates smoothly at speeds up to 6,700 rpm.

Application

Common Applications of 6013NRJEM Bearing
In industrial settings, 6013NRJEM Bearing is commonly used in conveyor systems and machine tools, where its snap ring groove ensures secure mounting. The open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6013NRJEM Bearing Used?
You’ll find 6013NRJEM Bearing in automotive applications like electric motors and gearboxes, where its radial load capacity handles high-speed rotations smoothly. The chrome steel construction offers durability under constant use.

Built for Heavy-Duty Use: 6013NRJEM Bearing
This bearing fits well in automation equipment such as robotic arms, thanks to its precise tolerances and reliable performance. The snap ring feature adds stability during high-vibration operations.

Medical vs Industrial: Where 6013NRJEM Bearing Excels
In medical devices like imaging equipment, 6013NRJEM Bearing provides quiet and consistent operation. For industrial uses, its robust design handles heavy loads in machinery like pumps and compressors.
