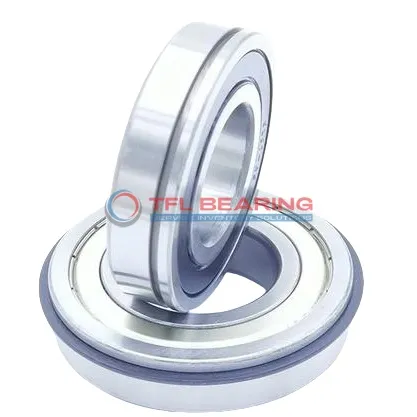

Snap Ring Groove Ball Bearings 6013-ZNR/C3

Snap Ring Groove Ball Bearings 6013-ZNR/C3

The 6013-ZNR/C3 is a shielded ball bearing with a 65mm bore and 100mm outer diameter, crafted from durable chrome steel. It supports radial loads up to 6857 lbf and operates smoothly at speeds up to 6700 RPM.

Its snap ring groove on the outer ring ensures secure fitting, while the C3 radial clearance allows for thermal expansion. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads and secure mounting are key.

Weighing 430g, it’s a sturdy option for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013-ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 106.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 5665 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 430 g
  • Price（$） 19.74
Snap Ring Groove Ball Bearings 6013-ZNR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6013-ZNR/C3 Bearing Reduce Friction?

6013-ZNR/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

Its shielded design keeps contaminants out, maintaining consistent performance over time.

The snap ring on the outer ring provides secure positioning, reducing unnecessary movement.

With a dynamic radial load capacity of 6857 lbf, it handles demanding applications efficiently.

Application

Industrial Uses of 6013-ZNR/C3 Bearing
This bearing is commonly used in conveyor systems and industrial gearboxes, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting in high-vibration environments.

How Does 6013-ZNR/C3 Bearing Improve Performance?
In automotive applications like alternators and pumps, it reduces friction for smoother operation. The C3 clearance allows for thermal expansion, making it suitable for varying temperatures.

Built for Heavy-Duty Use: 6013-ZNR/C3 Bearing
Its chrome steel construction handles radial loads well in machinery like agricultural equipment. The snap ring groove adds stability during heavy use.

Medical vs Industrial: Where 6013-ZNR/C3 Bearing Excels
While not typically used in medical devices, it’s reliable for industrial tools like compressors. The shielded design offers basic protection against dust in workshop settings.

Practical Applications of 6013-ZNR/C3 Bearing
You’ll find it in electric motors and fans, where consistent performance matters. The metric sizing makes it easy to replace in European-made equipment.
