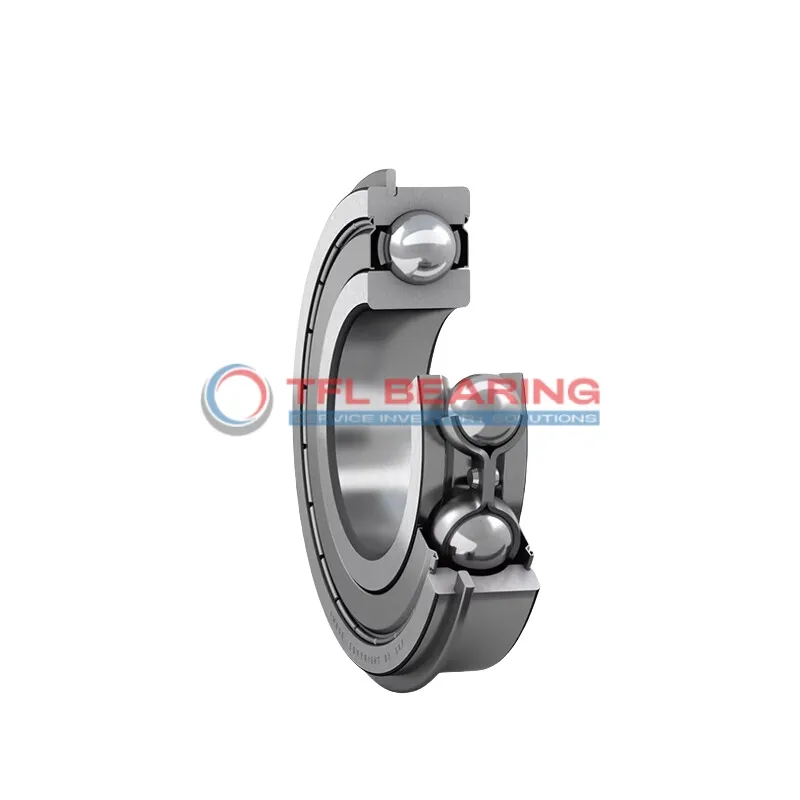

Snap Ring Groove Ball Bearings 6013-2ZNR/C3

Snap Ring Groove Ball Bearings 6013-2ZNR/C3

The 6013-2ZNR/C3 is a shielded ball bearing with a 65mm bore and 100mm outer diameter, measuring 18mm in width. Made from chrome steel, it’s built to handle radial loads up to 6857 lbf and speeds of 6700 RPM.

Its snap ring groove on the outer ring ensures secure fitting, while the shielded design keeps dirt out for longer service life. The C3 clearance allows for slight thermal expansion, making it reliable under varying temperatures.

This bearing suits applications like electric motors or pumps where radial loads are common. It’s interchangeable with SKF models, offering a practical replacement option.

Weighing 430g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it operates smoothly in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013-2ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 106.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 5665 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 430 g
  • Price（$） 19.74
Snap Ring Groove Ball Bearings 6013-2ZNR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6013-2ZNR/C3 Bearing Reduce Friction?

6013-2ZNR/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The shielded design protects against contaminants, maintaining performance in various conditions.
With a dynamic radial load capacity of 6857 lbf, it handles heavy loads efficiently.
Its snap ring groove provides secure mounting, enhancing stability during high-speed applications.

Application

Common Applications of 6013-2ZNR/C3 Bearing
6013-2ZNR/C3 Bearing is widely used in industrial machinery, especially in conveyor systems and electric motors, where its shielded design helps keep out contaminants. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

In automotive applications, 6013-2ZNR/C3 Bearing supports components like alternators and water pumps, providing reliable radial load handling. Its C3 clearance allows for slight thermal expansion, which is useful in engine compartments.

For automation equipment, 6013-2ZNR/C3 Bearing’s chrome steel construction offers durability in robotic arms and assembly lines. The shielded seals help maintain smooth operation even in dusty conditions.

In household appliances, 6013-2ZNR/C3 Bearing can be found in washing machines and fans, where its compact size and reliable performance are valued. The snap ring simplifies installation, reducing maintenance time.
