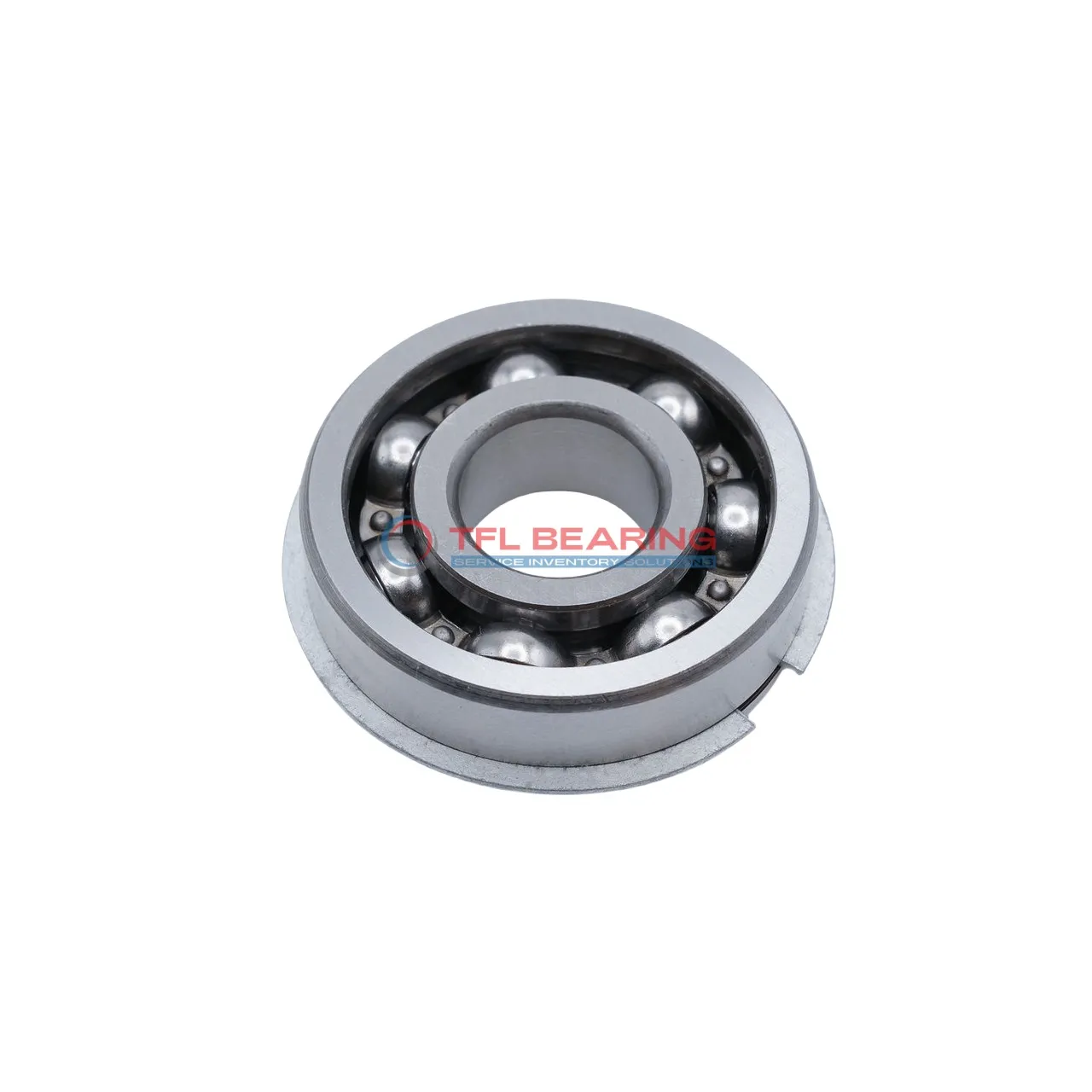

Snap Ring Groove Ball Bearings 6012 NR/C4

Snap Ring Groove Ball Bearings 6012 NR/C4

The 6012 NR/C4 is a snap ring groove ball bearing with a 60mm bore and 95mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6902 lbf and operates smoothly at speeds up to 9500 RPM.

Its open design and snap ring feature ensure easy installation and secure positioning in housings. The C4 radial clearance allows for slight thermal expansion, making it versatile in varying conditions.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where radial loads and secure mounting are key.

Weighing 0.43kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s suitable for temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6012 NR/C4
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 101.6 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C4
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6902 lbf
  • Static Radial Load 5216 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.43 kg
  • Price（$） 15.39

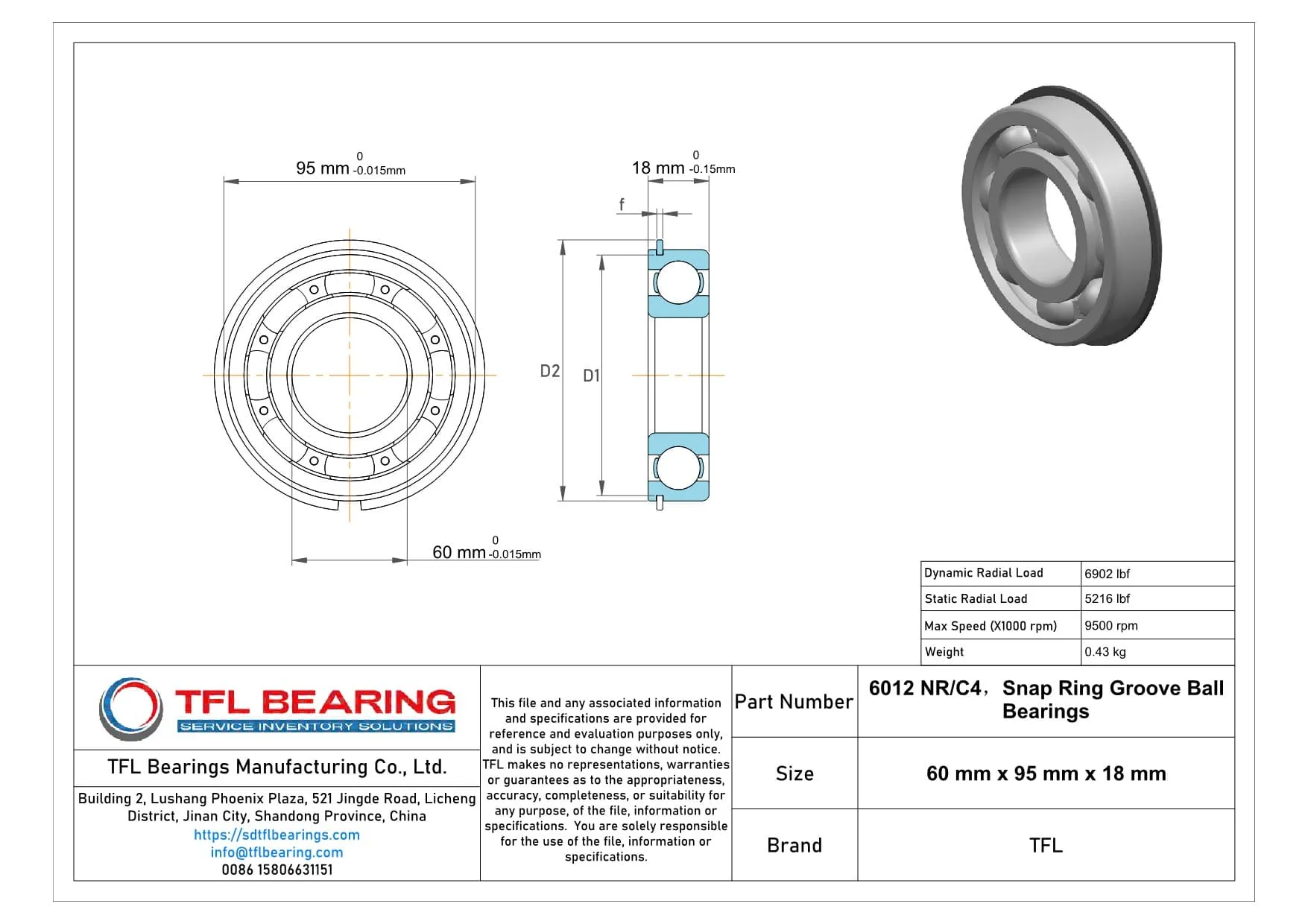

Snap Ring Groove Ball Bearings 6012 NR/C4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6012 NR/C4 Bearing

6012 NR/C4 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.

Its dynamic radial load capacity reaches 6902 lbf, ensuring reliable performance in various applications.

The snap ring groove on the outer ring provides secure mounting, enhancing stability during operation.

With a maximum speed of 9,500 rpm, it delivers a balance of durability and efficiency.

Application

Industrial Uses of 6012 NR/C4 Bearing
This bearing is commonly used in conveyor systems and industrial fans, where its snap ring design ensures secure outer ring positioning. The C4 radial clearance allows for thermal expansion in high-speed operations.

Where Is 6012 NR/C4 Bearing Used?
You’ll find it in electric motors and gearboxes, where its chrome steel construction handles radial loads efficiently. The open seal design simplifies relubrication in dusty environments.

Built for Heavy-Duty Use: 6012 NR/C4 Bearing
Ideal for agricultural machinery, 6012 NR/C4 Bearing withstands vibration while maintaining alignment. Its ABEC 1 tolerance provides reliable performance without excessive precision costs.

Automotive vs Industrial: Applications of 6012 NR/C4 Bearing
In vehicles, it supports alternators and water pumps, while factory settings use it for pulley systems. The 95mm outer diameter fits standard housings across both sectors.

Perfect Fit for Automation: 6012 NR/C4 Bearing
Robotic arms benefit from 6012 NR/C4 Bearing’s consistent rotation and snap ring security. The 18mm width offers space efficiency in compact automated cells.
